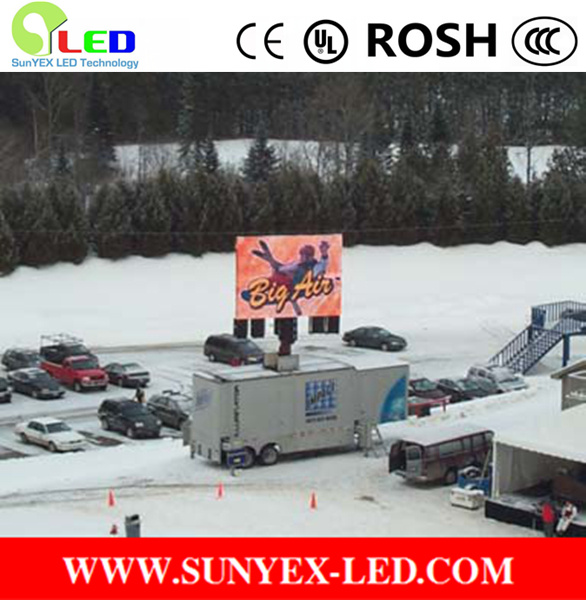

P6 LED Truck Display
| Price: |
US $ 2000/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SY-OF6-3C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refresh Rate: |
2000 Hz |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
ETL |
| Pixel Pitch: |
6mm |
| Pixel Density: |
2828/Sqm |
Product Description
P6 LED Truck Display
| LED |
| COLOR | WAVE LENGTH | BRIGHTNESS(mcd) | Viewing Angle H./V. |
| Red | 620 | 800 | 140°/140° |
| Green | 520 | 2100 | 140°/140° |
| Blue | 470 | 480 | 140°/140° |
| PIXEL |
| Pitch | 6 |
| Model | SY-OF6-3C |
| Configuration | 1R | 1G | 1B |
| MODULE |
| Specs | Width | Height | Total |
| Configuration | 32 | pixels | 16 | pixel | 512 | pixels |
| Size | 256 | mm | 128 | mm | 32,768 | mm² |
| CABINET |
| Configuration | 96 | pixel | 96 | pixel | 9,216 | pixels |
| Size | 768 | mm | 768 | mm | 589,824 | mm² |
| Weight(KG) | 24 |
| Consumption(max)(W/M²) | 800 |
| SCREEN |
| Brightness | >6000 nits |
| Color Depth | 12 Bit |
| Brightness Control | By software |
| Colors | 16.7 million |
| Viewing Distance | >10m |
| Gray Scale Rectificaiton | 4096 grade |
| Power Supplier | 220V/40MA |
| Drive Mode | 1/4 scan |
| Refresh Rate | 2000 HZ |
| Control Mode | Synchronization control |
| Lifetime | 100,000 Hours |
| Running Temperature | -25ºC ~ +50ºC |
| Humidity | 10% ~90% |
| Singal Available | DVI,S-VIDEO, RGB, VGA and ETC. |
| Running Files | Text, Animation, Picture, Video and etc |
| Water Proof | IP65 |
| Warranty | 3 Years |
1 Pice Term EXW
2 Payment Term T/T: 30% Down Payment before Production, the Balance before Shipment.
3 Software English
4 User Manual English
5 Installation Instruction Available
6 On-Site Asistant Two Engineers Available
7 Training Available either on-site or at SunYEX Factory
8 Warranty Three Years In-house Factory Repair/Replacement
9 Mean Time 20 Working Days Since Down Payment
10 Quote Validity 30 Days
