| Prod Model: |
SD-P10-Y-3*1-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Brand Name: |
Poosled |
| Model Number: |
SD-P10-Y-3X1 |
| Usage: |
Semi-Outdoor |
| Pixels: |
P10 |
| Module Size: |
320X160 Mm |
| Screen Size: |
990X190X55 Mm |
| Package Size: |
1040X270X105mm |
| Nw(Kg): |
4.8kg |
| Gw(Kg): |
5.4kg |
| Display Function: |
Text Display |
| Pixel Pitch: |
10mm |
| Pixel Density: |
10000 dots/m² |
| Scanning Mode: |
1/4 Scan |
| Certification: |
RoHS |
| IP Rating: |
IP53 |
| Pixel Configuration: |
1y |
| System Operating Platform: |
Winxp/Win7/Win8 |
| Display Type: |
LED Single Yellow Display |
| Brightness: |
1600 |
Product Description

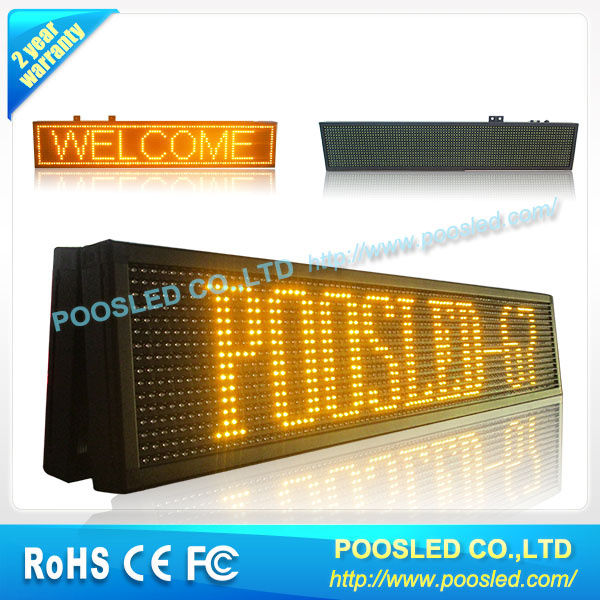

Semi-outdoor Message Scrolling LED DISPLAY
1. Display English or different characters as well as graphic symbols.
2.41 methods of displaying your message (Cyclic, Scroll up, Scroll down, Open to Center, Open from Right, Open from left, etc. )
3.9 Fonts, each with regular, bold and wide mode. User can add or modify the fonts. 67 pieces of other European characters
4. Built-in timer to power on/off during the day
5. Built-in real time clock. 4 kinds of time and 5 kinds of date formats. Customized time/date format are also available
6. With memory capability of 16k bytes for text, 24k bytes for graphics, max. 250 text files and 250 graphic files.
7.8 programmable display speeds
8.8 pause periods from 0 to 60 seconds
9. Count-down/count-up function
10. Segmented display capability to allow separate control of sections of the display
11. Sequencing multiple messages. Built-in scheduler for up to 30 tasks. 3 priority setting enables scheduling by week, month or year.
12. Duplex function allows user read data from one sign by a PC and copy it to another sign
13. Up to 128 units can network via RS232 communication
14. Interface of the managing software can be in multiple languages
15. Low consumption
16. Fixing methods: Desk, wall or ceiling
17. Display Real Temperature (optional)
| SD-P10-Y-3*1 |
| Specifications |
| 1 | Sign's name | P10-Y Single color Led Sign |
| 2 | Item classification | led chips(Chimei for YELLOW) |
| 3 | Pixel pitch(mm) | 10 |
| 4 | Density(pixel/squ.m) | 10000 |
| 5 | Module size(mm) | 320*160 |
| 6 | Pixels(w*h) | 32*16 |
| 7 | Configuration | 1White |
| 8 | Led sign's size(mm) | 990*190*55MM |
| 9 | Resulution | 96*16 |
| 10 | Max. texts | characters,numbers |
| 11 | Display Color | Single color |
| 12 | Brightness | 3500-4000mcd |
| 13 | Brightness adjustment | use the software to adjust |
| 14 | Best viewing distance | 10-150m |
| 15 | Best viewing angle | horizontal:100-120 degree, vertical:30-60 degree |
| 16 | Average power consumption | 250w/squ.m |
| 17 | Max.power consumption | 400w/squ.m |
| 18 | Control mode | Asynchronous |
| 19 | Drive mode | 1/4 scan |
| 20 | PC operating system | win98,winxp,win2000,win7 etc.. |
| 21 | Control system | USB Control |
| 22 | Software | POWERLED TF-S5U |
| 23 | Frame rate | >60hz |
| 24 | Refresh rate | >180hz |
| 25 | Working temperature | storage:-40~+75C |
| 26 | Woking Voltage(AC) | 100-230V |
| 27 | Supply Voltage(DC) | 5V |
| 28 | Power(W) | 62W |
| 29 | Power Supply | Chenglian with CE certification |
| 30 | MTBF(Mean Time Between Failure) | >5000 hours |
| 31 | | >100000 hours |
| 32 | Frame(Cabinet) | Aluminum frame |
| 33 | Using environment | Semi-outdoor |
