| Prod Model: |
PH16 MM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Lamp: |
DIP346 Esptar Chip |
| Module Size: |
256 Mm X 128 Mm |
| Cabinet Size: |
1024 Mm X 768 Mm |
| Cabinet Weight: |
45 Kg.PC |
| Guarantee: |
2 Year with Parts |
| Power Supplier: |
5 V 60A Changlian CE |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Density: |
3906 |
Product Description
Noveled Group Ltd is the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Detail specification:

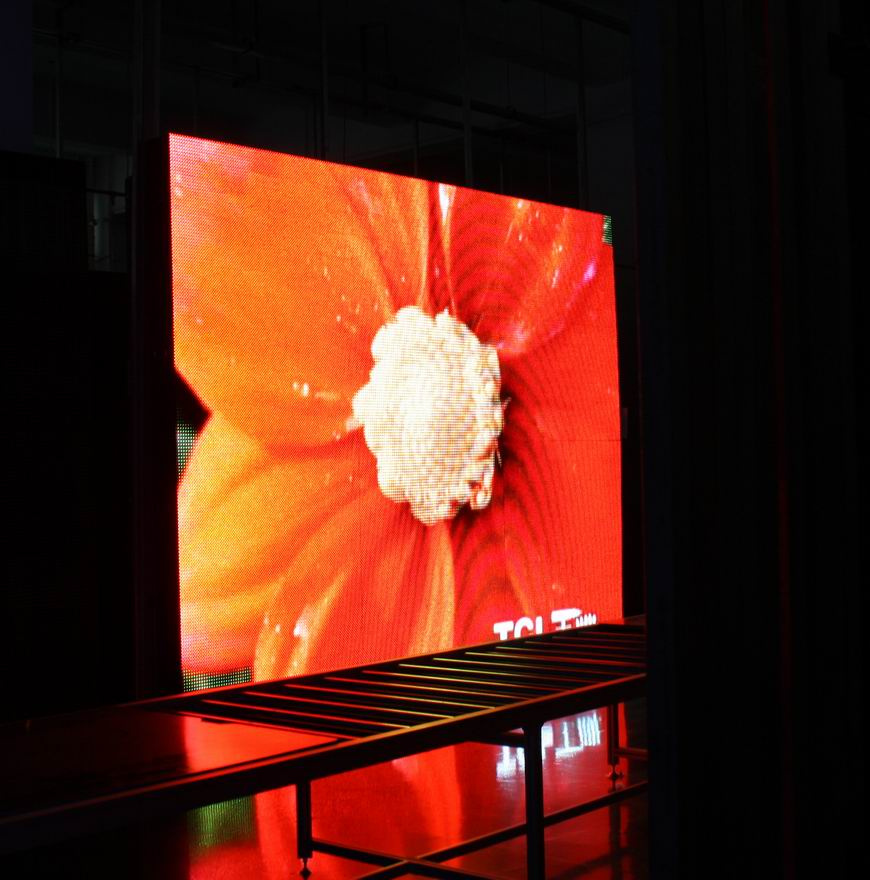

Model: pH16 outdoor full color LED display
1. Pixel
Pixel pitch: 16 mm
Pixel density: 3906 dots / sq. M.
Pixel configuration: 1R1G1B
LED specification: DIP346
2. Module
Module matrix (pixel dots): 16*8
Module size: 256*128 mm
Module power consumption: 35W
3. Cabinet
Cabinet matrix (pixel dots): 64*48
Cabinet size: 1024*768*120mm
Cabinet pixel density: 3072 dots
Protection level: IP65
Cabinet weight: 60kg
| Item | Outdoor DIP LED display |
| Pixel Pitch(mm) | 10mm | 12mm | 16mm | 20mm |
| Pixel density(/m2) | 10000 | 6944 | 3906 | 2500 |
| LED Type | DIP346 |
| Viewing angle: | H:120°,V:60° |
| Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
| Drive Method | 1/4 | Static |
| Color Depth(nits) | 16384 |
| Refresh Rate(Hz) | 2200 | 2800 |
| Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
| Cabinet Size(mm) | 960×960x178.5 | 1024×1024x178.5 | 1280×960x178.5 |
| Cabinet Material | Steel |
| Cabinet weight(kg) | 50 | 55 | 68 |
| Voltage | 110/220V |
| Average.power(W / m2) | 250 | 170 | 250 | 220 |
| Max.power(W / m2) | 750 | 500 | 750 | 650 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |
Feature :1. Cabinet structure is with light weight and standardization: adopting high strength metal process, achieving high precision, light weight and other outstanding features;2 .Energy Saving≥50%, Environment Protectionp8 Dip : 6500 RMB P8 SMD3535 :7200 RMB P10 Dip : 4500 RMB P12 : 4200 RMB p16 ; 4000RMB P20 : 3500 RMB p25 : 3200 RMB 4. Main technical parameter
Best viewing distance: 14m
Best viewing angle: 110° (horizontal)
Max power consumption: 1000W / sq. M.
Control mode: Synchronization
Graphics card: DVI Graphics card
Drive mode: Static constant current drive
Exchange frame rate: ≥ 60Hz
Refresh rate: ≥ 400Hz
Grey grade: 4096 grade
White balance brightness: ≥ 6500CD/sq. M
Working environment temperature: -20-50
Working voltage: AC100V-240V, 50-60Hz
Brightness adjusted way: Manual, 256 level; Auto, 8 level.
MTBF: ≥ 10, 000 hours
Screen lifetime: 100 thousand hours
Blind DOT rate: 0.0003
Computer operating system: WIN98, WINXP, WIN2000, etc.
Video signal: RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control system: DVI Graphics card + sending card + receiving card
PC display mode: 1024*768
Software: LED studio
5. With CE, RoHS, FCC Certification, ISO 9002
