| Prod Model: |
LEDD-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Scope Of The Value: |
-1.9.9.9. ~ 9.9.9.9. |
| Display Type: |
Red LED Display |
| Accuracy: |
0.1% |
| Ingress Protection: |
IP65(When Mounted) |
Product Description

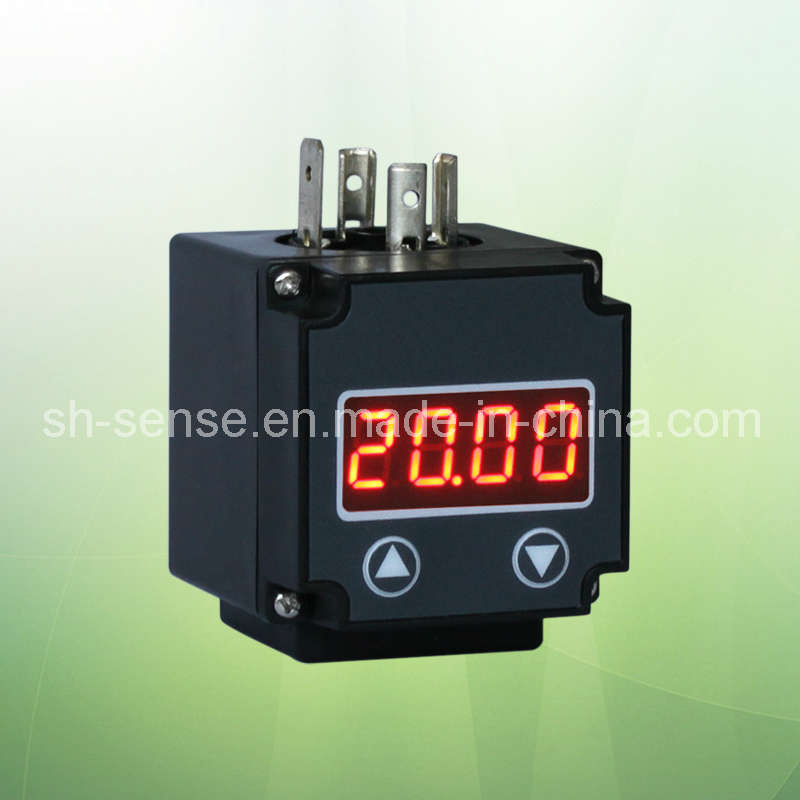

2-Wire Loop Powered LED Display LEDD-01
Specifications:
Sense series universal intelligent 2-wire LED display is fit for all of the transmitters and converters with 4-20mA 2-wire technology. The display can be adjusted by tow buttons. Following parameters can be programmed: Zero point, span, unit, decimal point, damping, and alarm point etc. Instead of the potentiometer. The actual value will expressed by the schedule. And it can replace all of the analog indicators in the market.
Performance:
*2-wire, no additional power supply required, just as traditional LCD display.
*High accuracy and stability
*Visible in the dark environment. 16 Bit ADC MCU inside.
*The scope of the value can be displayed on the LED is -1.9.9.9. ~ 9.9.9.9.
*LED can work at 3mA
*Two OPTO switch outputs.
|
Accuracy: |
0.10% |
|
Analogue signal: |
2-wire-system: 4-20mA |
|
Supply: |
Supplied by current loop; voltage drop: & le; 4.5V |
|
Short-circuit protection: |
Permanent |
|
Reverse polarity protection: |
no damage, but also no function |
|
Type: |
4-digit, red LED display, digit height 7 mm, digit width: 4.85 mm(angle 10& deg; ) |
|
Temperature: |
Ambient, storage and operation: -20~70& ordm; C |
|
Ingress protection: |
IP 65(when mounted) |
|
Color of housing: |
Black |
SENSE Instruments Co., Ltd.Is a professional high-tech company, which always specialize in researching, manufacture and sales temperature transmitter, pressure transmitter, digital circuit board, HART-protocol circuit board, and pressure sensors.We also take up with sales the high quality fittings for automation instruments.
We have strong ability of R&D.And we have researched and manufactured new type smart products, its capability has reached one-up level of the world.SENSE has know-how, and can provide OEM products, customizes to your specific requirements ensuring your success in the marketplace.
with the increasing market, some of the products are exported to Taiwan, Southeast Asia, Europe and other countries and regions.Along with the new products were developing ceaselessly and more and more products were pushed into the market, the trademark of SENSE was known by many customers.
