| Prod Model: |
LCDD-03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color Of Housing: |
Black |
| Weight: |
Approx. 28g |
| Ingress Protection: |
IP 65(When Mounted) |
| Digital Damping: |
0 to 100 S(Step 0.1 S) |
| Operating Temperature: |
-20 to 70c |
| Brand Name: |
Sense |
Product Description

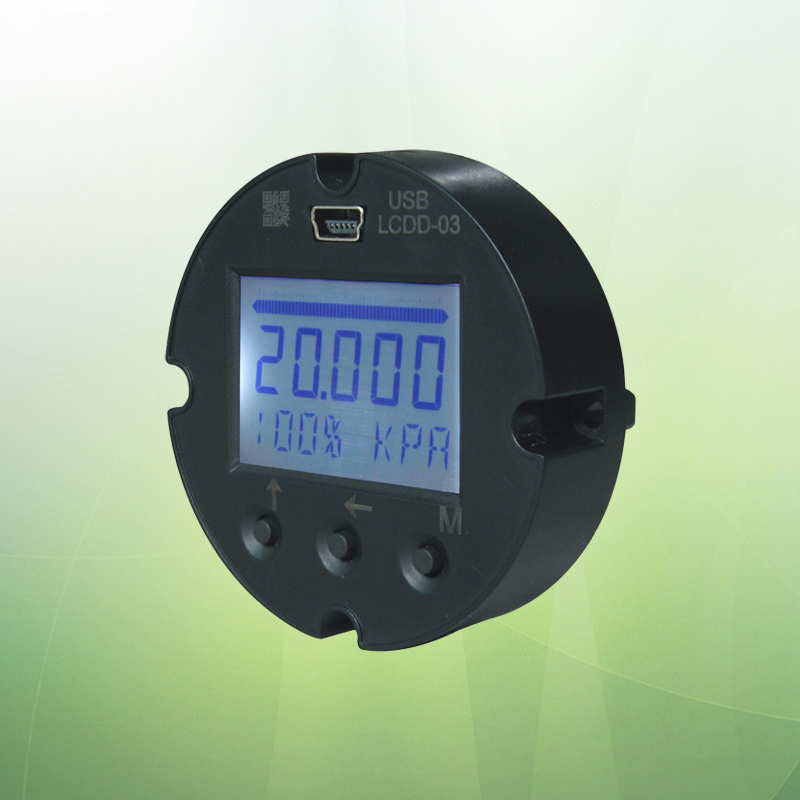

2-Wire Loop Powered LCD Display LCDD-03
Specifications:
1. With white backlight display, visible in the dark environment.
2. 2-wire, no additional power supply required
3. High accuracy and stability
4. Many kinds of units can be displayed, such as mA, us, pH, Mbar, ect. (Further versions are possible on request. )
5. 2 OPTO switches output
Performance:
* No additional power supply required
* Compact design
* Easy programming with Push buttons
* Reverse Polarity
* Low power consumption
* 16 Bit ADC MCU inside
* LCD can work at 3mA
* Many kinds of the units can be displayed
Technical data Display:
* Type: Visible range 32.5X22.5mm; 5-digit 7-segment main display, digit height 8mm, 8-digit 14-segment additional display, digit height 5mm; 52bars meter with 2% resolution
* Range: -9.9.9.9. To 9.9.9.9.9.
* LCD can work on 3mA
|
Accuracy: |
0.1%& plusmn; 1 digit |
|
Digital damping: |
0 to 100 s(step 0.1 s) |
|
Units: |
mA, us, ms, s, PH, & ordm; F, & ordm; C, PSI, MPa, bar, kPa, mbar, Pa, % etc. |
|
Supply: |
Not required, 4 to 20mA loop powered |
|
Voltage drop: |
& le; 3.1V |
|
Short-circuit protection: |
Permanent |
|
Reverse polarity protection: |
Max. current: approx. 200mA |
|
Ambient temperatures: |
Operating: -30 to 70& ordm; C Storage: -40 to 70& ordm; C |
|
Display housing: |
ABS |
|
Weight: |
Approx. 28g |
|
Ingress protection: |
IP 65(when mounted) |
|
Color of housing: |
Black |
