LED Curtain Display (LS-OC-P37.5)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
| Prod Model: |
LS-OC-P37.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
2, 500nits |
| Panel Size: |
600*600 Mm |
| Panel Weight: |
5.0kg |
| Resolution Per Panel: |
16X16 |
| Panel Material: |
Epoxy Paint Coated Aluminum Strip |
| Mounting System: |
Hanging |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Average Power Consumption: |
180W / m² |
| Certification: |
ETL |
| Pixel Pitch: |
37.5mm |
| Pixel Configuration: |
3in1 SMD |
| Pixel Density: |
711DOT/M&Sup2 |
Product Description

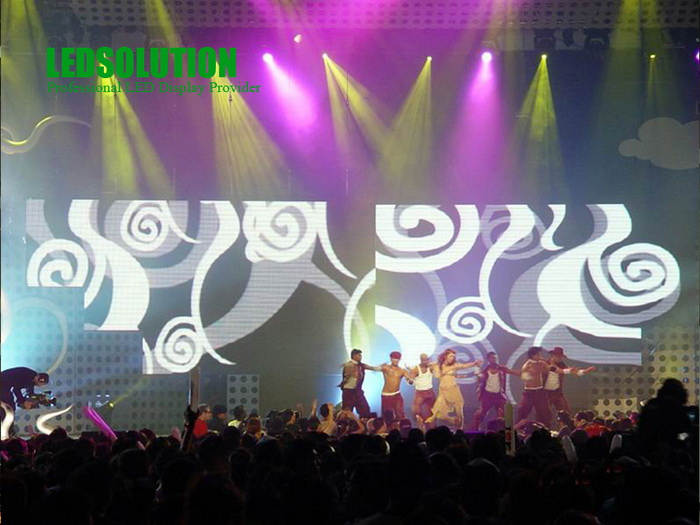

LED Curtain Display Screen, LED Curtains, curtain LED display, LED stage background, stage LED display, LED screen, LED signs:
Features of the Curtain LED Display:
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Easy maintenance
| Parameter | Unit | Value |
| Pitch | mm | 37.5 |
| Brightness | nits | 2, 500 |
| Color temperature | deg. K | 6, 500 |
| Viewing angle Horizontal (50% brightness) | deg. | 120(-60~ +60) |
| Viewing angle Vertical (50% brightness) | deg. | 120(-60~ +60) |
| Panel weight | kg | 5.0 |
| Panel width | mm | 600 |
| Panel height | mm | 600 |
| Panel depth | mm | 120 |
| Panel area | sq. m. | 0.36 |
| Panel material |
| Epoxy paint coated Aluminum Strip |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| International Protection | IP | IP65 |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel |
| 16x16 |
| Dot per panel |
| 256 |
| Dot per sq. meter |
| 711 |
| LED per sq. meter |
| 711 |
| Recommended minimum viewing distance | m | 28 |
| Drive Mode |
| Constant current drive Static |
| Colors |
| 16.7 millions |
| Grey scale (linear) | Levels | 256 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1, 000: 1 |
| Processing depth | bit | 12 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts | 72 |
| Input power (typical) | Watts | 44 |
| Lifetime (50% brightness) | Hours | ≥ 100, 000 |
| Red wavelength (dominant) | nm | 625 |
| Green wavelength (dominant) | nm | 525 |
| Blue wavelength (dominant) | nm | 470 |
| Panel input format |
| DVI |
| Mounting System |
| Hanging |
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
