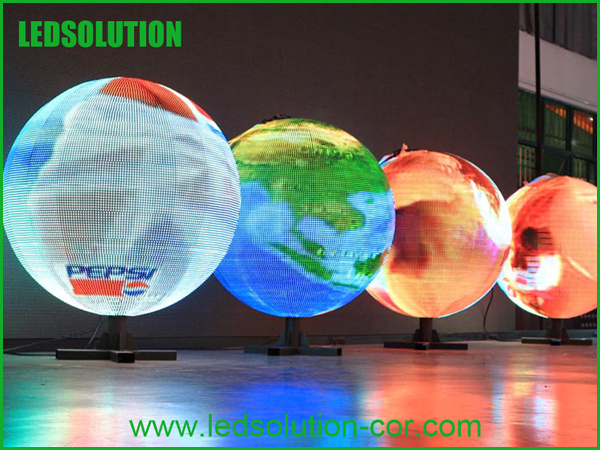

LED Ball Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
LS-BALL-P10-D1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1,800nits |
| Color Temperature: |
6,500deg. K |
| Viewing Angle: |
140/140 |
| Diameter: |
1,000mm |
| Mounting System: |
Hanging & Stand on Ground |
| Package: |
Flight Case |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
10mm |
| Pixel Density: |
10,000 dots / m² |
| System Operating Platform: |
WIN XP |
| Application: |
Stage Performance |
| IP Rating: |
IP43 |
| Certification: |
RoHS |
| Pixel Configuration: |
3in1 SMD |
Product Description
1.1meter diameter
2. Pitch 10mm
3.360degree viewing angle
4. Creative ball design
5. Light weight, easy remove
6. Excellent cooling design
| Parameter | Unit | Value |
| Pitch | mm | 10 |
| Brightness | nits | 1,800 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Net Weight | kg | 70 |
| Diameter | mm | 1,000 |
| Panel area | sq. m. | 0.4096 |
| Operating temperature range | deg. C | -30 to +60 |
| Material |
| Steel |
| Ingress protection (front/rear) |
| IP23 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3528 SMD |
| Dot per sq. meter |
| 10,000 |
| LED per sq. meter |
| 10,000 |
| Recommended minimum viewing distance | m | 7.6 |
| Recommended best viewing distance | m | 10~30 |
| Colors |
| 281 trillion |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 600 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/panel | 2,000 |
| Input power (typical) | Watts/panel | 800 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Controller |
| DB Star |
| Control way |
| Asynchronous & Synchronous |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Hanging & Stand on ground |
| Package |
| Flight case |
| Flight case size | m | 1.09*1.09*1.49 |
| Gross weight | kg | 310 |
| Volume Weight | kg | 370 |
