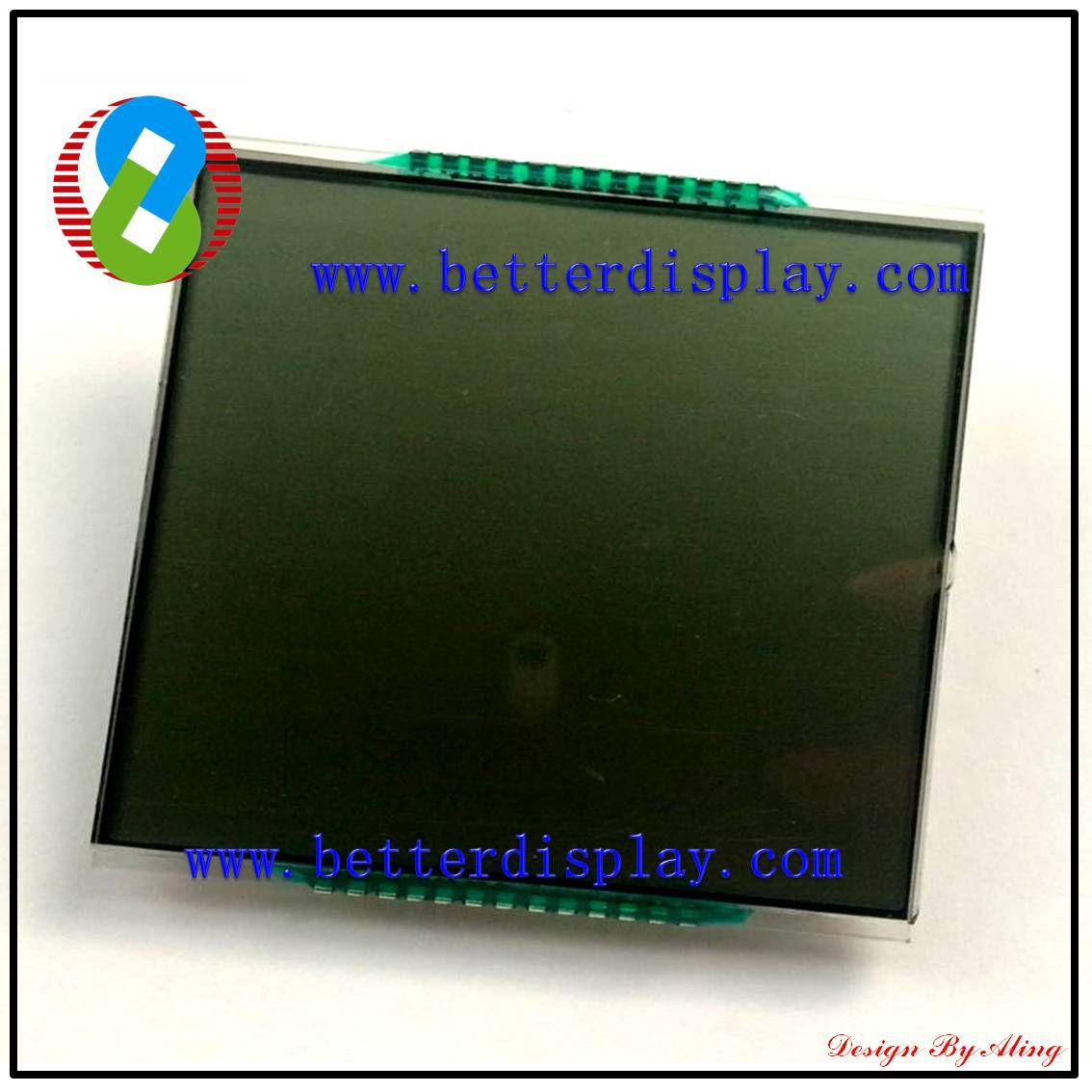

LCD Panel LCM LCD Display Tn Monitor Customized LCD Screen

Prod Model:	A11-92
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Size ( Versatility ):	Length *Width * Highth
Display Type:	Va Tn Htn Stn FSTN
Polarizer Type:	Reflective Transmissive Transflective
Viewing Direction:	Wide Temperature Range
Perating Voltage:	2.8V to 5.0V
Drive Mode:	1/3bias 1/4duty
Backlight:	EL , LED , CCFL
Connecer:	Pin, Zebra, Heat Seal , COB Cog Cof
Dye:	Black , Red , Green Blue , Violet , Yellow
Type:	TN
Feature:	Tn Va Silk Prin Screen Display
Application:	Home Appliance, Autodvd, Meter
Aspect Ratio:	Length*Width*Highth
Screen Size:	Length*Width*Highth
Interface Type:	COB, Cog, Tab

Product Description

LCD panel LCM LCD display tn Monitor Customized LCD Screen

Specifications
Applied: For instrument /Equipment
Product name: LCD polarizer Graphic LCD module
Brand Name: Better
Cerificate: Rohs
Manufacturing Experience: 20 year
Place of Origin: Guangdong China
Model size ( Versatility ): Length *width * Highth:
Pitch: 2.45mm
Viewing sirection: Length *width
Viewing direction: 3H / 6H / 9H / 12H / Full viewing angle
Display type: Mono segent LCD display / Dot matrix display mode
VA TN HTN STN FSTN
Positive Negative
Different polarizer options
Polarizer type: Reflective / Transmissive / Transflective
Wide temperature range
Operating temperature: (-20 TO -70)
Storage temperature: (-40 TO -80)
Connector: PIN Zebra FPC Heat seal
Cob Cog Cof
Low power consumption
Operating voltage: 2.8V to 5.0V
Drive mode: 1/3BIAS 1/4DUTY
Backlight (Custmer Design ): Yellow Green Blue Amble red, green blue, violet, yellow
Controller: SPLC780/KS0066U or eqv.
Backlight: EL, LED, CCFL


***In compliance with ISO9001: 2008 Quality Management
***One year's guarantee for unartificial damage

Packaging & Delivery:
Packaging Detail: Sdandard package for alphanumeric lcd: Anstatic tray or EPE cotton inside, carton outside
Delivery Detail: Alphanumeric lcd lead time is 3.5weeks. Urgent order is 20days
Items per Carton: 1 Pieces/Carton
Package Measurements: 16X12X13 cm
Gross Weight: 0.5 kg
Package Type: Natural packaging

Strength:
1> ISO9001 certificated Factory supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive price and Short lead-time
4> International Approvals, Military Specifications
5> In stock, samples lead-time: 1 -- 3 days.
6> Small MOQ

Quality: In compliance with ISO9001: 2008 Quality Management System, Shenzhen Better Didplay Group Limited always focus on prduct quality, customer service. All product sold out to client have strict testing process by QC department. Our main market are Europe, North America, Asia, Oceania and enjoy good reputation. We have a development team ready for customize any style of display according to customer's requirment.

Welcome to browse our website for more products information and Kindly visit us at: (www.betterdisplay.com) for more information. And be free to contact us for professional datasheet and quotation, appreciate your kind support!

Customized LCD
For advice regarding suitable display for your applications, please contact us, we will be more than happy to assist.

Matters needing attention
1, LCD screen as glass, careful handling, so as to avoid rupture.
2, LCD screen as glass, careful handling, so as to avoid rupture.
3, Numerical correctly connected power do not exceed the prescribed specification.
4, Connection cannot be reversed, then reverse easily burned out board, the impact on the quality of the products.
5, The drive plate for electronic products, the operation should pay attention to anti static, so as not to affect the product performance.


WARRANTY:

1 year warranty after sale the goods. Some technical issue can solved by wire.
We can design and customize segment, character, graphic LCD Display and Module(Including LED Backlight, IC) for your clients with different size, shape, display icons. Welcome to contact us for details. We would like to help you develop your new project.


We are the manufactory of LCD LCM LED TFT LCD Touch Panel, display, screen, TN, HTN, FSTN, VA, with silk screen, pin or zebra, FPC, COB, COG, TAB, All view angle, 2.8V 3.0V 5.0V

We had at least 50 people for research and development, Quality control, 300 workers on the production lines.

Our product Widely used on the Mobile phone, camera, MP3, MP4, GPS, DVD displayer, electronic photo album, navigation, vehicle display, display instrument, electronic, etc.

Quality control By

IQC →IPQC→OQC


Our commitment is 24 hours to solve customer complain and give the solution
