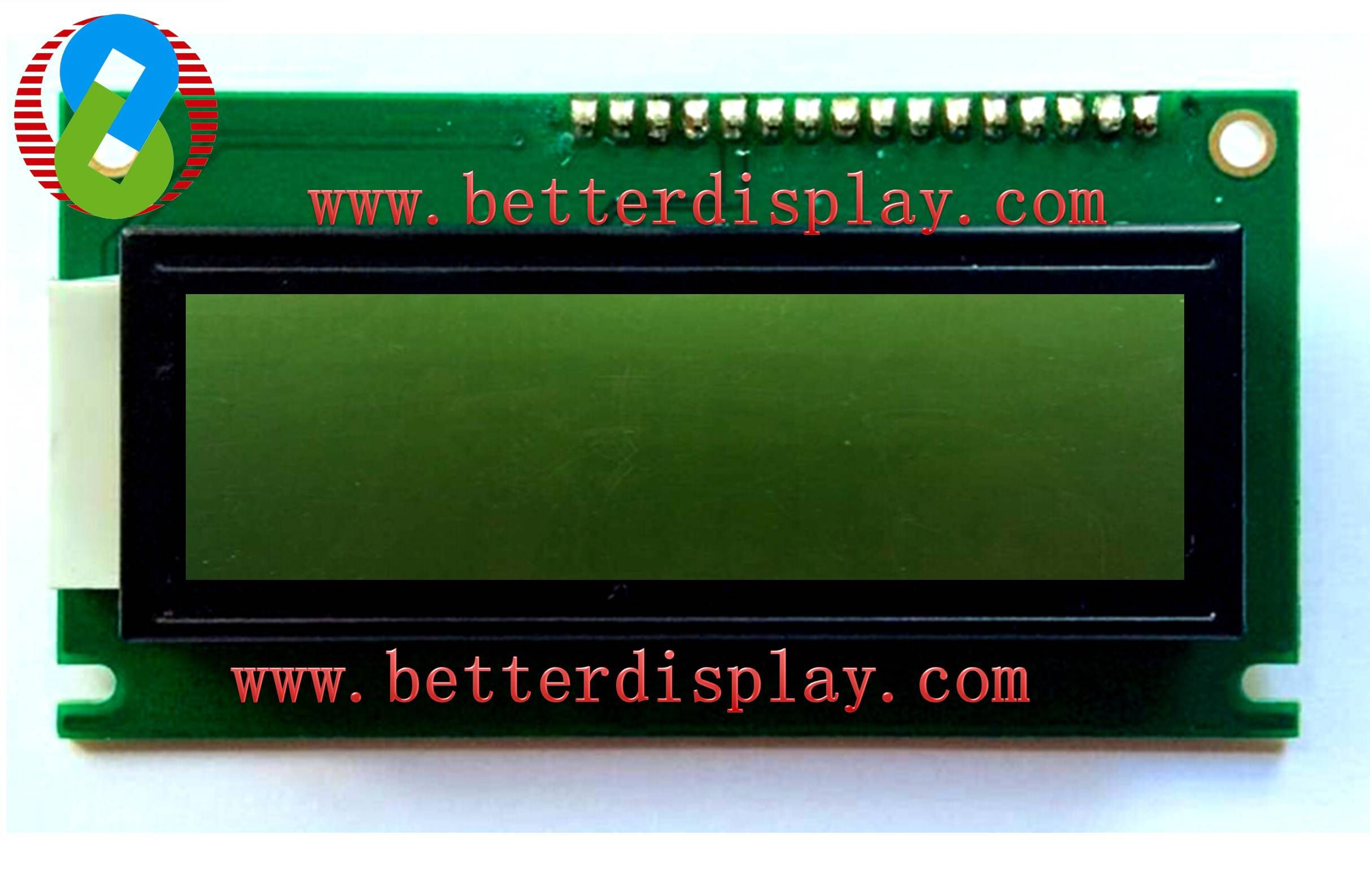

LCD Module 1602 DOT FSTN Display
| Price: |
US $ 2-3/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
YF1602 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| FSTN LCD: |
LCD Moduel |
| Type: |
Graphic |
| Display Technology: |
FSTN/CSTN |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description
2.GENERAL SPECIFICATION
Interface with 4-bit or 8-bit MPU (directly connected M6800 serial MPU)Display Specification
Display Character: 16 character X 2 line Character Font:5X8dors+cursor
Display color-Display background color : STN, Black-White
Polarize mode: Positive, Transmissive
Viewing angle: 6:00
Display duty: 1/16 Driving bias: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X8 dots) &(32 characterX5X10 dots)
Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
Display Data RAM (DDRAM) :40X8 bits (80 characters max)

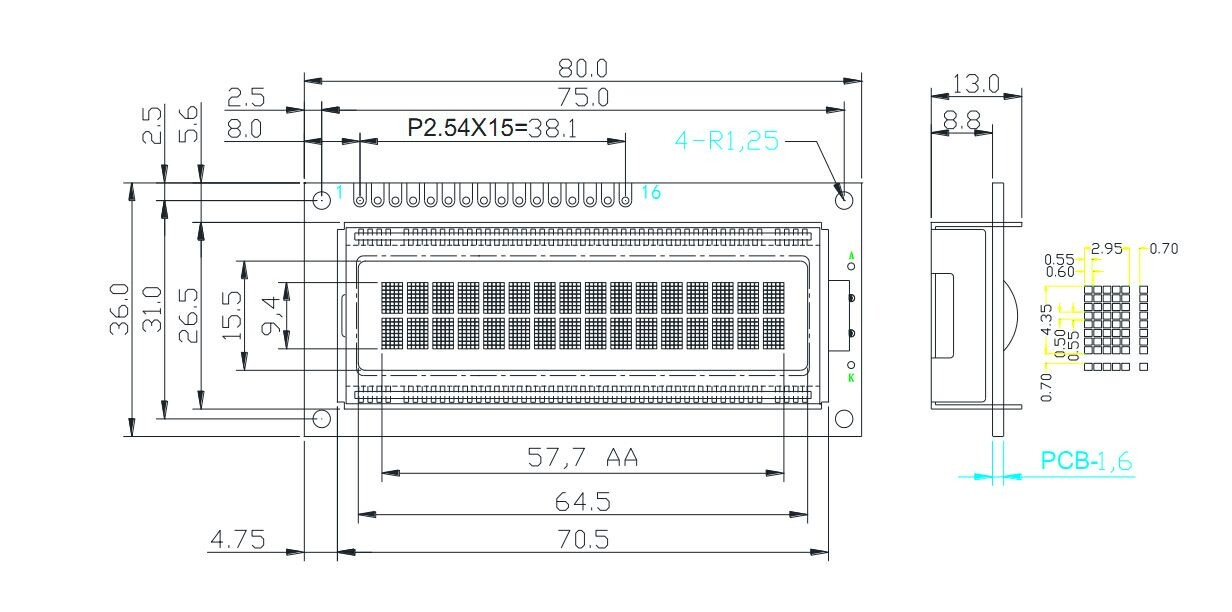

Mechanical characteristics (Unit: mm)
Extenal dimension: 80X36X13
View area : 64.5X14.6 Character font: 5X8 dots + cursor
Character size: 2.9X5.15 Dots size:0.54X0.6
Character pitch: 3.52X5.85
Weight: g
POWER: +5V
| Pin NO. | Symbol | Function | Remark |
| 1 | Vss |
Power Supply | 0V | |
| 2 | Vdd | +5V | |
| 3 | Vo | For LCD | Variable |
| 4 | RS | Register Select (H: Data L: Instruction) | |
| 5 | R/W | L: MPU to LCM H: LCM to MPU | |
| 6 | E | Enable | |
| 7 | DB0 | Data Bit 0 | |
| 8 | DB1 | Data Bit 1 | |
| 9 | DB2 | Data Bit 2 | |
| 10 | DB3 | Data Bit 3 | |
| 11 | DB4 | Data Bit 4 | |
| 12 | DB5 | Data Bit 5 | |
| 13 | DB6 | Data Bit 6 | |
| 14 | DB7 | Data Bit 7 | |
| 15 | A | Anode of LED Unit | |
| 16 | K | Cathode of LED Unit | |
