| Prod Model: |
42, 46, 55 inch |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diagonal Size: |
50" |
| Aspect Ratio: |
16:9 |
| Pixel Pitch: |
0.1903(H) X 0.5708(W) |
| Response Time: |
<5ms |
| Resolution: |
1920*1080 |
| Contrast Ratio: |
5000:1 |
| Brightness: |
350CD/M2 |
| Activve Display Area: |
1095.84 (H) X 616.41(V) |
| Display Color: |
16.7m |
| Viewing Angle: |
H:178 Degree V: 178 Degree |
| Type: |
LCD Monitor |
| Material: |
LCD |
| Color: |
Color |
| Screen: |
General Screen |
| Size: |
≥42" |
| Sensor: |
CMOS |
| Scanning: |
Line by Line Scan |
| Horizontal Resolution: |
1920*1080 |
Product Description
[Description]

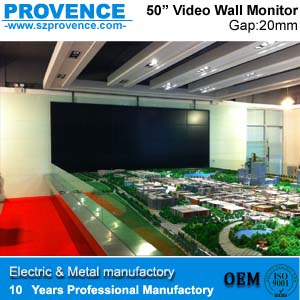

LCD LED TV display Video wall billboard is used for build a LCD LED video wall billboard.The LCD LED screen come from Samsung,LG,Sharp factory.The gap is 3.5~20mm between two screen, resolution up to 1366 * 768/1920 * 1080 pixel full HD of every LCD Video Monitor;.LCD Video wall monitor is the general family of products of our company, and it is very important one; support the highest single-screen resolution up to 1080p high-definition display, while taking advantage of the new industrial design, combined with advanced process design. A collection of the most advanced 3D digital image processing engine, true image, precise monitoring more detail; and support for up to 7 days 24 hours non-stop work. Another rich interfaces to meet any required applications, intelligent backlight adjustment, automatic temperature control system of the monitor to make more environmentally friendly, more stable and more reliable.
Provence have UT, UX series of professional-grade LCD video wall monitor with high brightness, high contrast, high color saturation, wide viewing angle and high reliability. 120Hz dynamic processing technology has twice the processing power of the double processing speed improvement. Up to 50,000 hours or more long life, far more than any other similar product cost. The products have been widely used in various applications, such as public security, finance, energy, transportation, mining, government, business, electricity, railways, workshops, TV studio, large-scale performances, exhibitions, hotels, supermarkets, research and education, medical, military command, weather, museums, and real estate.
[Function]
FHD resolution, viewing angle: 178o (H/V), high contrast ratio and colour saturation.
Slim bezel, excellent tiled visual performance
Metal case: anti-static,antimagnetic & anti-interference performance
Designed and engineered for 24/7 operation. Long lifetime: >50,000 hours.
Professional driving IC (adopting 3D comb filter and digital noise reduction technologies), ensuring high quality and stable colour performance.
Smart fan controlled by built in temperature sensor results in smart working temperature control.
Energy saving, very eco-friendly low power.
HDMI, DVI, VGA etc. multiple I/O ports allow for greater compatibility and flexibility.
Various installation methods: wall mount, floor stand, cabinet-mount etc.
Operation modes: RS232, Remote control, Key control
Ideal video wall solution for showrooms, exhibitions, CCTV system etc.
|
LCD LED TV video wall Billboard display Product Description |
|
LCD panel |
|
Diagonal Size |
50" |
|
Aspect Ratio |
16:9 |
|
Pixel Pitch |
0.1903(H) x 0.5708(W) |
|
Response Time |
8ms |
|
Resolution |
1920x1080 |
|
Contrast Ratio |
5000:1 |
|
Brightness (cd/m2) |
350cd/m2 |
|
Active display area |
1095.84 (H) x 616.41(V) |
|
Display Color (Max) |
16.7M |
|
Viewing Angle(U/D,L/R) |
H:89o/89o V:89o/89o |
|
I/O (Input) |
(Standard) |
-4 |
-D |
|
VGA |
X1 |
X1 |
X1 |
|
DVI |
X1 |
X1 |
X2 |
|
HDMI |
X1 |
X1 |
X1 |
|
Display Port(DP) |
/ |
/ |
X1 |
|
YPbPr |
/ |
/ |
X1 |
|
CVBS |
X2 |
X4 |
X2 |
|
Svideo |
/ |
/ |
/ |
|
RJ45(for RS232 IN) |
X1 |
X1 |
X1 |
|
USB(for Debug) |
X1 |
X1 |
/ |
|
I/O (Output) |
|
RJ45(for RS232 OUT) |
X2 |
X2 |
X1 |
|
Display Port(DP) |
/ |
/ |
X1 |
|
CVBS out |
/ |
/ |
/ |
|
Features and Benefits |
|
Daisy chain |
NO |
NO |
>100 |
|
ID code(by software) |
NO |
NO |
Yes |
|
Support 4K mode |
NO |
NO |
Yes |
|
Multi monitors (Max:15x15) |
Yes |
Yes |
Yes |
|
Image residual function |
Yes |
Yes |
Yes |
|
Built-in temperature sensor |
Yes |
Yes |
Yes |
|
Colour Auto balance |
Yes |
Yes |
Yes |
|
On/Off Timer |
Yes |
Yes |
Yes |
|
License Agreement |
Yes |
Yes |
Yes |
|
Brightness is balanced |
Yes |
Yes |
Yes |
|
ECO mode |
Yes |
Yes |
Yes |
|
Smart fan |
Yes |
Yes |
Yes |
|
Work status display |
Yes |
Yes |
Yes |
|
Multi Windows |
Yes |
Yes |
Max 3 |
|
Roaming |
Yes |
Yes |
Yes |
|
Vertical video wall |
NO |
Yes |
NO |
|
Any mode video wall |
NO |
Yes |
NO |
|
Technical Specification |
|
OSD language |
,English |
|
Video Format |
PAL\NTSC |
|
Case Material |
Metal |
|
Color |
Black |
|
Horizontal Frequency |
20 ~ 82KHz(Anolog&Digital) |
|
Vertical Frequency |
55~75Hz |
|
Optimum Resolution |
1920x1080 at 60HZ |
|
Native Resolution |
1920x1080 at 60HZ |
|
Supported Resolutions |
1920x1080;1680x1050;1600x1200; |
|
1440x1050;1360x768; 1280x1024; |
|
1280x768; 1024x768;832x624; |
|
800x600;720x400; 600x480; |
|
Video Modes(no tuner) |
480i;480p;576i;576p; |
|
720p(50 and 60HZ); |
|
1080i(50 and 60HZ); |
|
1080p(50 and 60HZ) |
|
POWER |
|
Power supply: |
AC Input 100~240V(+/-10%)/50-60Hz |
|
Power consumpiton |
Max:220W / Standard:145W |
|
Stand-by: |
≤1W |
|
Operation/Sotrage |
|
Operating Temperature |
00C~400C |
|
Operating Humidity |
10%~90% |
|
Storage Temperature |
-200C~600C |
|
Storage Humidity |
0%~90% |
|
Safety and Ergonomics |
|
Quality standards: |
ISO9001,CCC,FCC,CE,ROHS |
|
Environmental standards: |
All components,accessories and packing are compliant with international standards. |
|
|
|
Optional accessories |
|
Wall mount |
DVI cable(1.5m) |
|
RS232 to USB converter |
HDMI cable(1.5m) |
|
BNC to RCA connector |
VGA to BNC cable(1.5m) |
|
BNC to BNC cable(1.5m) |
RJ45 to RS232 connector |
|
Accessoires |
|
User manual x1 |
Net cable(1.8m) x1 |
|
Power cord(1.8m) x1 |
Certificate card x1 |
|
Mechanical Spec |
|
NW/GW: |
20kg / 25kg |
|
Bezel(U/D/L/R) |
U/D:22mm; L/R:20mm |
|
Dimension(W/O stand): |
1122.6x645.3x92.1mm |
|
Packing Dimension (2 pcs/ctn): |
1330x455x820mm |
|
Warranty |
|
13 months (LCD monitor and components) |
