| Prod Model: |
PM470TX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution:1920X1080: |
Touch:Infrared Touch Screen |
| Screen Size: |
30-40 Inches |
| Application: |
Public Information Inquiry System |
| Customized: |
Customized |
Product Description

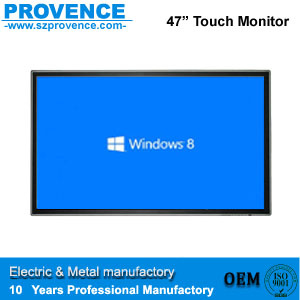

47" inch Touch LCD LED panel monitor
Touch monitor is use for lots of application. It is composite by touch screen, LCD screen and so on. And the Touch screen have serveral model: Resistance touch screen, IR touch screen, Capacity touch screen, Wave screen. We are always using IR touch screen in the 42~100inch monitor. We are using Resistance and Capacity touch screen in the 7~22inch monitor. Interactive touch screen, is integrated with multimedia equipment and display the touch screen module, LCD technology is set, the technology of electronic whiteboard solution for the integration of high-tech products. It is very useful in the goverment, meeting, exhibition, company, bank and so on The configuration is follow customer require. Such as CPU, Memory, Hdd and so on.
The configuration is follow customer require. Such as CPU, Memory, Hdd and so on
Support windows XP/7/8.
Interactive touch function, combined with the special software, can achieve interactive effect.
Multitouch support in windows7/8, support 2 ~ 32 points multi-touch function
Free correction, free driving function, easy for user without driver.
FHD LED screen, high brightness, and high contrast, high resolution.
Compatible USB playback function, including video, pictures, MP3 players and other various playback mode.
Multimedia function, this product have various interface: HDMI, USB, etc., compatible and easily connect a variety of peripheral devices.
The speed of touch up to 300 points, writing smooth, fast response.
Support single point touch, the mouse control, multi-touch, available to different situation.
Can be used with a variety of software, to adapt to a variety of applications.
| LCD panel |
|
| Diagonal Size | 47" |
| Aspect Ratio | 16:09 |
| Pixel Pitch | 0.543(H)×0.543(V) |
| Response Time | 5ms |
| Resolution | 1920X1080 |
| Contrast Ratio | 1300:1 |
| Brightness (cd/m2) | 500d/m2 |
| Active display area | 1042.56mm(W)×586.44mm(H) |
| Display Color (Max) | 1073.7M |
| Viewing Angle(U/D,L/R) | 178°(H)/ 178°(V) |
| I/O |
|
| HDMI | x2 |
| VGA | x1 |
| YPbPr | x1 |
| AV | x1 |
| USB | x1(Support: Video,Picture,Music) |
Video:avi,mp4,ts,trp,mkv,mov,
mpg,dat,vob,rm,rmvb |
|
| Audio:mp3,wma,m4a,aac |
| Picture:jpg,jpeg,bmp,png |
| Text: .txt |
| TV | x1 |
| PC Audio | x1 |
| Earphone | x1 |
| Audio |
|
| Stero Speaker | 2x10W |
| Touch parameters |
|
| Inductive technology | Infrared Single/Double touch |
| Touch point | 1~32 points |
| Inductive objects | Finger,pen, any other non-transparent objects |
| Inductive size | Diameter≥5mm,recommended size≥7mm |
| Resolution | 4096*4096 |
| Response time | Dual touch:first click:8ms,continuous:8ms |
| Single touch: first click: 8ms,cintinuous:3ms |
| Cursor speed | Single: highest 300 dot/s, dual touch:125 dots/s |
| Operating life | ≥60,000,000 times to touch |
| Multi Touch | Support Wind7/8 |
| Positioning calibration | Support HID device, plug and play, no need driver and calibration, match-management program for positioning calibration. |
|
|
|
| Light anti-decay | light anti-decay circuit, maitains stable performance for a long-time working |
|
| Anti-light interference | work in the condition of direct sunlight |
| Technical Specification |
|
| OSD language | Simplify Chinese, English |
| Horizontal Frequency | 20 ~ 82KHz(Anolog&Digital) |
| Vertical Frequency | 55~75Hz |
| Optimum Resolution | 1920x1080 at 60HZ |
| Native Resolution | 1920x1080 at 60HZ |
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
