| Prod Model: |
8D2211STN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
Stn Yellow Green |
| Drive Method: |
1/4duty.1/3bias |
| Drive Voltager: |
5.0 |
| Polarizer Type: |
Reflective |
| Operating Temp: |
-20-70 |
| Storger Temp: |
-30-80 |
| Connector: |
FPC Cable |
| Type: |
STN |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Widescreen: |
Widescreen |
| Feature: |
LED Backlight Display |
| Optimum Resolution: |
3840x2160 |
| Screen Size: |
≤17" |
| Interface Type: |
VGA |
| Response Time: |
2ms |
| 3D: |
Not 3D |
Product Description

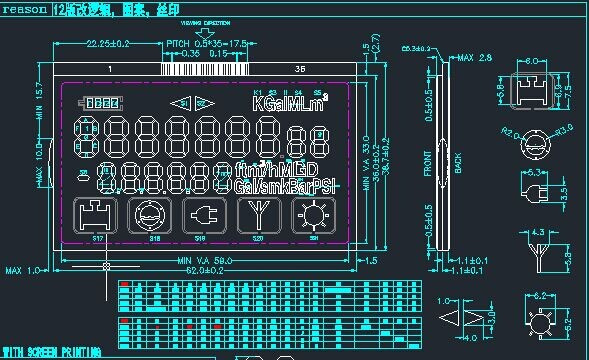

STN LCD model specification:
NOTES:
Outline SIZE:62*38.7*36MM
Viewing area size:59*33mm
LCD thickness:1.1mm
Display type: STN positive(y/g)
LCD operation voltage:2.8v
Operation temperture: -10-70
Storge temperture: -10-70
Driving method: 1/4duty,1/3bias
Viewing Direction: 12H means top viewing direction

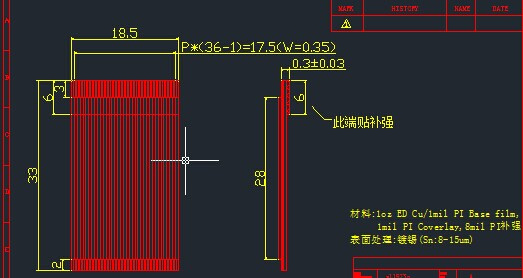

Connector: FPC
| ITEM | SYMBOL | CONDITION | MIN. | TYP. | MAX. | UNIT | REF. |
| Contrast | CR | 25,Vdd=5V, θ=0, Ø=0 | -- | 12 | -- | | (2) |
| Rise Time | Tr | 25,Vdd=5V, θ=0, Ø=0 | -- | 160 | 240 | ms | (3) |
| Fall Time | Tf | 25,Vdd=5V, θ=0, Ø=0 | -- | 100 | 150 | ms | (3) |
| Viewing Angle | θ1-θ2 | 25 | -- | -- | 60 | DEG | (1) |
BETTER DISPLAY GROUP LIMITED is a High-tech enterprise which established in 2010 and specializing in the production and sales of LCD and LCM.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade.
We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.
Welcome to order, we will serve you.
