| Prod Model: |
GH12864-3001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS and ISO 9001:2008 Certification |
| ODM: |
OEM Product Design/ Production |
| Model: |
Gh12864-3001 |
| Display Type: |
Stn, Negative or Positive, Transmissive |
| Operating Voltage (Vdd): |
3.3V, 5V |
| Outline Dimension: |
78.00*70.00*12.50 |
| Viewing Area: |
62.00*44.00 |
| Controller: |
Ks0107 |
| Backlight: |
LED, Y-G, White |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Infrared |
| Type: |
Graphic |
| Response Time: |
10ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description

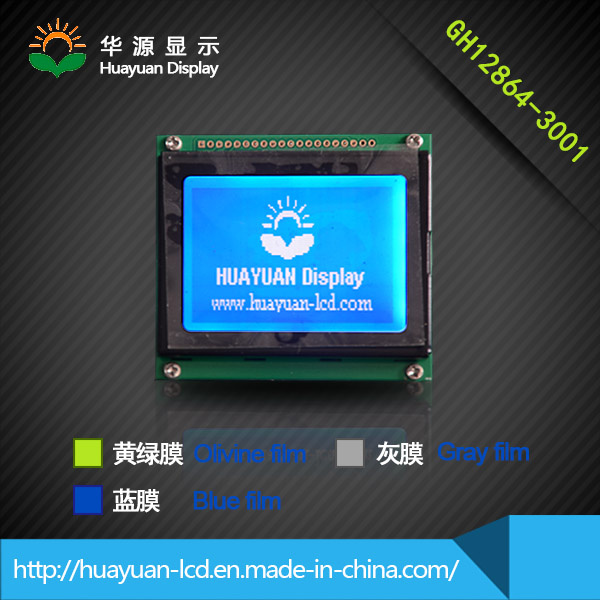

Model: GH12864-3001
ConstructionCOB
Display TypeSTN, Negative or Positive, Transmissive
Operating Voltage (VDD)3.3V, 5V
Backlight Voltage(VBL)3.3V, 5V
Operating Temperature (degree Celsius)-20~70
Storage Temperature (degree Celsius)-30~80
Viewing Direction6: 00
Dot Matrix128*64
Viewing Area62.00*44.00
Active Area56.27*38.35
Outline Dimension78.00*70.00*12.50
ControllerKS0107
BacklightLED, Y-G, White
| Model: | GH12864-3001 |
| Construction | COB |
| Display Type | STN,Negative or Positive ,Transmissive |
| Operating Voltage (VDD) | 3.3V\5V |
| Backlight Voltage(VBL) | 3.3V\5V |
| Operating Temperature (degree Celsius) | -20~70 |
| Storage Temperature (degree Celsius) | -30~80 |
| Viewing Direction | 6:00 |
| Dot Matrix | 128*64 |
| Viewing Area | 62.00*44.00 |
| Active Area | 56.27*38.35 |
| Outline Dimension | 78.00*70.00*12.50 |
| Controller | KS0107 |
| Backlight | LED,Y-G,White |
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
