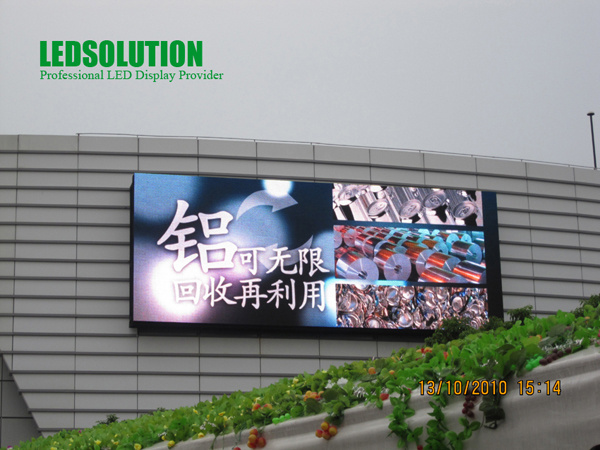

Large Format Outdoor Advertising LED Display

Large Format Outdoor Advertising LED Display
Price: US $ 800-1200/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Prod Model: LS-O-P16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: Over 6000nit
Viewing Angle: 130/60 Degree
Display Type: LED Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Application: Advertising
Pixel Configuration: 1R, 1G, 1B
Pixel Pitch: 16mm
Display Function: Video Display
Scanning Mode: Static Scan
Certification: RoHS
Pixel Density: 3906 Dots/M2
Average Power Consumption: 244W/M2

Product Description

Features of the outdoor LED Display:

*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness from 6000 nits onwards




Parameter Unit Value
Pitch mm 16
Brightness nits 6, 000
Color temperature deg. K 6, 500
Viewing angle – Horizontal (50% brightness) deg. 130 (+65/-65)
Viewing angle – Vertical (50% brightness) deg. 60(+30/-30)
Panel weight kg 90
Panel width mm 1, 536
Panel height mm 1, 024
Panel depth mm 170
Panel area sq. m. 1.573
Panel material   Epoxy paint coated Cold rolled steel
Ingress protection (front/rear) IP IP65/IP43
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B 1, 1, 1 / 2, 1, 1
Resolution per panel   64x64
Dot per panel   4, 096
Dot per sq. meter   3, 906
LED per sq. meter   11, 718 / 15, 624
Recommended minimum viewing distance m 16
Recommended best viewing distance m 22~53
Colors    281 Trillion
Grey scale (linear) Levels 65536 levels
Brightness control Levels 256
Contrast ratio   1, 000: 1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 180~3, 000
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts /sq. m. 1, 000
Input power (typical) Watts /sq. m. 400
Lifetime (50% brightness) Hours ≥ 100, 000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 520~525
Blue wavelength (dominant) nm 470~475
Multimedia data format   DVI, MPG, AVI, WMV, RM etc.
Data interconnection   UTP Cat 5/Optical Fiber
Mounting system   Fixed with 4pcs M10 bolts
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
