Prod Model: |
J Y-D F15 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Performance: |
Efficient Filtration |
Mechanical Principle: |
Pressure Filtration |
Usage: |
Oil-Water Separator |
Structure: |
Polymer Membrane |
Type: |
Membrane Filter |
Working Pressure: |
0.2~0.35 MPa |
Temperature: |
-10~70 Centigrade |
Filter Element Quantity: |
100 Pieces |
Flow Rate: |
15 Stere/H |
Filtration Precision: |
2, 5, 10, 15, 25 Micrometer(Optional) |
Product Description
Product Introduction:
Excellent Performance:
<>Capacity 100 tons daily and continuous working parttern
<>Small scale diesel refining machine with minimum 2 μm precision
<>Can be used as by-pass filter
<>Being widely used in diesel terminal refinery
<>Polymer membrane filtration technology
<>Oil-water separation efficiency is more than 95%
<>Free water after filtration is less than 100 ppm
<>Acid and alkali resistance of polymer membrane material
<>Selectivity-pass characteristic of 3D pore structure filter elements
<>High interception rate and low filtration cost
<>Small operating space and convenient drain valve
<>Stainless steel tank pass pressure test can be customized
<>Filter elements can be used repeatedly after back-washed
<>Design service life is more than 20 years (except for filter elements)
Technical Parameters:

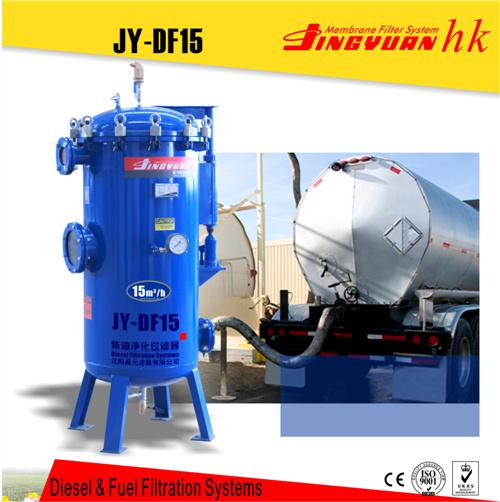

1.Model Type: JY-DF15
2.Flow Rate: 15 m³/h
3.Filtration System:
(1)Polymer Membrane Filter Elements (Can be used repeatedly after washing)
J30-970H02------------------------------------------------------------2μm
J30-970H05------------------------------------------------------------5μm
J30-970H10------------------------------------------------------------10μm
J30-970H15------------------------------------------------------------15μm
J30-970H25------------------------------------------------------------25μm
(2)Filter Element Quantity: 100 Pieces
(3)Function: Remove impurity particles, colloid and water
(4)Working Pressure: 0.2~0.35 Mpa
(5)Filtration Level: 1
(6)Service life: 2~3 Years or longer
4.Filtration Precision:
(1)Range: 2,5,10,15,25 μm
(2)Standard: 5~10 μm
5.Mouth:
Standard: DN65 or End Flange
Or DN65-DN80 According to Requirements
6.Security:
With Pressure Safety Valve and Air Release Valve
7.Temperature:
Working Temperature: -10~70 ºC
8. Dimension: 800*700*2000mm
9.Weight: 210KG
10.Anti-hazard Classification: Grade 2
Various Products Solves Your Problem in Oil Purification :
Large Capacity High Precision Diesel Refined Machine:JY-DF Series
Small Volume Diesel Purification Strainer:JY-219 Series, JY-T Series
Portable Industrial Oil Filtration Trolley:JY-E Series, JY-M Series
Diesel Demulsification Filtration System:JY-DFF Series
Sea Oil Water Removal System:JY-DFS Series
High Viscosity Hydraulic Oil/Gear Oil/Engine Oil Purification Refined Machine:JY-G Series
Proprietary Technology:
Polymer Membrane Filter Element:
Oil flows through the Jingyuan polymer membrane filter elements, pass a 3D pore structure which the pore precision can be controlled in 30~0.2μm. And by back washing or back blowing the blocked pore, filter elements can be used repeatedly, about 2~3 years or longer.
Principle:
Selectivity pass characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.
Large Capacity Diesel Purification Filter Technical Parameters
Item
Unit
JY-DF15
JY-DF15A
JY-DF15A+
JY-DF60A
JY-DF60
JY-DF60B
Flow Rate
m³/h
15
60
Filter Element Quantity
Piece
100
200
371
Filter Element Type
J30-970H
J30-990H
J30-990H
F150-800
Filtration Stage
Level
1
3
Dimension
L
mm
800
1460
1600
1230
1230
2000
W
mm
700
805
1200
1650
1150
1400
H
mm
2000
2030
2010
2200
2200
2350
Weight
KG
210
360
560
893
632
1130
Power System
Voltage
V
380 Anti-explosion Grade 2
Pump
Diesel Centrifugal Pump
End Flange
DN65~80
DN80~100
DN80~125
DN80~125
Security
With Pressure Safety Valve
Function
Remove impurity particles, colloid and water
Working Pressure
Mpa
Psi
0.2~0.35
29~51
Service Life
Year
2~3
Filtration Precision
μm
Mesh No.
2,5,10,15,20,25
6250,2500,1250,800,625,500
Working Temperature
ºC
-10~70
Suitable Oil
Light Diesel,Diesel Fuel
Application Field
Diesel Refinery, Oil Depot, Oil Storage Tank, Concrete Mixing Station, Transportation Company, Railway Locomotive Gas Station, Fishery Industry
Mobile Industrial Oil Filtration Trolley Technical Parameters
Item
Unit
JY-M50
JY-E50
JY-DM50
Flow Rate
L/min
40
Filter Element Quantity
Piece
68
Filter Element Type
J22-401L/H
J22-405L/H
Filtration Stage
Level
2
Dimension
L
mm
550
700
W
mm
560
650
H
mm
920
1000
Weight
KG
77
100
Power System
Voltage
V
380/220
HONDA 5.5HP
220
Pump
Gear Pump
Diesel Centrifugal Pump
End Flange
DN20
Security
With Pressure Safety Valve
Function
Remove impurity particles, colloid and water
Working Pressure
Mpa
Psi
0.2~0.35
29~51
Service Life
Year
2~3
Filtration Precision
μm
Mesh No.
2,5,10,15,20,25
6250,2500,1250,800,625,500
Working Temperature
ºC
-10~70
Suitable Oil
Diesel, Lube Oil, Hydraulic Oil,Gear Oil, Engine Oil
Application Field
All Kinds of Diesel Vehicles, such as SUV, Jeep, Business Car, Bus, Engineering Machinery, Mining Machinery, Agricultural Machinery, Generator Unit
Industrial Oil Demulsification and Filtration Machine Technical Parameters
Item
Unit
JY-DFS30
JY-DFF60
JY-C500-20
JY-C500-40
JY-G100
JY-G200
Flow Rate
m³/h
L/min
30m³/h
60m³/h
20m³/h
32,40,63 L/min
Filter Element Quantity
Piece
200
36
Filter Element Type
J30-980H
F150-800
R150-800
J30-990L
F150-1000
R150-1000
J30-980H
F150-800
R150-800
J30-970H
J30-970H
F150-500
R150-500
Filtration Stage
Level
3
1
Dimension
L
mm
2200
800
W
mm
1500
750
H
mm
2350
1350
Weight
KG
965
115
Power System
Voltage
V
380/220/DC24/DC12
Pump
Diesel Centrifugal Pump
End Flange
DN80~125
DN20~40
Security
With Pressure Safety Valve and Air Release Valve
Function
Demulsification and Impurity Particles, Colloid, Water Removal
Working Pressure
Mpa
Psi
0.2~0.35
29~51
Service Life
Year
2~3
Filtration Precision
μm
Mesh No.
2,5,10,15,20,25
6250,2500,1250,800,625,500
Working Temperature
ºC
-10~70
Suitable Oil
Sea Oil, Emulsified and High Viscosity Industrial Oil,
Including Diesel, Hydraulic Oil,Engine Oil, Gear Oil and Lube Oil
Application Field
Mining Machinery, Engineering Machinery, Construction Machinery,
Power Generator Unit, Gas Station, Oil Depot, Oil Storage Tank
Small Volume Fuel Purification Filter Technical Parameters
Item
Unit
JY-219
JY-219A
JY-T32A
JY-T32
JY-T100
Flow Rate
L/min
40
60
Filter Element Quantity
Piece
34
68
90
Filter Element Type
J30-970H
J22-400L/H
J22-330L/H
Filtration Stage
Level
1
2
3
Dimension
L
mm
310
310
680
660
1370
W
mm
300
390
480
350
410
H
mm
650
670
660
650
830
Weight
KG
21
30
64
49
125
Power Syetem
Voltage
V
380/220/DC24/DC12
Pump
Diesel Centrifugal Pump
End Flange
DN20
DN65
Security
With Pressure Safety Valve
Function
Remove impurity particles, colloid and water
Working Pressure
Mpa
Psi
0.2~0.35
29~51
Service Life
Year
2~3
Filtration Precision
μm
Mesh No.
2,5,10,15,20,25
6250,2500,1250,800,625,500
Working Temperature
ºC
-10~70
Applicative Oil
Light Diesel, Industrial Oil
Application Field
Mining Machinery, Engineering Machinery, Construction Machinery,
Power Generator Unit, Gas Station, Oil Depot, Oil Storage Tank
Application:
Specially designed for diesel purification, adopt Jing Yuan high performance polymer membrane filtration technology to remove impurity, colloid and water contained in diesel.
Be suitable for oil depot, oil refinery, concrete mixing station, transportation company, railway locomotive gas station, construction machinery oil supply station, power generating unit and so on.
We may also customized filters according to customers' requirements.
Now we are seeking for business partners or agents overseas to expand our foreign market. Please take our company into consideration, and looking forward to establish a long-term cooperation relationship with you!
Shenyang jingyuan Membrane Systems Co., Ltd. is a professional and innovative membrane filter manufacturer, specialized in clean diesel filter technology, special membrane production technology, supplying with high performance and large flow of diesel purification filters and devices, industrial oil purification device, high performance military filtration device. We are particularly skilled in research and application of membrane filtration materials, strict product quality control. We uphold the proprietary technology and creative and offer you qualified products, competitive price and professional services. We sincerely hope to promote and develop the business with our friends on the basis of equality and mutual benefit.
Philosophy: Focus on research and development, continuously innovate product, control quality in strict, base on equality and mutual benefit.
Our factory is located in Tieling Yilu Industrial Park in Liaoning Province, which is also China special vehicle production base, covers a total area of 28000 square meters with the membrane materials laboratory, production line of special polymer membrane materials and membrane filter production line. We sell filters to many countries and regions except China.
We supply with the main professional products: High-performance large flow diesel purification filters, diesel-water separator, diesel refining filters, high-precision diesel purification filters, industrial diesel purification filters, industrial oil purification filters, industrial demulsification water removal for industrial filters, vacuum centrifugal oil filter, wind turbine gear box oil drain system, matched high viscosity gear oil filter, high viscosity gear oil pre-heater, high performance military filter, polymer membrane materials, and we also engage in filter OEM.
Our company has been approved by ISO9001: 2008 quality management system.
Quality: Strictly quality control
Core competence: Membrane materials R & D and production, in the 21st century, membrane technology will change the world
Production: Professional production of large and medium-sized high-performance flow diesel filters and industrial filtration device
