| Prod Model: |
JL-148/128/110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Air Flow: |
45000m3/H |
| Blade Material: |
Nylon/Fiberglass |
| Type: |
Ventilation Fan |
| Power Supply: |
Electric |
| Timer: |
Without Timer |
| Power: |
>300W |
| Speed: |
440-700(Rpm) |
Product Description
1). Low noise, steady operation, big air flow, power consumption: 0.75 kilowatt per hour.
2). Frame and blades are made of FRP, resistant to corrosion, acidproof alkali.
3). The cone part, designed as a horn, maintenance-free. Do not need to replace the belt for maintenance.
4). The design of shutter system adopt the principle of air forward flow, preventing rain water entering the
Room. Do not need electricity or manual switch for opening and closing.
5). Mirror designed and injection moulding Stainless steel blade, with big air volume, never distortion and broken
6). High efficient and energy-saving motor with CCC certificate, protection class: IP55, insulation class: F grade
7). The cone part, designed as a horn, maintenance-free. Do not need to replace the belt for maintenance.
8). The design of shuter system adopt the principle of air forward flow, preventing rain water entering the room. Do not need electricity or manual switch for opening and closing.
Priciple of negative pressure fan: The negative pressure fan is designed according to the air convection and the principle of the negative pressure ventilation. The negative pressure fan is usually installed in poor ventilation places. When it is working, it will force out the stagnant hot-gas, peculiar smell and squalid smoke bythe negative pressure rapidly in the shortest posssible time. At the same time, fresh air will be supplied into the door quickly and flow circularly, so as to achieve the aim of ventilation and cooling and improve the workshop's environment.
Model | Blade Diameter (mm) | Motor RPM | Air Flow(m3/h) | Power(kw) | Voltage(v) | Noise | Material | Size(mm) |
| JL-148 | 1250 | 440 | 45000 | 0.75 | 380 | 68- | frp | 1480*1480*600 |
| JL-128 | 1050 | 560 | 38000 | 0.75 | 380 | 68- | frp | 1280*1280*600 |
| JL-110 | 880 | 700 | 32000 | 0.75 | 380 | 68- | frp | 1100*1100*600 |
Qingzhou JINLONG Temperature-controlled Equipment Co., Ltd is a professional livestock machinery manufacturer in Shandong province, China, which is a high technology enterprise composed with design, production, sale and after-sales service.

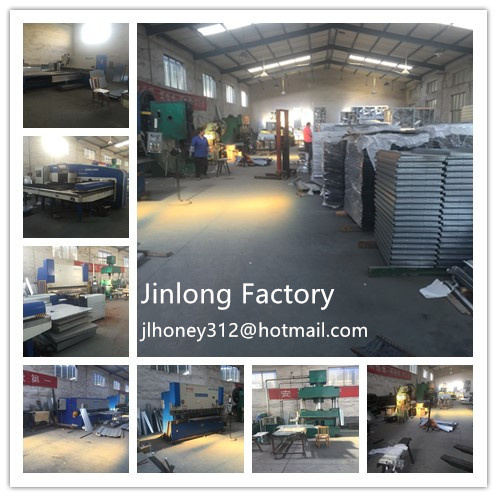

Our company has advanced machining equipment and strong technical force. We introduced advanced quality control equipment, static and dynamic balancing machine and hydraulic repressive machinery. The main products include ventilation fans, air circulation fan, roof fans, wall fans, cooling system, evaporative cooling pad, air cooler, automatic feeding and drinking system, automatic oil-burning and coal-burning hot blast stove, totally more than 30 kinds, which have absorbed the quintessences of similar products home and abroad, made of high quality materials by advanced technology.
The products are all energy saving, smooth operation, low noise, stable performance, solid and durable with elegant appearance, and widely used in the fields of agriculture, flowers and plants, livestock, textile, mining, chemical, pharmaceutical and timber. Our company always insists on the tenet of "survive with quality, develop with credibility". We provide first-rate products and service for customers with the enterprise spirit as "keep faithfulness, and race to the top ". Our products have been exported to Southeast Asia, Middle East, West Europe, Canada and Australia and get favorable comments.
