| Prod Model: |
VRX915M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
2-Way 15" Full Frequency |
| Frequency Response: |
70 Hz - 20 kHz |
| Hf: |
1X2431h 3"Neodymium |
| Lf: |
1X2265HPL 15" Neodymium |
| Power Rating: |
800 W / 1600 W / 3200 W |
| Finish: |
Duraflex Finish |
| Finish 2: |
Environmental Water-Based Paint |
| Enclosure: |
18 Mm, 11-Ply Birch Plywood |
| Connector: |
2 X Nl4 Speakon |
| Recommend Power Amplifier: |
800W-1000W |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Certification: |
RoHS |
| THD: |
<0.005% |
| Speaker System: |
2 Way Full Frequency |
| Speaker Material: |
Brich Plywood |
| Application: |
Professional Performance |
| Monitor: |
Non |
Product Description

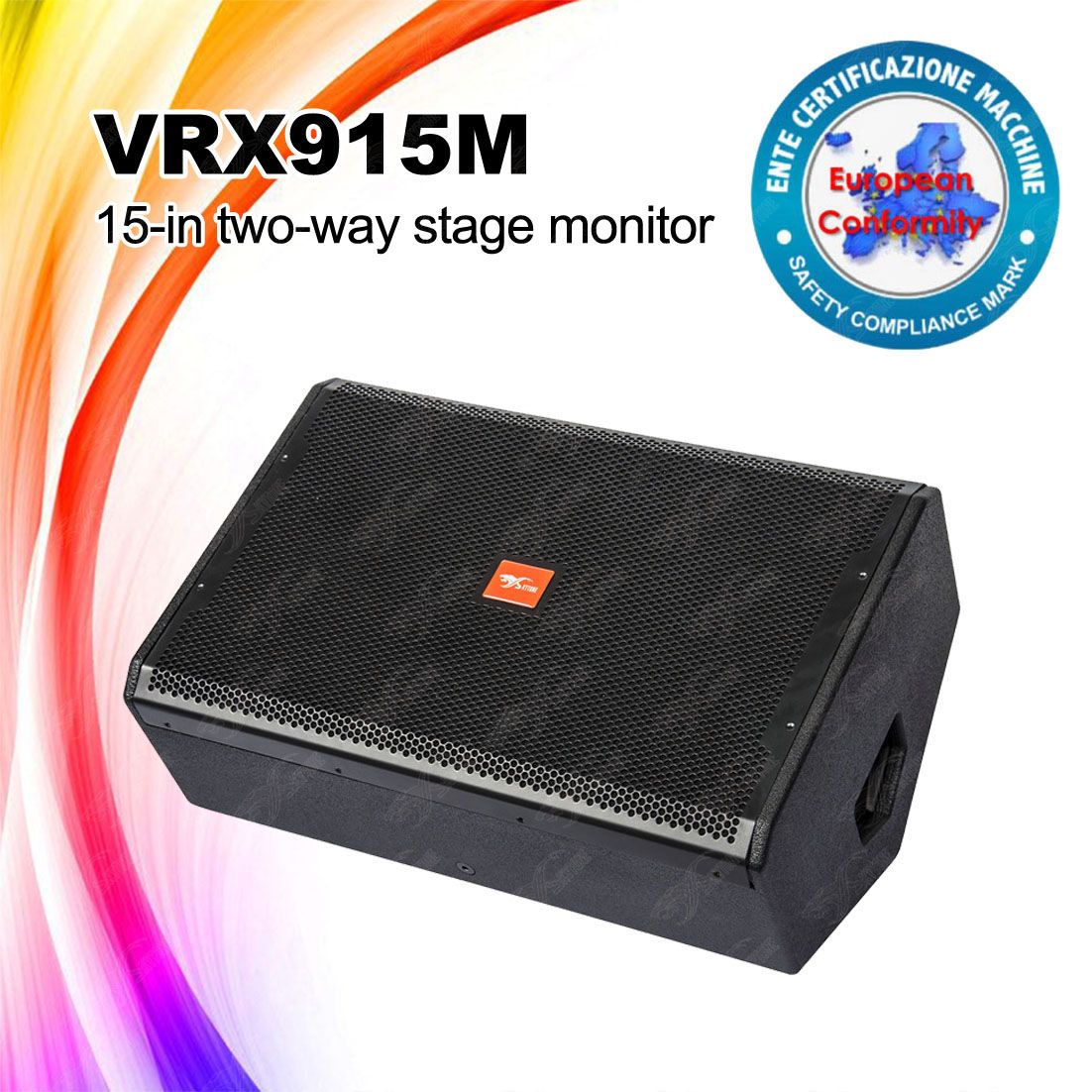

JBL VRX915M style 15" portable speaker box
15 in. Two-Way Stage Monitor
Lightweight 15" two way touring-class floor monitor
The VRX915M is a dedicated, compact and lightweight 15" two way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL's latest neodymium-magnet transducers.
Features:
--Compact and low-profile for minimal obstruction of audience sightlines
--50° X 90° Nominal coverage
--Bi-amplified or full-range passive operation
--Differential Drive® Woofer with neodymium magnet for high power capacity and very light weight
--1.5" (voice coil) diameter compression driver with neodymium magnet
Specifications:
| Specifications: | |
| Model | VRX915M |
| Power Rating: | 800 W / 1600 W / 3200 W |
| Frequency Range: | 60 Hz - 20 kHz |
| Dimensions: | 629 mm x 432 mm x 324 mm (375 mm stage height) |
| (H x W x D) | |
| Frequency Response: | 70 Hz - 20 kHz |
| Coverage Pattern: | 50° x 90° nominal |
| Crossover Modes: | Bi-amp / passive |
| Crossover Frequency: | 1.1 kHz |
| System Maximum SPL: | 127 dB SPL continuous (133 dB SPL peak) |
| System Sensitivity (1w @ 1m: | 98 dB SPL |
| LF Driver: | 1 x 2265HPL 380 mm (15 in) Differential Drive woofer 8 Ohms |
| | neodymium magnet, dual voice-coils, and dual magnetic gaps. |
| HF Driver: | 1 x 2431H, 3" diaphragm, neodymium compression driver |
| Nominal Impedance: | Passive: 8 ohm |
| Bi-amp LF: 8 ohm |
| Bi-amp HF: 8 ohm |
| Enclosure: | 18 mm, 11-ply birch plywood |
| Finish: | Black DuraFlex finish |
| Grille: | Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing |
| Input Connectors: | Speakon NL-4 (x2), one on each end |
| Net Weight: | 21 kg (46 lb) |
Applications:
1. Live performance stage monitoring
2. Speech reinforcement
3. Reinforcement of vocal and acoustic music
4. High-performance satellite speaker for use with subwoofers
