| Prod Model: |
SR531 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5(L)X5 (W)X3.6(H)Mm |
| Working Voltage: |
2.7-5.5V(DC) |
| Receive Distance: |
13-15 Meter |
| Feet Space Between: |
2.54mm |
| Feet Length: |
23mm |
| Type: |
Radio Signal Modulation |
Product Description

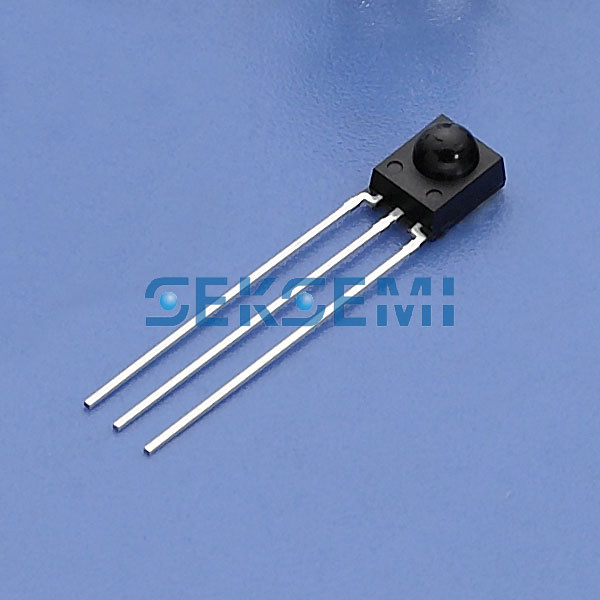

IR Receivers Modules:
PKG Configuration:
1. Casting type.
2. Transfer type.
Supply Voultage: 2.7V to 6V
Pin Configuration:
1. Vout-GND-Vcc.
2. Vout-Vcc-GND.
3. Vcc-Vout-GND.
4. GND-Vcc-Vout.
5. GND-Vout-Vcc.
Frequencies Spec: 32.7kHz, 36.7kHz, 37.9kHz, 40kHz, 56.7kHz.
Applications: TV, VCR, Audio, Home Appliances, Remote control equipment.
Data Sheet
|
parameter |
symbol |
Min |
Max |
Unit |
|
supply voltage |
VCC |
o |
6.5 |
V |
|
supply current |
ICC |
0 |
3 |
mA |
|
output voltage |
Vout |
0 |
6.5 |
V |
|
output current |
Iout |
0 |
2.5 |
mA |
|
operating temperature |
Tamb |
-25 |
85 |
º C |
|
storage temperature |
Tstg |
-30 |
85 |
º C |
|
soldering temperature |
Tsd |
260º C± 5º C, Max 5 sec |
º C |
Xiamen Wanming Electronics Ltd.Founded in February of 1998 and trade marked as WMEC is a renowned manufacturer of Safety Recognized Ceramic Disc Capacitors, Zinc Oxide Varistors, NTC Thermistors, Monolithic Ceramic Capacitors, Film Capacitors and Infrared Receivers...
Our munafactory is located in Xiamen, China and is equipment with fully automated production lines with production capacity of over150 million pieces per month making us one of the biggest manufacturersof Safety Recognized Ceramic Capacitors in China.
With our sales office located in Shenzhen, China and distributing resellers around the world, purchasing WMEC products is made easy for all customers.
WMEC product's quality is of the highest standing and we are confident in providing our customers with the best total cost for goods ratio.This is why WMEC products are used by many world-renowned electronics companies.
We have been able to obtain many of the safety, quality assurance, and environmental friendly approvals from around the world as required by our top customers.These approvals and certifications include but are not only limited to ISO 9001:2008 and ISO14001:2004, CQC, IECQ, UL, VDE, CSA, EK, JET, NEMKO, SEV, FIMKO, and RoHS.
After many years with our customers and according to their products requirement, we set up a new company Sekwang Semiconductor Electronics Co., Ltd, Which located in Shenzhen.It is a professional company to produce Infrared Receivers and Infrared LED.The capacity per month is 15kk per month with more than 100 people.All the production line are automatic to ensure high effective production.
This company we have also got RoHS and SGS certificates, We welcome our esteemed customers to contact us.
