| Prod Model: |
S531F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
38kHz |
| Voltage: |
2.7~6V |
| Type: |
IR Receiver Module |
Product Description

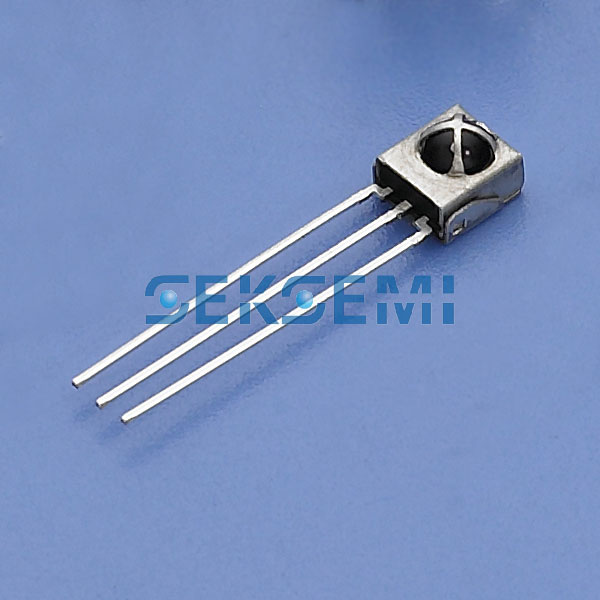

IR Receivers Modules:
Feature: Is a Bi-CMOS IC for use in infrared remote control system.
It consist of automatic gain control amplifier, post amplifier, Oscillator, automatic gain control circuit, a band pass filter, a signal waveform detection circuit, automatic threshold control circuit.
PKG Configuration:
1. Casting type.
2. Transfer type.
Supply Voultage: 2.7V to 6V
Pin Configuration:
1. Vout-GND-Vcc.
2. Vout-Vcc-GND.
3. Vcc-Vout-GND.
4. GND-Vcc-Vout.
5. GND-Vout-Vcc.
Frequencies Spec: 32.7kHz, 36.7kHz, 37.9kHz, 40kHz, 56.7kHz.
Applications: TV, VCR, Audio, Home Appliances, Remote control equipment.
Datasheet
|
parameter |
symbol |
Min |
Max |
Unit |
|
supply voltage |
VCC |
o |
6.5 |
V |
|
supply current |
ICC |
0 |
3 |
mA |
|
output voltage |
Vout |
0 |
6.5 |
V |
|
output current |
Iout |
0 |
2.5 |
mA |
|
operating temperature |
Tamb |
-25 |
85 |
º C |
|
storage temperature |
Tstg |
-30 |
85 |
º C |
|
soldering temperature |
Tsd |
260º C± 5º C, Max 5 sec |
º C |
|
parameter |
Symbol |
Conditions |
Vcc |
Min |
Typ |
Max |
Unit |
|
Supply Voltage |
Vcc |
|
|
2.7 |
- |
6.0 |
V |
|
supply current |
Icc |
No input signal |
5 |
0.8 |
1.2 |
1.5 |
mA |
|
3 |
0.5 |
0.9 |
1.2 |
|
B. P. F Center Frequency |
fo |
|
5 |
-3 |
fo |
3 |
% |
|
3 |
-5 |
fo |
+5 |
|
Peak Wave Length |
|
|
|
- |
940 |
- |
nm |
|
High Level Output Voltage |
Voh |
Fig. 1 |
5 |
Vcc-0.5 |
- |
- |
V |
|
3 |
Vcc-0.5 |
- |
- |
|
Low level Output Voltage |
Tol |
Fig. 1 |
5 |
- |
0.2 |
0.4 |
V |
|
3 |
|
0.2 |
0.4 |
|
High Level Output pulse Width |
Twh |
Fig. 1 |
5 |
450 |
600 |
750 |
us |
|
3 |
450 |
600 |
750 |
|
Low Level Output Pulse Width |
Twl |
Fig. 1 |
5 |
450 |
600 |
750 |
us |
|
3 |
450 |
600 |
750 |
|
Arrival Distance |
L |
Fig. 1.2. 3 |
+, - |
- |
28 |
- |
m |
|
0° |
|
+, - |
- |
20 |
- |
m |
|
30° |
|
|
|
|
+, - |
- |
12 |
- |
m |
|
60° |
|
Output Form |
Active low |
|
|
|
