| Prod Model: |
RSM-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black Only |
| Radio: |
Mototrbo |
| Material: |
PU+Kevlar |
| Work For: |
Intercom/ Walkie Talkie Communication |
| Certification: |
CE/RoHS/FCC |
| Shoulder Speaker Microphone: |
Yes |
| Size: |
Heavy Duty Type |
| Brand: |
Rtc or OEM |
| Warranty: |
12 Months |
| Special Function: |
Waterproof |
| Style: |
Handheld Microphone |
| Application: |
Walkie Talkie |
| Signal Transmission: |
Wired |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Combined Type |
| Output Impedance: |
1000-20000Ω |
| Connector(',s): |
Audio Radio Connector |
Product Description

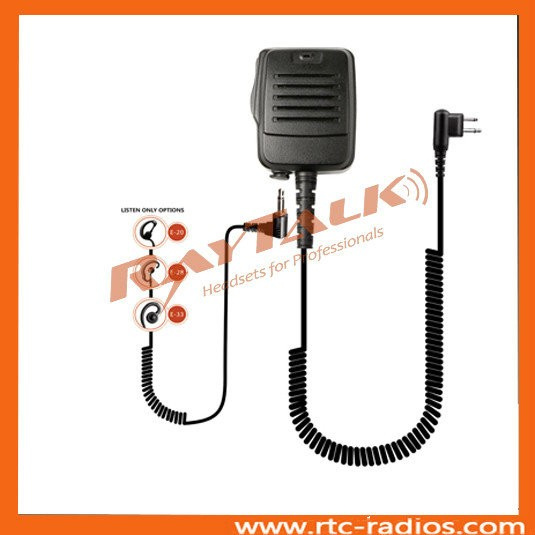

Waterproof Remote shoulder speaker microphone for MOTOTRBO DP2000/DP2400/DP2600
Descriptions:
Heavy duty shoulder microphone
Loud and clear sound with smaller microphone head
High constructed polycarbonate housing
Built in 3.5mm audio jack
Clothing Clip 360 degree rotation
Commercial applications
Technical specification |
Speaker |
Dimension |
Φ36*9.8mm |
Impedance |
8Ω |
Rated input power |
1.0W |
Maximum power |
1.5W |
Sound Pressure Level |
98±3dB at 1KHz |
Frequency Range |
50-5KHz |
Microphone |
Dimension |
Φ9.7*6.5mm |
Type |
Electret Condenser Microphone |
Impedance |
2.2KΩ |
Sensitivity |
-40dB±3dB at 1000Hz(0dB=1 V/Pa) |
Operating voltage |
2.0V |
Directivity |
Omni directional |
Wire |
Dimension |
Φ4.2 |
Durable temperature |
60ºC~20ºC |
Material |
TPU Black |
This speaker microphone has been designed for most radio applications. By adding an optional connector to this mic it can be used on many radio applications.
