| Prod Model: |
ILN-V1 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Size: |
58*1800mm |
| Tank Shell: |
Stainless Steel |
| Capacity: |
100L to 360L |
| Bracket: |
Aluminum or Stainless Steel Plate |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
ISO9001 |
| Composition: |
Water Tank, Vacuum Tube, Bracket |
Product Description
Stainless steel solar water heater
1. OEM offered
2. More appealing
3. High efficiency
4. Most economical
Stainless steel solar water heater
Features description:
1)Stainless steel plates, welded by argon arc. Water is pure and drinkable
2) Heat insulation of water tanks adopts polyurethane foam and the thickness is 55mm
3) Silicon rings to connect and seal them
4) The tubes and supports are adjustable. The power bearing is average and can assure the vacuum tubes to use for a long time
5) Whole glass vacuum tubes adopt super hard borax and silica glass
6) Absorption rate: =93%, thermal radiation rate: =6%
7) It resists 25mm hail and the using life can last 15 years
8) Temperature when exposed to sun without water: 250oC, 2.5 hours to boiling point if using single tube
9) If you use electrical appliances to aid heating and to switch off the power supple before bathing
10) Please test the water temperature before using, in order to avoid scalding
Vacuum tube: Hail-resisting borosilicate glass with high-tech selective coating ensures an efficient solar collecting, tri-target vacuum tube with its patent interference coating makes the efficiency not only improved by 12% but also with a high temperature resistantce (380oC).
Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, together with advanced welding technics to ensure it with a long lifespan (15 years).
Water tank shell: Stainless steel same with inner water tank as outer shell is much more durable and super in anti-erosion aspect, much more durable even to ocean coast weather.
Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly as long as 70~80 hours.

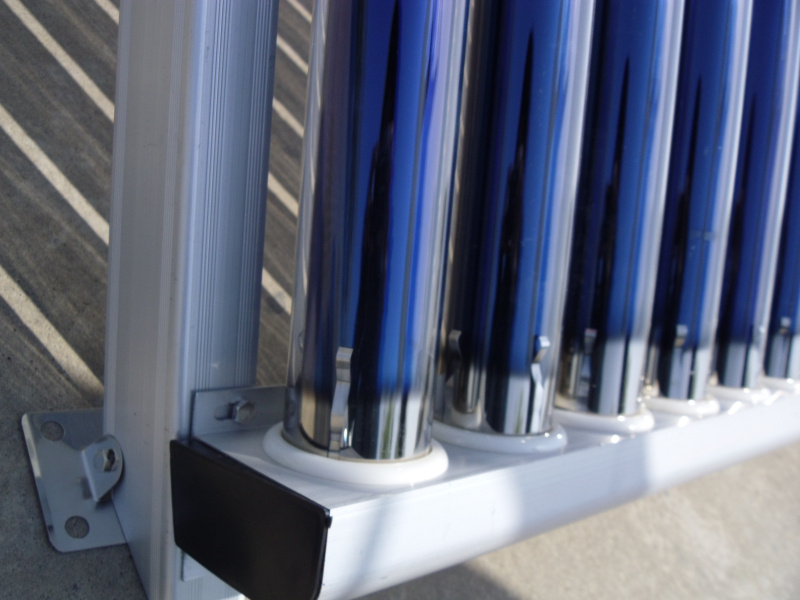

Supporting Bracket: Stainless steel plate with a good weight bearing and high wind resistance design (140 km/hr), super mechanical performance and corrosion resistance ensures a long life to ocean coast, easy installation, universal bracket suitable for either flat or slope roof installation.
Accessories: Stainless bolts & nuts, water-proof silicon rubber, anti-aging dustproof rubber seal, plastic pipe holder and ventilating cap to ensure their lives as long as other parts of the system
Optional Devices
Assistant tank, to automatically feed tap water into storage tank to keep it sufficient always
Electrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continous hot water supply
Intelligent controller, automatically controls water refill and startup of auxiliary heating device, more intelligent operation
Booster Pump, a choice for those area without tap water or with a unstable water supply
Warranty: 3 years international responsibility for integrated system and 15 years for glass vacuum tubes due to original quality problems
| Vacuum tube | Size (mm) | Φ 47× 1500 Φ 58× 1800 Φ 70× 2000 |
| Tube (pcs) | 15 / 16 / 18 / 20 / 24 / 30 / 36 |
| Material | Borosilicate glass, magnetron spluttering selective coating |
| Coating | AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN |
| Water tank | Capacity | 100 ~ 400L for inner storage tank |
| Inner tank | Food-grade stainless steel SUS304-2B |
| Insulation | High-density polyurethane integrated foam-forming |
| Tank shell | SUS201-BA Stainless steel plate |
| Bracket | Material | High-quality stainless steel plate |
| Accessories | Stainless bolts & nuts, Silicon rubber seal, Dustproof rubber seal, Plastic tube holder |
| Optional device | Electrical heater, Intelligent controller / Assistant tank, Anod magnesium |
| Tilt angle | 25° ~ 50° |
| Water output | 45-95 o C |
| Hail resistance | Φ 25mm |
Since 1995 Haining Yinuo Electric Co., Ltd has dedicated itself to saving global resources by supplying the world with superior solar water heating systems.
Haining Yinuo Electric Company is situated in the beautiful village of Haining 100 km to the port of Shanghai and covers a production area of 12, 000 square meters. It produces 48, 000 solar water heaters and 27, 00 high capacity industrial solar water heating systems per year, 60% of which are exported to overseas markets.
Haining Yinuo Electric Co. Is equipped with state of the art manufacturing equipment imported from Germany and carefully trained technicians. Its products are certified by ISO and CE and have a quality reputation throughout Germany, France, America, South Korea, South Africa and the world. Haining Yinuo Electric Company's is well known as a supplier of well designed and affordable products, and its competent and professional staff.
Haining Yinuo Electric Company's mission is to serve its customers by providing them with the most appropriate solutions to their individual requirements. Regardless of your particular circumstances, Haining Yinuo Electric Company's friendly, professional and experienced staff will tailor a special solution to your needs that will surprise and delight you.
You are welcome to surf around our website, compare our products, and ask us questions, we are just a click away from you.
