| Prod Model: |
HD400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Gas BBQ Burner |
| Advantage: |
20% Gas Be Saved |
| Use For: |
BBQ, Roaster,Cooking, Baking Oven |
| Color: |
Black |
| Character: |
Flameless |
| Fuel: |
Ng LPG |
| Life: |
Above 11000hr |
| Shape: |
Square |
| Conversion Rate: |
95% |
| Voltage: |
110 V / 220 V |
| Type: |
Built-in Gas Cooker |
| Ignition Mode: |
Piezoelectric Ceramic Ignition |
| Number Of Burner: |
Depend on Your Demands |
Product Description

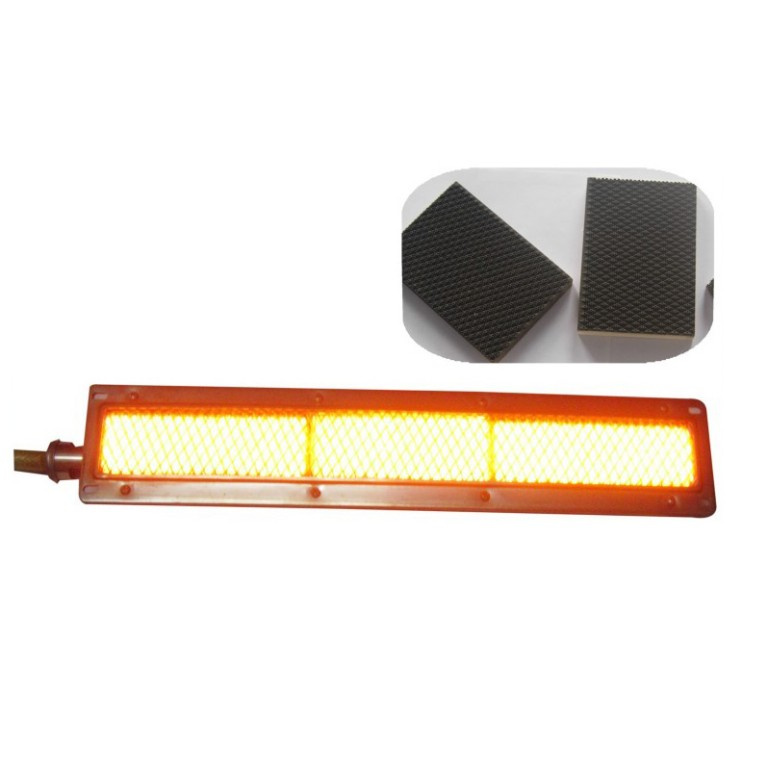

Infrared Gas Stove Burner Roaster Cooking Burner HD400
Type: HD400
Gas type: LPG or NG
Dimension: 400L*80W*60H (mm)
Weight: 0.7Kg/PC
Heat output: 2300Kcal/h or 9030BTU/h
Infrared catalystic burner features:
Energy saving: Conversion rate: ≥ 90%
Environmental protection: CO≤ 80ppm; NOx≤ 10ppm; CHx≤ 50ppm
Taking full usage of heat: 95% of energy released in the form of infrared ray; Heating the objects directly
Long life: ≥ 11000hr
Easily installed
Main purposes:
1. Coating Industry: Forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
2. The food industry: Drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc; Tea processing and baking.
3. Agriculture and animal husbandry: Keeping warm for a variety of birds, the livestock shed; Grain drying.
4. Food and beverage industry: All kinds of barbecue, fruit and vegetable dehydration.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
7. The heat treatment of metallic materials (300 --- 800 ).
8. Heating, warming and insulation for commercial buildings and workshop
Brief Introduction to Products
1. HD61 Infrared Catalytic Gas Burner uses porous ceramics as burning matrix, designed with advanced technology.
2. It can save 50%energy and reduce pollution by using Infrared Catalytic Gas Burner for heating, drying and heat preservation. This is because the Infrared Catalytic Gas Burner mixes the gas and the air completely before burning to make sure the whole combustion and reduce the pollutant discharge.
3. When the Infrared Catalytic Gas Burner burning. It can radiate infrared ray that is of strong penetration to arouse resonance of moisture and let the heat permeates the heating object equably.
4. It can ensure that heat availability is well-proportioned as well as improve the quality of heating and effciency of drying
Items
|
Technical parameters |
Types |
natural gas (NG), liquefied petroleum gas (LPG)
|
|
Light-off temperature |
≥ 350 |
|
complete combustion temperature |
≤ 380 |
Heat source temperature
|
around 850 |
|
Baking temperature range |
30---850 |
|
Wavelength range |
1.9m--15m |
Furnance pressure
natural |
gas 150mmAq; liquefied petroleum gas 280mmAq
|
Table 2:
Comparison table for all kinds of energy consumption
Furnace type
Parameters |
Electronic
cooker
|
Oil furnace |
Coal-fired furnace
|
Infrared catalytic heaters |
Energy requirement
|
10, 000Kcal |
10, 000Kcal |
10, 000Kcal |
10, 000Kcal |
|
Temperature |
180 |
180 |
180 |
180 |
Energy consumption
|
Electricity(15 kW/h)
|
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
|
LPG(0.9Kg) |
Heating time
|
20 minutes
|
40 minutes |
90 minutes |
5-8 minutes
|
