| Prod Model: |
HD242 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Fuel: |
LPG Ng |
| Heating Type: |
Infrared Radiant Heating |
| Technology: |
Rare-Earth Catalytic in Gas Burner |
| Advantage: |
20% Gas Energy Saved |
Product Description

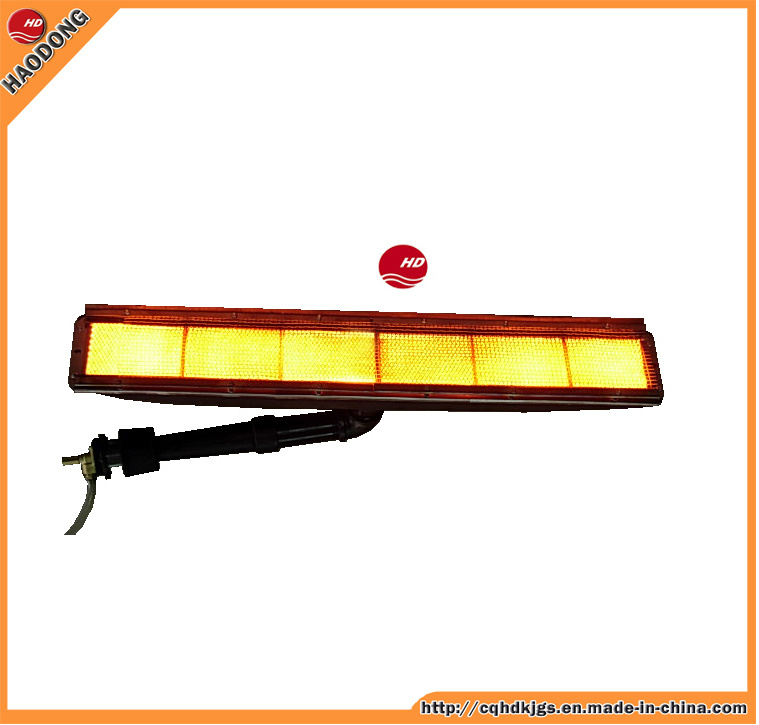

High Heat Output Infrared Lamp Burner (HD242)
Detailed product description:
Type: HD242
Gas type: LPG or NG
Dimension: 840(L) X 130(W) X 175(H) mm
Weight: 11.7Kg/PC
Heat output: 8120Kcal/h or 9.4KW/h
Gas consumption: 0.68Kg/hr for LPG at the pressure rating of 2.9Kpa
0.74m3/hr for NG at the pressure rating of 2.0Kpa
Company Profile:
We are specialized in manufacture of wide range of Infrared Burner, Catalytic burner, gas burner, BBQ grill burner, gas BBQ burner, industrial burner, oven heater, gas heater.
Keeping abreast with the latest advancements in technology, being strong backed by senior engineers and technicians, through several years' development, we now have a factory with professional team which enable us to become a leading & reliable manufacturer in China
Features:
1. Energy saving: Conversion rate: ≥ 90%
2. Environmental friendly: CO≤ 80ppm; NOx≤ 10ppm; CHx≤ 50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray and heating the objects directly;
4. Long useful time: ≥ 11000hr
5. Easily installed
Applied Range:
1. Food Industry: Rice Biscuit( rice cookies covered with snow-like sugar )assembly line, grilled chicken, biscuit, egg roll, roasting shredded squid oven, oven for roast duck, smokeless oven, griddle, middle eastern oven, hot pot oven, roasting pachyrhizus oven, snack car, soup oven, cooking assembly line, infra-red gas baking pan, deep-fry assembly line, water-removing machine, baking, etc.
2. Painting Industry: Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
3. Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line.
4. Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching.
5. Paper industry: All kinds of paper dry lines and auxiliary drying heat wall.
6. Farming and animal husbandry: Heating of barton, heating of crops, grain dryer.
Furnace type
Parameters |
Electronic
cooker |
Oil furnace |
Coal-fired furnace |
Infrared catalytic heaters |
Energy requirement |
10, 000Kcal |
10, 000Kcal |
10, 000Kcal |
10, 000Kcal |
|
Temperature |
180 |
180 |
180 |
180 |
|
Energy consumption |
Electricity(15 kW/h) |
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg) |
LPG(0.9Kg) |
|
Heating time |
20 minutes
|
40 minutes |
90 minutes |
5-8 minutes |
Items
|
Technical parameters |
|
Light-off temperature |
≥ 350 |
|
complete combustion temperature |
≤ 380 |
Heat source temperature
|
around 850 |
|
Baking temperature range |
30---850 |
|
Wavelength range |
1.9m--15m |
Furnance pressure
natural |
gas 150mmAq; liquefied petroleum gas 280mmAq
|
|
Model |
Length
(mm) |
Width
(mm) |
Height(mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
|
NG |
LPG |
|
m 3 /h |
kg/h |
KW/h |
Kcal/h |
3/8 |
|
HD242 |
840 |
130 |
175 |
11.7 |
0.74 |
0.68 |
9.4 |
8120 |
