Prod Model: |
HW-A-250 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |

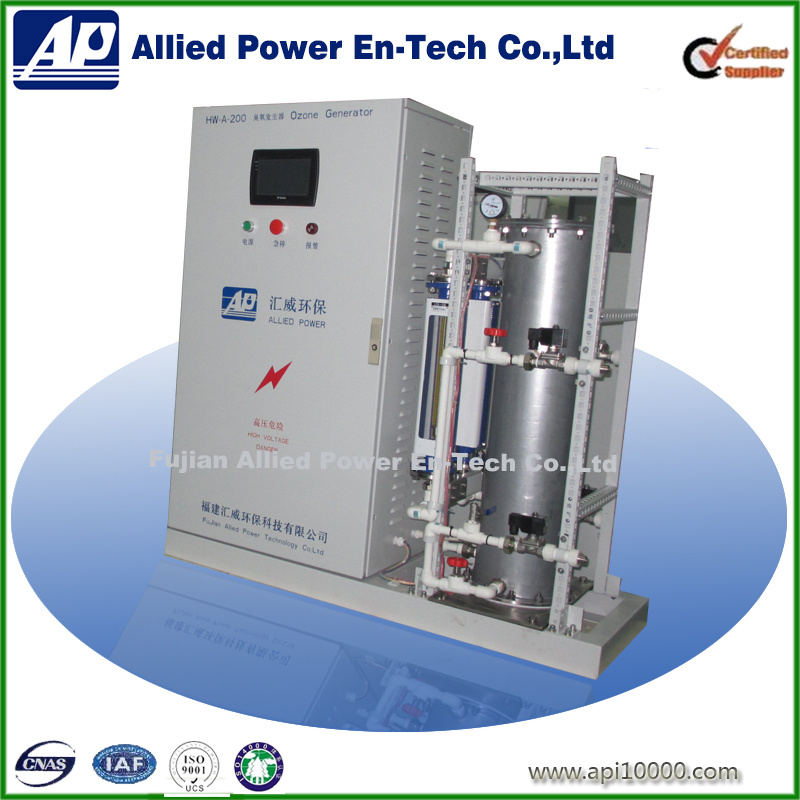

Ozone Generator |
Output: |
250g/H |
Rated Power: |
4.4kw |
Concentration: |
35mg/L |
Air Flow Rate: |
7m3/H |
Flow Of Cooling Water: |
1m3/H |
Gas Feed: |
Air |
Air Dew Point: |
-45 |
Size: |
1400X650X1500mm |
Powe Supply: |
380V/50Hz |
Product Description
Item NO. | Output | Concentration | Rated power | Air flow rate | Flow Of Cooling Water | Air dew point | Power supply (V/Hz) | Weight |
HW-A-250 | 250g/h | 35mg/L | 4.4kw | 7m3/h | 1m3/h | -45° | 380V/50HZ | 280kg |
Technical details
High frequency invert power supply system with own international patents.
Micro-gap corona discharge technology, quartz glass tubes honeycomb discharge.
Water cooling system.
Pure oxygen or air as gas feed.
Stainless steel ozone reaction cavity and discharging tubes.
Wecon PLC micro computer control, touch screen human-machine display.
Multiple proteftion designs in case of over current,overvoltage, overheeated, high and low air pressure.
Efficiency& reliable
Power factor>0.95.
PFC≥0.95
The adverage power consumption of per kilogramozone output is about 7 degree.
Ozone concentration could reach 230mg/l with pure oxygen asgas feed.
Multiple abnormality protection. Light alarm system.
Easy operatiion
Ozone concentration adjustable.
Ozone production adjustable.
Time switch machine Settings, realize unattended.
Transport gas without any external equipments during certain scope.
Group control function, digital remote monitoring
Real-time analysis and system failure diagnosis.
Air supply Ozone generator
Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
HW-A-10 | 10g | 0.1m3/h | 0.2kw | 8.3N*L/min |
HW-A-20 | 20g | 0.1m3/h | 0.4kw | 16.7N*L/min |
HW-A-30 | 30g | 0.1m3/h | 0.6kw | 25N*L/min |
HW-A-50 | 50g | 0.2m3/h | 1kw | 41.7N*L/min |
HW-A-80 | 80g | 0.3m3/h | 1.5kw | 66.7N*L/min |
HW-A-100 | 100g | 0.4m3/h | 1.7kw | 83.3N*L/min |
HW-A-150 | 150g | 0.6m3/h | 2.5kw | 7.5N*m3/h |
HW-A-200 | 200g | 0.8m3/h | 3.4kw | 10N*m3/h |
HW-A-250 | 250g | 1m3/h | 4.4kw | 12.5N*m3/h |
HW-A-300 | 300g | 1.2m3/h | 5.1kw | 15N*m3/h |
HW-A-500 | 500g | 2m3/h | 8.5kw | 25N*m3/h |
HW-A-800 | 800g | 3.2m3/h | 136kw | 40N*m3/h |
HW-A-1K | 1kg | 4m3/h | 17kw | 50N*m3/h |
HW-A-1.2K | 1.2kg | 5m3/h | 21kw | 60N*m3/h |
HW-A-1.5K | 1.5kg | 6m3/h | 26kw | 75N*m3/h |
HW-A-3K | 3kg | 12m3/h | 51kw | 150N*m3/h |
HW-A-5K | 5kg | 20m3/h | 85kw | 250N*m3/h |
HW-A-10K | 10kg | 40m3/h | 170kw | 500N*m3/h |
HW-A-20K | 20kg | 80m3/h | 340kw | 1000N*m3/h |
Oxygen supply ozone generator
Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
HW-O-10 | 10g | 0.1m3/h | 0.1kw | 1.7N*L/min |
HW-O-20 | 20g | 0.1m3/h | 0.2kw | 3.3N*L/min |
HW-O-30 | 30g | 0.1m3/h | 0.3kw | 5N*L/min |
HW-O-50 | 50g | 0.1m3/h | 0.5kw | 8.3N*L/min |
HW-O-80 | 80g | 0.15m3/h | 0.8kw | 13.3N*L/min |
HW-O-100 | 100g | 0.2m3/h | 0.9kw | 16.7N*L/min |
HW-O-200 | 200g | 0.4m3/h | 1.8kw | 2N*m3/h |
HW-O-300 | 300g | 1m3/h | 2.5kw | 3N*m3/h |
HW-O-500 | 500g | 1m3/h | 4.3kw | 5N*m3/h |
HW-O-700 | 700g | 1.4m3/h | 6kw | 7N*m3/h |
HW-O-800 | 800g | 1.6m3/h | 7kw | 8N*m3/h |
HW-O-1K | 1kg | 2m3/h | 8.5kw | 10N*m3/h |
HW-O-2K | 2kg | 4m3/h | 17kw | 20N*m3/h |
HW-O-2.5K | 2.5kg | 5m3/h | 22kw | 25N*m3/h |
HW-O-3K | 3kg | 6m3/h | 26kw | 30N*m3/h |
HW-O-5K | 5kg | 10m3/h | 45kw | 50N*m3/h |
HW-O-10K | 10kg | 20m3/h | 85kw | 100N*m3/h |
HW-O-30K | 30kg | 60m3/h | 260kw | 300N*m3/h |
HW-O-50K | 50kg | 100m3/h | 440kw | 500N*m3/h |
Ozone water generator
Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
HW-OW-10 | 10g | 0.1m3/h | 0.8kw | 1.7N*L/min |
HW-OW-20 | 20g | 0.1m3/h | 0.9kw | 3.3N*L/min |
HW-OW-30 | 30g | 0.1m3/h | 1.1kw | 5N*L/min |
HW-OW-50 | 50g | 0.1m3/h | 2.2kw | 8.3N*L/min |
