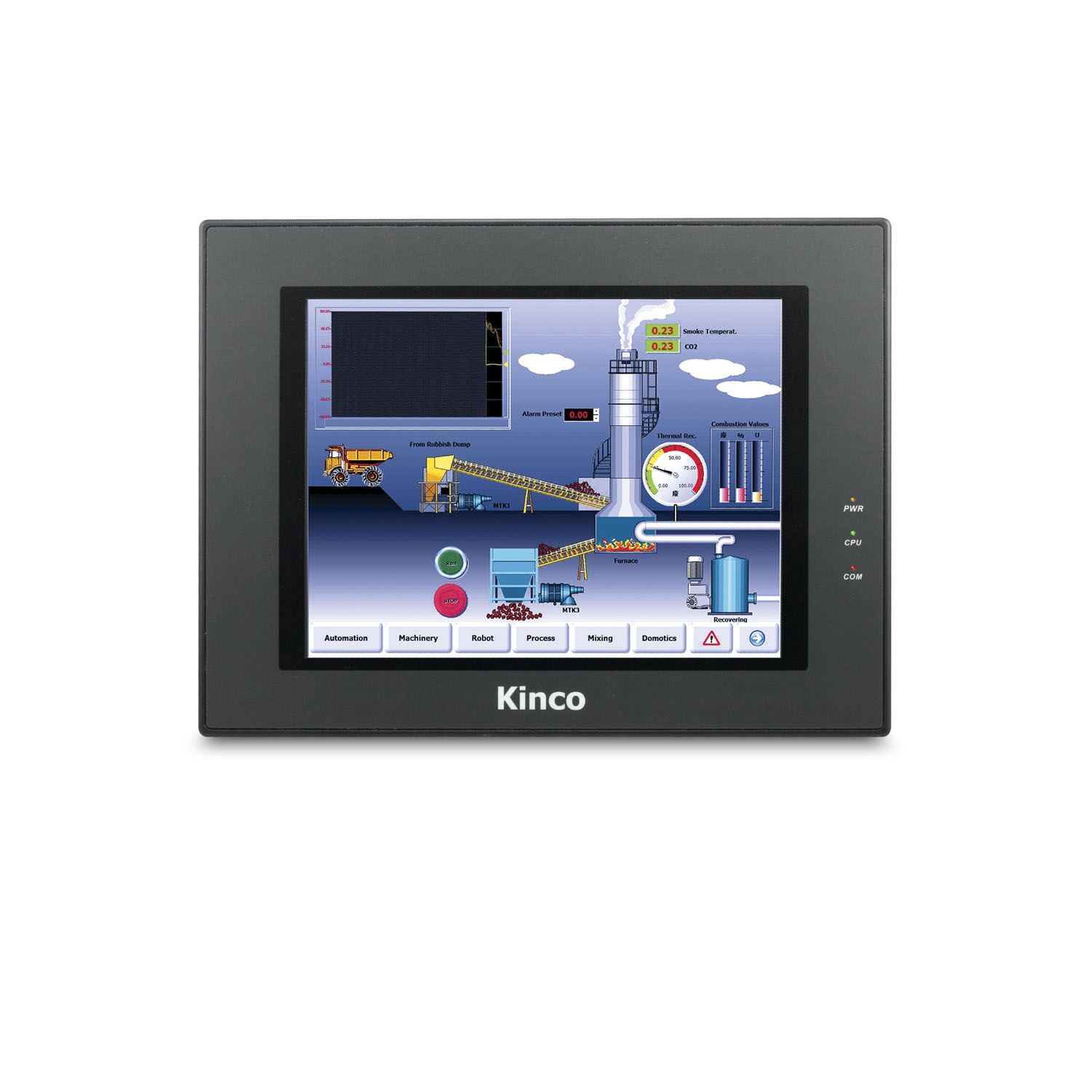

| Prod Model: |
MT4513T/MT4513TE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
10.4" TFT, 65536 Colors |
| Resolution: |
800*600 |
| Rated Power: |
8W |
| Rated Voltage: |
DC24V |
| Dimensions(Mm): |
310*230*55mm |
| Protection Class: |
IP 65 |
Product Description
Kinco HMI is the leader in HMI field, we have the leading market position in domestic, it is highly praised in the industry because of its complete product ranges, stable and reliable hardware, user-friendly configuration software and high cost performance.
MT4000: Middle-End HMIs Apply to Mainstream Applications
TFT display, 65K colors
ARM-based CPU
A USB slave integrated to speed up HMI program downloading
Three COM ports Integrated, communicating with 3 different protocols of controller at the same time
|
Model |
MT4513T |
MT4513TE |
|
Performance specification |
|
Display |
10.4" TFT |
|
Resolution |
800*600 |
|
Color |
65536 |
|
Backlight |
LED |
|
Brightness |
300cd/m 2 |
|
Backlight Life |
50000 Hours |
|
Touch Panel |
4-Wire Precision Resistance Network |
|
Processor |
400MHz RISC |
800MHz RISC |
|
Memory |
128M FLASH + 64M SDRAM |
|
Expandable Memory |
None |
1 USB Host |
|
Recipe Memory & RTC |
512KB + RTC |
|
Printer Port |
Serial Port |
Serial Port/USB |
|
Ethernet |
None |
Support |
|
Program Download |
USB SLAVE/Serial Port |
USB SLAVE/Serial Port/Ethernet port |
|
COM Port |
COM0:RS232/RS485-2/RS485-4, COM2:RS232 |
|
Electrical Specification |
|
Rated Power |
8W |
|
Rated Voltage |
DC24V |
|
Input Range |
10~28VDC |
|
Power Down Allowed |
<5ms |
|
Insulation Resistance |
Greater than 50MΩ@ 500V DC |
|
Dielectric Strength Test |
500 VAC 1 minute |
|
Structure Specification |
|
Shell Color |
Black |
|
Shell Material |
PC+ABS |
|
Dimensions(mm) |
310×230×55mm |
|
Cutout Size(mm) |
298×218 mm |
|
Weight |
2 Kg |
|
Environment Specification |
|
Operating Temperature |
0~45ºC |
|
Operating Humidity |
10~90% Non-Condensing |
|
Storage Temperature |
-10~60ºC |
|
Storage Humidity |
10~90% Non-Condensing |
|
Shockproof Test |
10~25Hz (X, Y, Z Direction, 2G, 30 Minutes) |
|
Cooling Method |
Natural Air Cooling |
|
Certification |
|
Degree of Protection |
IP65 (Front Panel) |
|
CE Certification |
Comply with EN61000-6-2:2005 and EN61000-6-4:2007Standards |
|
FCC Compatibility |
Complies with FCC Class A |
