| Prod Model: |
MT4414T/MT4414TE/MT4414TE-CAN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

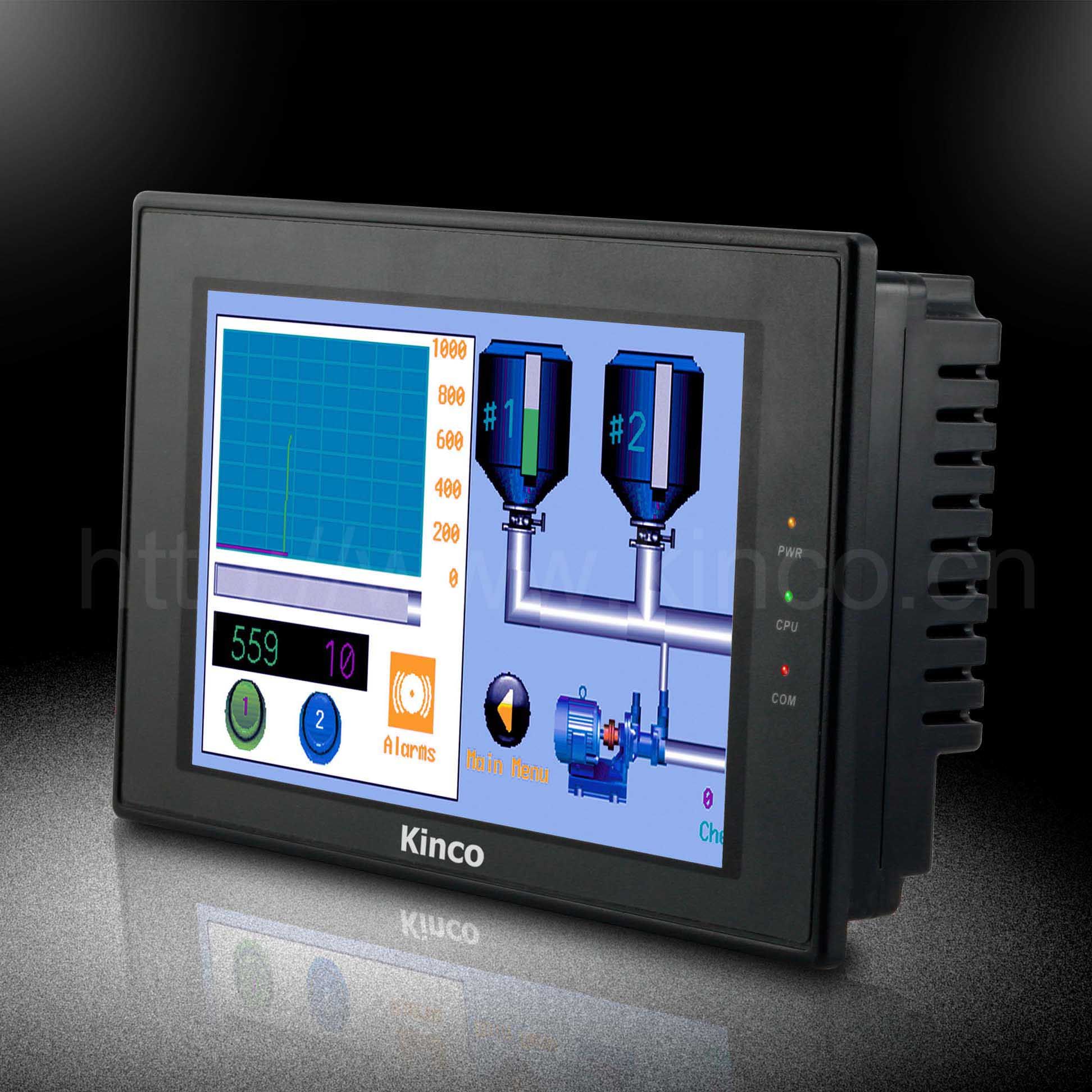

HMI/Human machine interface, MT4414T
1. Manufactured
2. Customizable solution
3. 7'' 16: 9 TFT, 65536 Colors
4. Memory: 128M FLASH + 64M SDRAM
5. CE and FCC pass
6. High-resolution, widescreen
HMI/Human machine interface
Model |
MT4414T |
MT4414TE |
MT4414TE-CAN |
|
Performance specification |
|
Display |
7" 16:9 TFT |
|
Resolution |
800*480 |
|
Color |
65536 |
|
Backlight |
LED |
|
Brightness |
300cd/m 2 |
|
Backlight life |
50000 hours |
|
Touch Panel |
4-wire precision resistance network |
|
Processor |
32-bit 400MHz RISC |
32-bit 800MHz RISC |
|
Memory |
128M FLASH + 64M SDRAM |
|
U Disk |
None |
1 USB host |
|
SD Card |
None |
|
Recipe memory & RTC |
512KB + RTC |
|
Printer port |
Serial port |
Serial port/USB port |
|
Ethernet |
None |
Support |
|
Program download |
USB SLAVE/Serial port |
USB SLAVE/Serial port/Ethernet port |
|
COM port |
COM0:RS232/RS485-2/RS485-4,COM2:RS232 |
|
Expansion Port |
None |
CANopen |
|
Software |
EV5000 V1.6 |
|
Electrical specification |
|
Rated power |
4W |
|
Rated voltage |
DC24V |
|
Input range |
21-28VDC |
|
Power down allowed |
<3ms |
|
Insulation resistance |
Greater than 50MΩ@ 500V DC |
|
Dielectric strength test |
500 VAC 1 minute |
|
Structure specification |
|
Shell color |
Black |
|
Shell material |
ABS |
|
Dimensions(mm) |
204×150×37mm |
|
Cutout size(mm) |
192×138mm |
|
Weight |
0.75 Kg |
|
Environment specification |
|
Operating temperature |
0-45ºC |
|
Operating humidity |
10-90% non-condensing |
|
Storage temperature |
-10-60ºC |
|
Storage humidity |
10-90% non-condensing |
|
Shockproof test |
10 -25Hz (X, Y, Z direction, 2G, 30 minutes) |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
IP65 (front panel) |
|
CE certification |
Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards |
|
FCC compatibility |
Complies with FCC Class A |
|
Outline |
Kinco Electric (Shenzhen) Ltd. (hereinafter called "Kinco") as a subsidiary of Kinco Automation (Shanghai) Ltd., are private high-tech enterprises specialized in the research, development, and production of automation products. Kinco controls such companies as eView HMltek (Shenzhen) Ltd., JAT KINCO Electric Shenzhen Ltd., and Beijing KDN Automation Co., Ltd., and owns two well-known brands of eView and Kinco. In addition, it has established production lines with proprietary intellectual property rights such as industrial human-machine interfaces, AC servo systems, and stepper systems, PLC and industrial fieldbus products. Kinco has become an outstanding representative of the automation control industry in China.
