| Prod Model: |
KRCN-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Frequency Conversion |
| Delivery Time: |
in 5 Working Days |
| Water Storage Mode: |
Water Storage Type |
| Capacity: |
100L |
| Installation: |
Floor Type |
| Pressure: |
Pressurized |
| Bearing Or Not: |
Closed |
| Control Mode: |
Numerical Control |
| Interior Material: |
Stainless Steel |
| Housing Material: |
Stainless Steel |
| Usage: |
Swimming Pool |
| Certification: |
ISO9001 |
Product Description

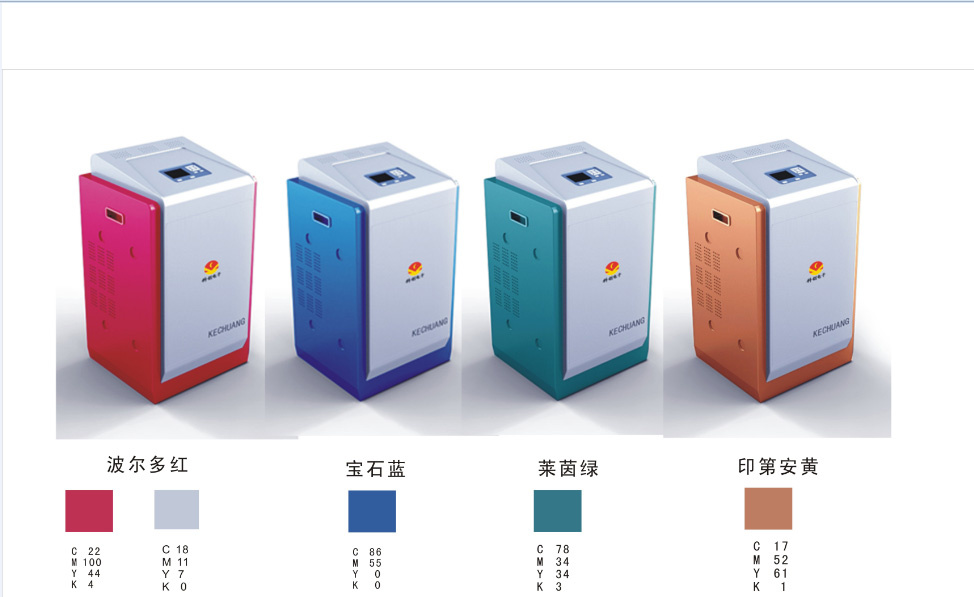

IGBT Induction Water Heater For Bathing/Warming Advantage:
1.Produce magnetized water, do not produce scale formation.
2. Constant power, whether the voltage level is high or not, the power is always constant, to make sure the heater using life.
3.Soft start and soft off, adopt the soft start and soft off technology, to start and turn off the machine will not produce effect to other household appliances.
4.High efficiency, convenient to use, long using life.
Induction Water Heater For Winter Warm-keeping:
Model
Rated Power(KW)
Rated Current
(A)
Voltage
(V)
transversal area(Copper core)MM²
electrothermal
efficiency(%)
thermal utilization factor
(%)
System Pressure
MPa
Hot Water
Productivity
(45ºC)
Water Inlet
Hot Water
Productivity
(55ºC)
Water Inlet
Water Inlet &Outlet
(DN)
Heating Area
(M²)
KRCN-5
5
25
220
6
≥98
100
≤0.3
2.8 L/Min
2L/Min
32
80-100
KRCN-10
10
15
380
6
≥98
100
≤0.3
5.6 L/Min
4L/Min
32
150-200
KRCN-30
30
45
380
16
≥98
100
≤0.3
16.8L/Min
12L/Min
32
560-600
KRCN-60
60
90
380
25
≥98
100
≤0.3
33L/Min
24L/Min
32
1000-1200
Induction Water Heater Technical Principle:
1. Variable frequency technology.
2. Water and electricity separation technology.
3. Electromagnetic induction heating technology
4. Infrared auxiliary heating technology
Zhengzhou Kechuang Electronic Co., Ltd, as a king induction heating machine manufacturer in China, we have the following advantages:
1. Induction heating machine power from 8KW-1000KW, with frequency range from 0.1kHz-500kHz.
2. Main circuit adopts Siemens IGBT series resonance circuit.
3. We focus on the metal parts heat treatment production line.
4. We cooperate with the Zhengzhou University.
5. We have CE, SGS certification.
Zhengzhou Kechuang Electronic Co., Ltd is Henan high& new technology enterprise, China heat treatment association membership. From the company's founding, Kechuang Electronic always takes the scientific& technological innovation as the company development driving force. Company has obtained more than ten national patents, has won many many national and provincial science&technology innovation award. Set up henan province induction heating engineering center, has developed hundreds of market welcome products. Has already passed the European Union CE certification, not only in all over China, Asia, Europe, America, Africa, Oceania, everywhere you can see kechuang products and also the engineer local service figure.
