| Prod Model: |
XG-80B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE,SGS, ISO |
| Warranty Period: |
12 Months |
| Application: |
Gear Ring Hardening |
Product Description

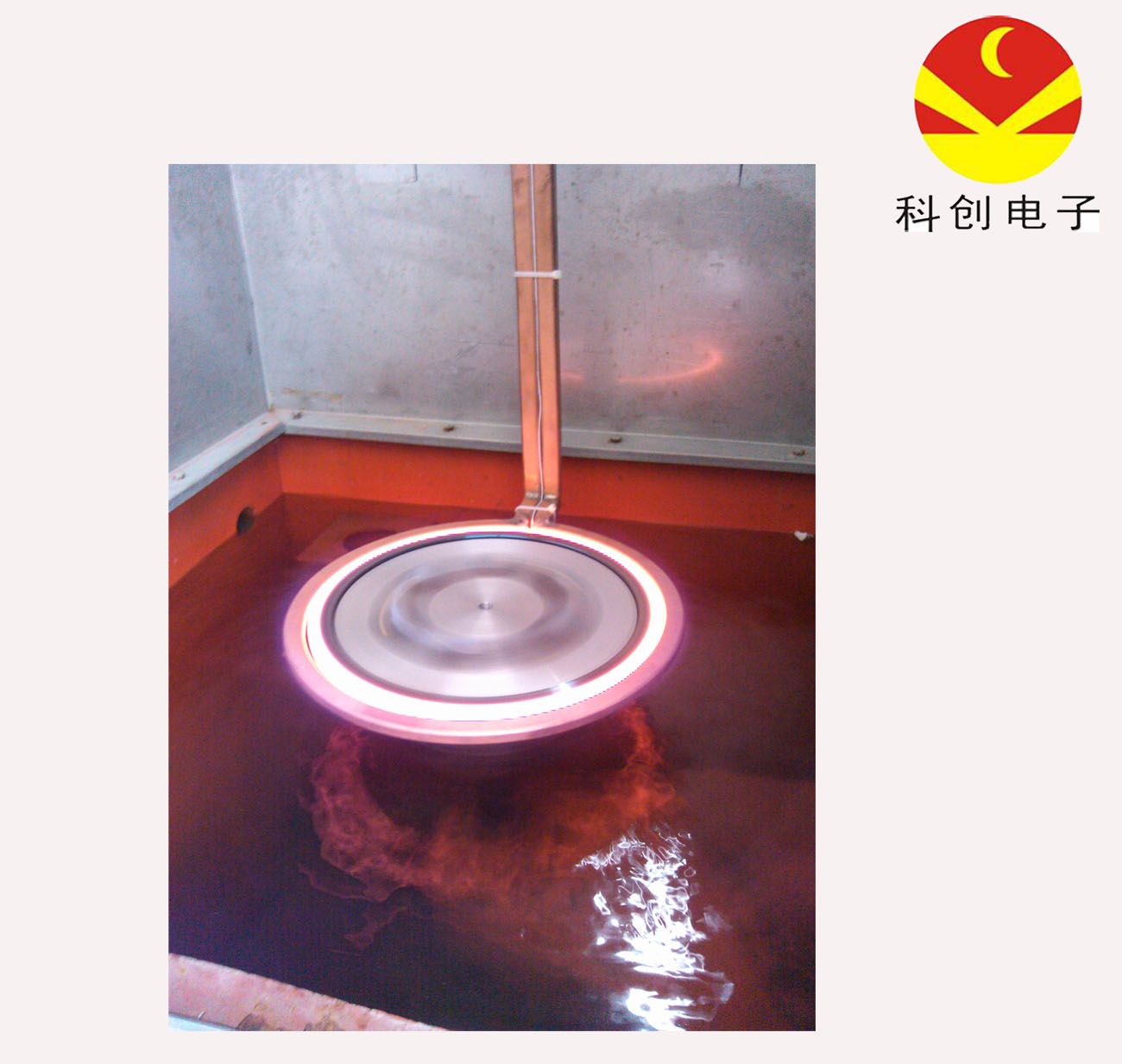

High Frequency Induction Machine For Gear Ring Quenching (XG-80B) Technical Parameters:
| Model | XG-80B |
| Input Power supply | Three Phases 380V 50HZ/60HZ |
| Rated Input Power | 80KVA |
| Max Input Current(Single Phase) | 120A |
| Oscillating Frequency | 20-80KHZ |
| Frequency Control Precision | ±1.5KHz |
| Working Water Pressure | 0.15-0.3Mpa |
| Memo | One main body, one transformer |
IGBT Induction Heater Equipment Features:
Ø IGBT series resonance, high voltage, low current, minimum loss, save energy 10%-20% than the parallel resonance.
Ø Adopt ZVT technology, power factor is as high as above 95%, the highest efficient power supply in the world.
Ø Automatic frequency tracking, the start-up success rate up to 100%.
Ø Constant power output, better to guarantee product quality.
Ø No high voltage danger, safe and reliable, easy to operate.
Ø Stable quality, solid and durable.
Ø The power, frequency, loading can do the modular combination, form the one main body with one transformer single frequency, one main body with one transformer double frequency, one main body with two transformers single frequency, one main body with two transformers double frequency, two main bodies with one transformer single frequency all different products, greatly improve the equipment use efficiency.
CNC Hardening machine tool:
1. Technical parameters:
Ø Vertical type universal machine tool: Φ10-Φ200,500-3000mm
Ø Horizontal type universal machine tool: Φ50-Φ200,500-10000mm
Ø Disk type universal machine tool: Φ50-Φ1000mm
Special-purpose machine tool: can design and make as the customers' requirement.
2. Features
Ø Running with high precision
Ø Control function is perfect, can use single shaft, multiple shaft control system.
Ø Can use together with the power supply power, meet the same part different power requirement.
Ø One-touch operation
Vertical type machine tool, horizontal type machine tool, disk type machine tool.
Induction Heater Water Cooling System:
1.Technique data:
Input voltage;three phase 380V±10%
Rated voltage: three phase 380V 50Hz
Cooling capacity:31100Kcal/h-1806000Kcal/h
2. Feature:
Cooling water tower movement all adopt in thermal efficiency high copper tube, let the working fluid (water or other liquid) in its line through, through the fan and air for natural heat exchange, one-time finish. It is not only energy conservation and environmental protection,but also tube is clean and unobstructed, reduce the failure rate, prolong the useful life of the equipment. Closed circulating cooling reduce pipe corrosion and scaling, do not need to pool, covers an area of small, convenient to move, energy saving, simple operation.
Customer service:
Call or e-mail us any time. Before you place your order, we will be happy to discuss your detailed requirements with you and help you find a selection of machine that is just right for your market.
Quick Delivery:
With your wide requested of faucets with even less than our MOQ, we are able to fulfill most requests within short days of your order.
Promise:
Customers Satisfaction, provide good quality and reasonable price and constant after sale service to be engaged in 100% of us .
Induction Heater power frequency Selection:
You can just let us know the type, power, frequency, quenching ways, quenching hardness ,depth and materials, choosing proper frequency according to production efficiency. According to specific workpiece shape, material, welding material and so on to decide. choosing according to smelter furnace and production efficiency, choosing according to product speed, materials, temperatures and so on. If is the axial, please tell us the diameter of the axial? If you have drawings please send us. please contact us more specification.
Zhengzhou Kechuang Electronic Co., Ltd, as a king induction heating machine manufacturer in China, we have the following advantages:
1. Induction heating machine power from 8KW-1000KW, with frequency range from 0.1kHz-500kHz.
2. Main circuit adopts Siemens IGBT series resonance circuit.
3. We focus on the metal parts heat treatment production line.
4. We cooperate with the Zhengzhou University.
5. We have CE, SGS certification.
Zhengzhou Kechuang Electronic Co., Ltd is Henan high& new technology enterprise, China heat treatment association membership. From the company's founding, Kechuang Electronic always takes the scientific& technological innovation as the company development driving force. Company has obtained more than ten national patents, has won many many national and provincial science&technology innovation award. Set up henan province induction heating engineering center, has developed hundreds of market welcome products. Has already passed the European Union CE certification, not only in all over China, Asia, Europe, America, Africa, Oceania, everywhere you can see kechuang products and also the engineer local service figure.
