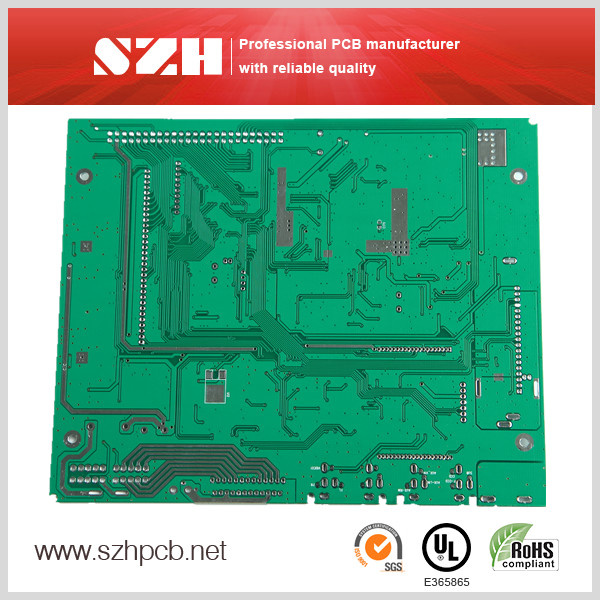

printed circuit board :
1.Board thickness: 1.6mm
2.Material: FR4
3.Surface treatment: Immersion gold
4.Copper Thickness:1oz
Our PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality,competitive Price & Best Service
4.100% E-tested PCB
| Technical capability & support |
| |
| Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry. |
| |
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm | | Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm | | Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm | | Min Trace | 0.1mm | Min Annular Ring | 0.1mm | | Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm | | Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm | | Board Wrap | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm | | Solder Mask | Green, Yellow, Red, Black, Blue, White | | Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP | | Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic | | Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD | | CAM software | Genesis, CAM350 |
|
| |
| Service for productoion |
| |
| Sunthone employs and develops a team of experienced management directors and efficient production workers, with its sustainable development, career planning, advanced training-system and satisfactory welfare for all staff. On the other hand, Sunthone strives to improve quality and lead time through management and technology innovation. |
| Standard leatime |
| Double sides | 4WD | | 4 layers | 5WD | | 6 layers | 6WD | | 8 layers | 7WD | | 10 layers | 8WD | | 12 layers | 8WD | | 14 layers | 9WD | | More than 16 layers | Up to difficulty |
|
| |
| Competitive Price |
| Sunthone puts many PCB prototype and sample jobs on one panel, and produces them together. And our experienced management team keep the management and production cost under controlled. These advantages provide enough profits to Sunthone, as well as greatly reduce customer's purchase cost. |
| |
| Sunthone works with customers to reduce their purchase cost, by our rich experience in management and manufacture, maximized utilization of materials and facilities, and well-trained operational workers. Sunthone's price can be as low as 20% only of some other competitors on some cases. |
| Management Innovation | Raw Material Utilization Rate | Facilities Utilization Rate | Labor Efficiency | | Sunthone | 100% | 100% | 95% | | Competitors | 50% | 30% | 50% | | Values | Maximized raw material utilization reduces the material cost greatly, and enables Sunthone to use better raw materials. | Maximized facilities utilization improves Sunthone's production efficiency and shorten the lead time. | High labor efficiency reduces labor cost, and enables Sunthone to provide better training and welfare for the workers. | | Customer Benefits | Better quality with better raw materials. | Saves valuable time and money for customer. | Well trained and efficient worker improves quality and lead time. |
|
|
| Others service can be provided |
Quick response, Sunthone will reply Customer's any enquiry within 2 hours;
More than 180 type of PCB can be worked out Every day;
24 hours technique Support;
24 hours Engineering Gerber files treatment.
24 hours English Engineering Questions Confirmation by E-mail.
Experienced Impedance Designer. |
Products Show:
Testing Procedures For PCB Board:
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
* AOI (Automated Optical Inspection)
Quotation Requirement :
--- Following specifications are needed for quotation:
a) Base material
b) Board thickness
c) Copper thickness
d) Surface treatment
e) color of solder mask and silkscreen
f) Quantity

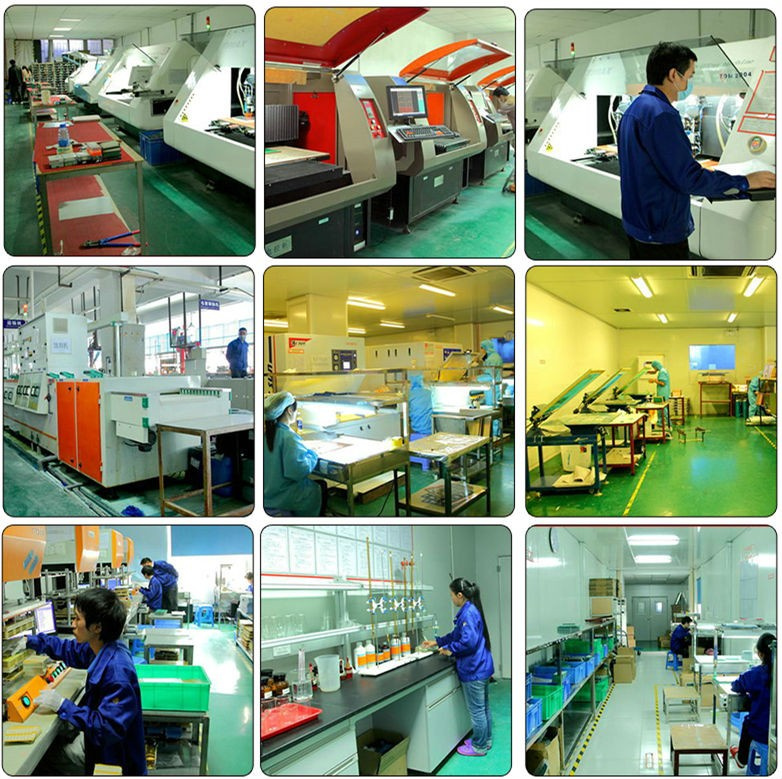

Equipment
Certification
Delivery Time for PCB board:
1) PCB production time: sample: 3-4 days / mass production: within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us !
