| Prod Model: |
P4.81 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
500mmx500mmx77mm |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Application: |
Events |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Scanning Mode: |
1/13 Scan |
| Pixel Configuration: |
SMD3528 Black Face |
| Pixel Pitch: |
4.81 Mm |
| Pixel Density: |
43264dots/M2 |
| System Operating Platform: |
Window 7 and Window 8 |
Product Description
Features:
1. Pixel pitch available in 3.91mm, 4.81mm
2. Die-casting aluminum housing, rugged, good-looking. To ensure that the display of the seamless installation.
3. Super lightweight and thin, light-weight at 8.6kg/tile. Ultra-slim at 77mm depth.
4. Using E-energy universal voltage power supply, stable performance
5. Receiving card+HUB no flat cable. Stable performance, more reliable connections.
6. No tools to assemble and dismantle, less worker and saves the cost.
7. It suit for hanging-up, each hanging beam can bearing 10-15pcs cabinets.

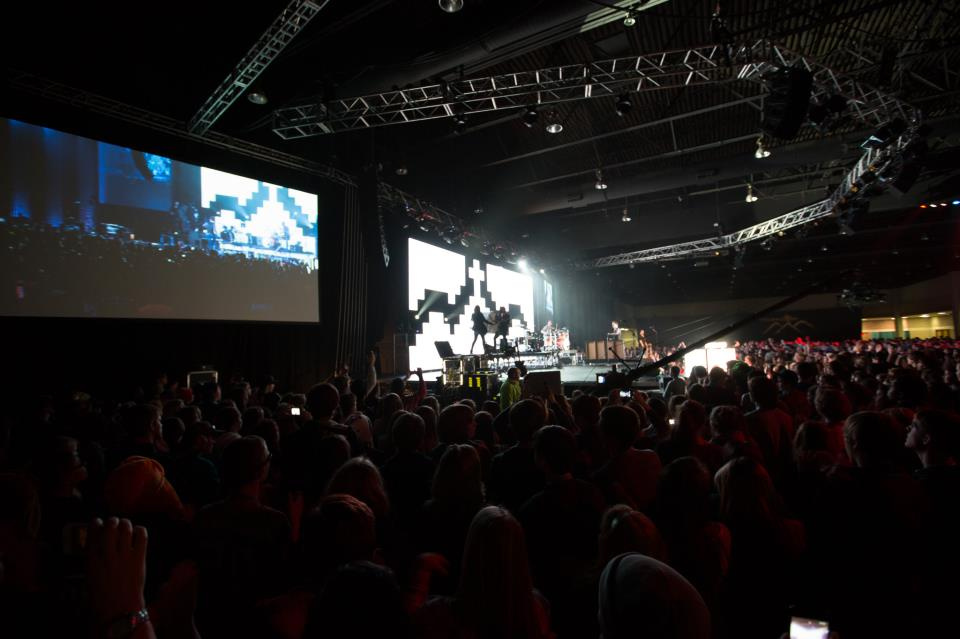

Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
|
Model |
P3.91 |
P4.81 |
|
Pixel pitch |
3.91mm |
4.81mm |
|
Pixel configuration |
1R1G1B |
1R1G1B |
|
LED type |
SMD2020/SMD2121 |
SMD 3528 |
|
Module size |
250x250mm |
250x250mm |
|
Module resolution |
64x64 |
52x52 |
|
Cabinet resolution |
128x128 |
104x104 |
|
Cabinet size |
500x500mm |
500x500mm |
|
Density |
65536dots/m2 |
43264 dots/m2 |
|
Brightness |
≥1400 NIT |
≥ 1800 NIT |
|
Scan method |
1/16 |
1/13 |
|
Best view distance |
≥4m |
≥ 5m |
|
Max. power consumption |
250W/panel |
|
Ave. power consumption |
120W/panel |
|
Cabinet Weight |
8.6Kg |
|
Grey scale |
16 bit\65536 step |
|
Color |
281 Trillion |
|
Refresh rate |
≥960Hz |
|
Best view |
Vertical: 120°, Horizontal: 120° |
|
Color temp |
6500-9500K |
|
Frame frequency |
≥60Hz |
|
Out of control pixel rate |
<1/10000 |
|
MTBF |
>5000 hours |
|
Lifespan |
50000 hours |
|
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
|
Working voltage |
AC 110/220v 50-60Hz |
|
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Single-mode optical fiber: 20km |
|
Operation temperature |
-20 to +40 |
|
Working humidity |
10% to 80% |
|
Protection level |
Indoor use |
