| Prod Model: |
P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
SMD3528 Black Face |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777dots/M2 |
| Average Power Consumption: |
1000W/M2 |
Product Description
Features
1. Normal cabinet, can be fast installed.
2. Waterproof testing for each cabinet before the delivery.
3. Locating beam and connection plate make the screen fast to be installed.
4. Independent back cover and lock, not only moisture-proof and dustproof, but easy to debugging and repair.
5. Brightness is more than 5500NIT, suitable for outdoor environment.
6. With good quality which shows clear videos and pictures even thought on sunny days. Can be used for outdoor advertising, stadium, and all kinds of square.

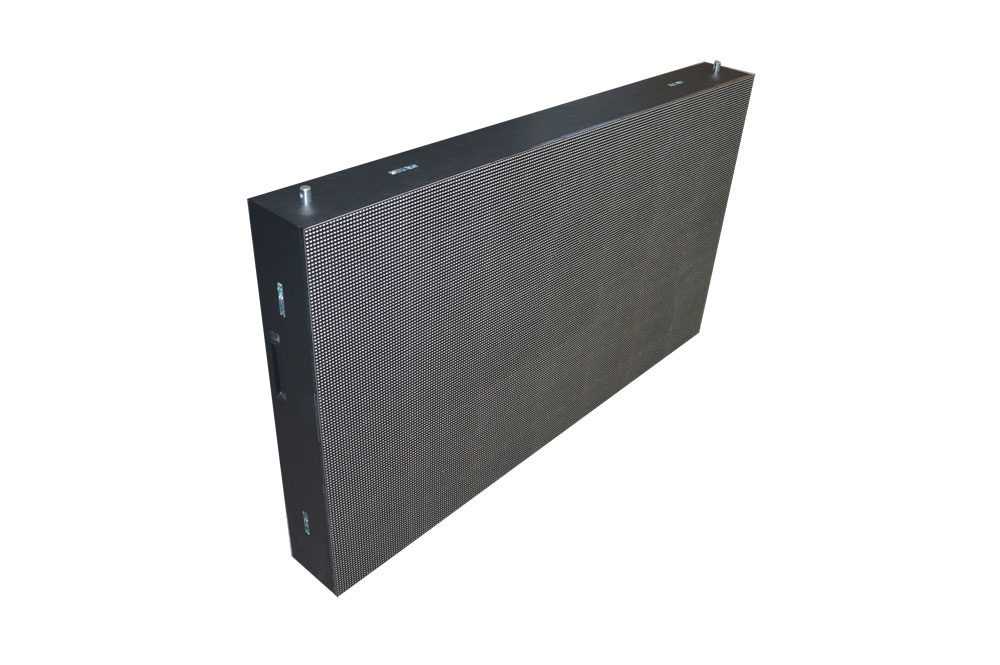

Photos
LED System Diagram
|
NO. |
Item |
Parameter |
|
1 |
Model |
P6 |
|
2 |
Pixel pitch |
6mm |
|
3 |
Pixel configuration |
1R1G1B |
|
4 |
LED type |
SMD3528 black |
|
5 |
Module size |
192*192mm |
|
6 |
Module resolution |
32*32 |
|
7 |
Density |
27777dots/m2 |
|
8 |
Brightness |
≥5500 NIT |
|
9 |
Scan method |
1/4 scan |
|
10 |
Best view distance |
≥6m |
|
11 |
Max. power consumption |
1000W/m2 |
|
12 |
Ave. power consumption |
500W/m2 |
|
13 |
Cabinet Weight |
55kg/m2 |
|
14 |
Grey scale |
65536 level |
|
15 |
Colors |
281 billion |
|
16 |
Refresh rate |
≥960Hz |
|
17 |
View angle |
Horizontal: 120°, vertical: 120° |
|
18 |
Color temperature |
6500K |
|
19 |
Frame frequency |
≥60Hz |
|
20 |
Out of control pixel rate |
<1/10000 |
|
21 |
MTBF |
>5000 hours |
|
22 |
Lifespan |
50000 hours |
|
23 |
Control mode |
Synchronous display with control PC by DVI |
|
24 |
Working voltage |
AC 100/200v 50-60Hz |
|
25 |
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
|
26 |
Operation temperature |
-20 to +40 |
|
27 |
Operation Humdity |
10% to 80% |
|
28 |
Protection level |
IP65 |
