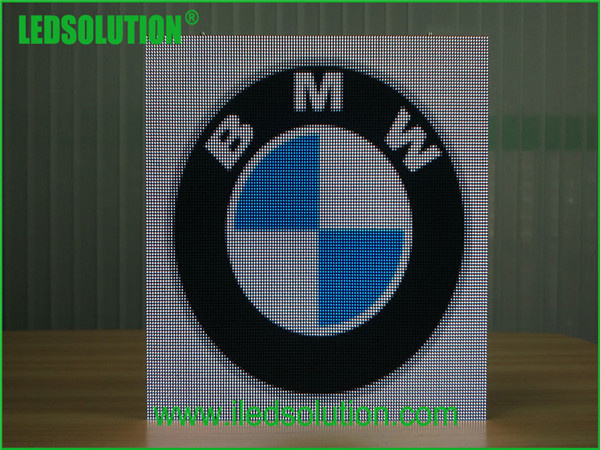

Indoor Full Color P3.91 Die-Casting LED Display
| Price: |
US $ 1500-2500/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
| Prod Model: |
LS-DI-P3.91-0.5mx0.5m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
500X500mm |
| Brightness: |
1,500nits |
| Viewing Angle: |
140/140 |
| Resolution Per Panel: |
128X128 |
| Mounting System: |
Hanging / Fixed |
| Display Color: |
281 Trillion |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
3.91 |
| Pixel Configuration: |
3in1 SMD |
| Pixel Density: |
16,384DOT/M² |
| System Operating Platform: |
Windows7, Vista, XP, 2000, 98 |
Product Description
P3.91 indoor die-cast aluminum LED display is a new product. It's extremly thin and light, perfect for rental or fixed installation.
Main Benifits:
1) Light: only 6kg/panel.
2) Thickness: 78mm
3) Easy assembly & disassembly by hands without tools.
4) Super smart flatness
5) Seamless tiled display
6) Long durability and High Reliability
7) Energy Efficient
8) Superb Picture Quality .
| Parameter | Unit | Value |
| Pitch | mm | 3.91 |
| Brightness | nits | 1,500 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 6 |
| Panel width | mm | 500 |
| Panel height | mm | 500 |
| Panel depth | mm | 78 |
| Panel area | sq. m. | 0.25 |
| Panel material |
| Epoxy paint coated Aluminum |
| Panel Mode |
| Die-Cast rental |
| Operating temperature range | deg. C | -20 to +60 |
| Humidity operating | RH | 10% ~ 60% |
| Pixel type and configuration | R/G/B | 3-in-1 SMD |
| Resolution per panel |
| 128x128 |
| Dot per panel |
| 16,384 |
| Dot per sq. meter |
| 65,536 |
| LED per sq. meter |
| 65,536 |
| Recommended minimum viewing distance | m | 2.98 |
| Recommended best viewing distance | m | 3~100 |
| Colors |
| 281 Trillion |
| Grey scale (linear) | Levels | 65,536 |
| Brightness control | Levels | 256 |
| Contrast ratio |
| 2,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel. | 300 |
| Input power (typical) | Watts / panel. | 120 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Hanging/Fixed |
