| Prod Model: |
CHD200F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RFID Proximity Card: |
Fingerprint Reader |
| Installation: |
External |
Product Description

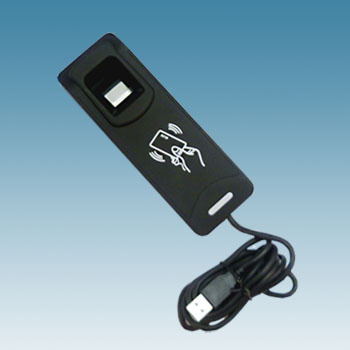

New ID ID fingerprint reader, Safety Card Reader (CHD200F)
Parameter
Size: 155mm (L) x 52mm (W) x 39mm (H) ± 5%
Net weight: 0.2Kg± 5%
Working voltage: 12VDC± 5%
Working current: 300mA± 5%
Support card: RFID proximity card (EM or Mifare)
RF frequency: 125kHz± 5% (EM card), 13.56MHz± 5% (Mifare card)
RF influence distance: 50-100mm
Working environment: -10~+50º C\20%~90%
Storage environment: -20~+70º C\5%~90%
ESD parameter: Air discharge ± 8KV
Working status: Normal state with blue LED light; When scan fingerprint with red LED light, in case invalid fingerprint scan will have two voices from buzzer and red & blue LED flash two times; When scan valid fingerprint, buzzer voice a time, red & blue LED light flash one time. When reading card, buzzer voice one time, red & blue LED light flash one time.
Standard implement: According to newabel own standard, NO.: Q/NBL007-2006
Shenzhen Newabel Electronic Co., Ltd Was established in 2000.
It is a high-tech enterprise integrated research, manufacturing and sales of intelligent card management systems. Our main products include access control, smart lock, intelligent card reader, time attendance, patrolling and parking management system, etc.
As the leader of the smart card system developer & manufacturer in China, we provide a set of comprehensive and scientific solutions effectively, supportive and cooperative to work with our partners for produce customization and localization. Our R&D team never stops developing new products software to meet all kinds of market demand. In 2009 only, we have successfully launched 10 modes of new modes, and help our overseas partners completed 18 big projects and solve many relevant technical problems.
We have held ISO9001: 2000 quality management systems certification, approved by QS, CE, UL, FCC, RoHS.
Our products have had extensive application to the fields of telecommunication, electric power, military materials, intelligential zones, .
Our long-term partners: EMERSON, HITACHI, HUAWEI, ZTE, .
We are the only ODM supplier to them for intelligent cards and access control panels. We reply on our combined R&D and production time of just 34 days: 20 days to customize and item and 14 more to complete an entire order.
We welcome OEM/ODM orders for as few as 100 units and as many as 50, 000 units.
