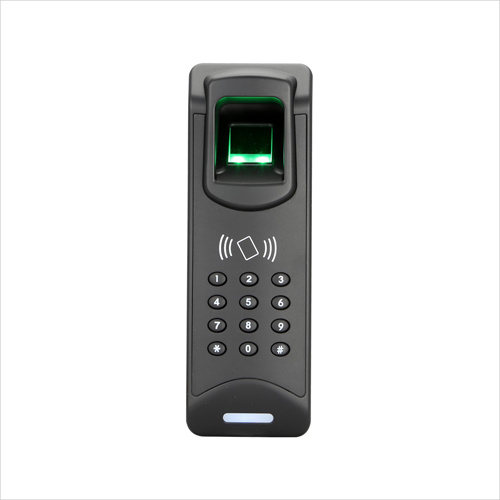

Fingerprint IC Card Reader

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Communication Interface:	Weigand 26

Product Description

Performance: CHD200G series Fingerprint Reader is the second generation Fingerprint Reader of our company, integrates with strong 32bit RISC CPU and the advanced identify algorithm, This Reader has Voice Remind functions. It provides the fast 1:1 or 1:N comparison, well-adapted standalone fingerprint identify products. With strong anti-interferences, and anti-stress, tamper functions, make the product more useful and safety. It extends the password keypad, ID/IC card reader and voice remind functions, and the product have identification+authorization confirmation functions, supports Wiegand 26 output and RS 485. Usually used in Smart Buildings, Bank Vaults, Control Centers, and Jails etc. with strict security requirement areas. Parameters: Size 156mm(L)X 53mm(W)X 38mm(T)±5% Color Silver+ Dark brown Net weight 0.2Kg±5% Rated working voltage 12VDC Input voltage range 10.8VDC-13.2VDC Working currency standby currency <200mA, dynamic card swiping working currency<300mA Min power supply 500mA/12VDC input Card-supporting Support different kinds of EM card RF working frequency 125KHZ ±5% Card read distance 3-5CM(depend on the card kind) Working status Blue LED light on when standby,red light on when collect fingerprint;buzzer calls twice, RED LED lightand blue LED light shines twice when illegal fingerprint collection,RED LED light blue LED light shines twice;when legal fingerprint collection,buzzer calls once,red light and blue light calls once;when swipe card,buzzer calls once,red LED and blue LED shines once Communication way RS485,used for set up, read and download the fingerprint information Communication Rate 9600/19200/38400/115200 BPS can be set up,Default:38400BPS Communication Address 1-254 can be set up by software,default"1", Output interface Standard weigand format,Light lotus root isolation output Output format 28BIT/26BIT/44BIT optional,keypad 4/8BIT settable by software Transmitting distance Weigand less than 60m,RS485 less than 200m Sensitive Rate FRR: 1.4% ,FAR: 0.00001% Authorised user MAX:3000pcs Fingerprint capacity 6000pcs Fingerprint working mode 1: N identification: support fingerprint, card, keypad 1:1 identification: support keypad ID + fingerprint, card + fingerprint Fingerprint identify time I ID + fingerprint / card + fingerprint, less than 1s Fingerprint only work mode:save 5000 fingerprints, identify time less than 3s; Fingerprint scan valid are 16mmX14mm±5% System Configuration: Item Model No. Name Remark 1 CHD200G Fingerprint Reader Fingerprint identify, Wiegand output, RS485 2 CHD200GK Keypad Fingerprint Reader Fingerprint identify+password, Wiegand output, RS485 3 CHD200GID ID Card Fingerprint Reader Fingerprint identify+ID card, Wiegand output, RS485 4 CHD200GIC IC Card Fingerprint Reader Fingerprint identify+IC card, Wiegand output, RS485 5 CHD200GIDK ID Card Fingerprint Reader with Keypad Fingerprint identify+ID card+password, Wiegand output, RS485 6 CHD200GICK IC Card Fingerprint Reader with Keypad Fingerprint identify+ID card+password, Wiegand output, RS485 Fully consider easy for repair and maintains Location should avoid choose high temperature site Device can't under straight sunlight Device can't be shower bath Before installation please testing device
