| Prod Model: |
J65HL-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
| Size: |
6cm³ |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Oil-free |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description

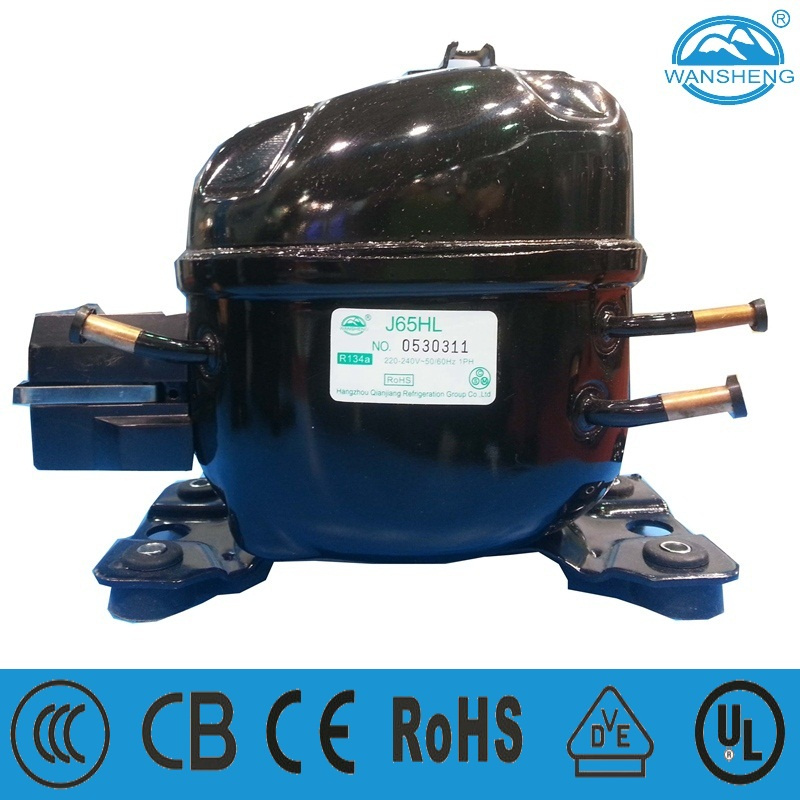

1. J series J65HL compressor use R134a refrigerant
2. Cheap price provided for the compressor J65HL makes the customers better choice
3. Experienced staff ensure produce of the compressors with good quality
4. Starting device is PTC
5. Frequency both for 50HZ & 60HZ
6. Voltage application from 220 to 240V
7. Application in drinking fountain and other refrigeration equipments.
8. High efficiency
9. Small size
10. Low vibration
11. Good reliability
12. Nominal power is 1/5 HP
13. COP is 1.2/1.3 with the cooling capacity 168/185
14. RSIR Motor
15. Cooling type Static
16. Low Back Pressure
17. Aluminum compressor
18. Compressor should be stored in a dry and drafty place
19. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
20. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
21. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
22. Ice maker compressor J65HL
|
Wansheng R134a compressors technology parameters |
Test Conditions |
Evap. Temp.: -23.3°C |
|
Cond. Temp.: 54.4°C |
|
|
Amb. Temp.: 32.2°C |
|
Suction. Temp.: 32.2°C |
|
|
Subcooling Temp.: 32.2°C |
|
LBP ASHRAE |
|
|
Model |
Displacement (cm³) |
Cooling Capacity (W) |
Rated Power (W) |
Nominal power (HP) |
COP (W/W) |
Motor Type |
Capacitor (μF) |
Starting Relay |
Cooling Type |
|
J series 220-240V/50-60Hz |
|
J65HL |
6.0 |
168/185 |
140/142 |
1/5 |
1.2/1.3 |
RSIR |
/ |
PTC |
S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
