| Prod Model: |
HO-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rating Capacity: |
12kw / 40000BTU |
| Capacity: |
9000-12000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
CE |
| China Energy Efficiency Standard: |
Level 2 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Solar |
| Power Type: |
DC |
| Condition: |
New |
| Type: |
Split Type |
Product Description

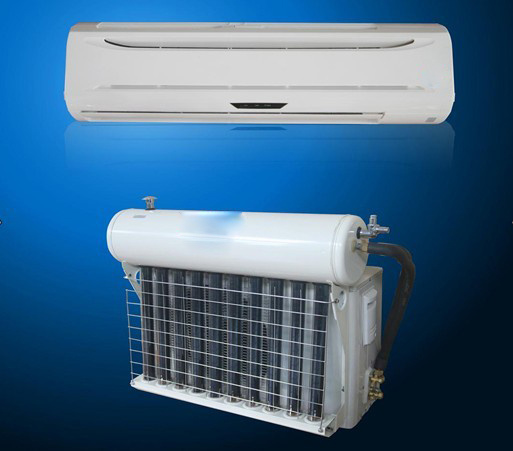

Professional OEM Manufacturer For Air Conditioner,
CE CB SASO SONCAP RoHS Certifications
ISO9001 Passed
NINGBO AKL ELECTRIC Co., Ltd is a professional manufacture of Air Conditioner equipment.
Air Conditioner Feature&Function
1. Capacity: 9000---24000BTU
2. COP/EER: 3.64/3.89
2. R22, R410A
High efficiently, energy-saving, comfortable and money saving
Durable and long-lived, smooth running.
Low-loaded operation of the compressor to extend its duration.
Healthy and comfortable.
It is not frequency conversion air conditioner but superior to it
Super luxurious appearance decorates your home.
Automatic open and close dustproof air outlet.
Easy installation
Can run at super high and low temperature from -5 to 53 C
| Model No. | TKF(R)-26GW | TKF(R)-32GW | TKF(R)-35GW | TKF(R)-60GW | TKF(R)-72GW |
| Power Supply: 220-240VAC, 1PH, 50Hz |
| Performance |
| Capacity | Cooling | Btu/h | 9000 | 11500 | 12000 | 20000 | 24000 |
| W | 2600 | 3200 | 3500 | 6000 | 7200 |
| Heating | Btu/h | 10000 | 12000 | 13000 | 22000 | 27000 |
| W | 2900 | 3500 | 3800 | 6600 | 7900 |
| Noise | Indoor | dB(A) | ≤ 40 | ≤ 42 | ≤ 42 | ≤ 46 | ≤ 50 |
| Outdoor | dB(A) | ≤ 50 | ≤ 50 | ≤ 52 | ≤ 56 | ≤ 58 |
| Air Circulation | m³ /h | 450 | 520 | 550 | 850 | 1050 |
| Suitable Area | m² | 11~17 | 13~21 | 15~23 | 25~42 | 30~48 |
| EER | W/W | 3.64 | 3.72 | 3.89 | 3.88 | 3.82 |
| Btu/h/w | 12.42 | 12.69 | 13.27 | 13.24 | 13.03 |
| Power Consumption |
| Power Input | Cooling | W | 650~770 | 780~940 | 800~1025 | 1350~1560 | 1700~1900 |
| Heating | W | 650~780+350 | 780~950+350 | 800~1050+350 | 1350~1590+350 | 1700~1950+350 |
| Rated Current | Cooling | A | 2.95~3.50 | 3.55~4.27 | 3.64~4.66 | 6.14~7.09 | 7.73~8.64 |
| Heating | A | 2.95~3.55+1.6 | 3.55~4.31+1.6 | 3.64~4.77+1.6 | 6.14~7.23+1.6 | 7.73~8.66+1.6 |
| Vacuum Tube | Diameter*Length*Pcs | 47mm*500mm*9 | 47mm*500mm*10 | 47mm*500mm*10 | 47mm*620mm*11 | 47mm*620mm*11 |
| Dimensions |
| Indoor Unit | Net | mm | 785*285*210 | 785*285*210 | 785*285*210 | 985*320*215 | 985*325*230 |
| Shipping | mm | 910*370*300 | 910*370*300 | 910*370*300 | 1080*380*300 | 1160*400*330 |
| Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 790*260*540 | 850*300*755 | 940*300*755 |
| Shipping | mm | 910*370*610 | 910*370*610 | 910*370*610 | 950*410*760 | 990*400*770 |
| Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 |
| Vacuum Tube | Shipping | mm |
| Weight |
|
|
|
|
|
|
|
| Indoor Unit | Net/Gross | kg | 10/11 | 10.5/13 | 10.5/13 | 17/18.5 | 21/23 |
| Outdoor Unit | Net/Gross | kg | 31/34 | 33/36 | 38/40 | 50/52 | 55/58 |
| Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 13/15 | 16/17 | 16/17 |
| Loading Qty | in 20feet | sets | 66 | 66 | 66 | 49 | 46 |
| 40HQ | sets | 162 | 162 | 162 | 120 | 112 |
NINGBO AKL-Histar Electric Co., Ltd was founded in 2004. Main products consist of various electric appliance, and more than 70 kinds in all. with complete specifications, novel models, products are extensively applied to home and commercial department. Our products export to the whole world. Europe, South & North America, Southeast Asia, Africa and Middle East. Our factory obtains reliance and praise from customers and societies with excellent quality and competitive price.
Our company has passed CE, RoHS. COC, SAA. SONCAP. UL. SASO Certificate. For purpose to control products' quality well, we develop a whole set of standard testing equipment by ourselves.
We always insist on the management aim of "quality first, customers supreme", strive for top grade products and offer first rate service. We sincerely welcome the old and new customers to visit our factory, negotiate business, cooperate extensively and achieve common prosperity.
