| Prod Model: |
TFT052A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ODM: |
OEM Product Design/ Production |
| Certification: |
RoHS and ISO 9001:2008 Certification |
| LCD Type: |
TFT Transmissive |
| Number Of Dots: |
320*(RGB)*240 |
| Active Area: |
70.08 *52.56 |
| Module Size(W*H*T): |
76.9X63.9X4.42 |
| Screen Size: |
≤17" |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
320X240 |
| Interface Type: |
RGB |
Product Description
LCD Type TFT Transmissive
Driver element a-Si TFT Active matrix
Number of Dots 320*(RGB)*240
Pixel Arrangement RGB Vertical Stripe
Active Area 70.08 *52.56 mm
Viewing Direction 6 O'clock
Driver IC HX8238D
Module Size(W*H*T) 76.9x63.9x4.42 mm
Back Light White LED
System interface 24-bit RGB interface

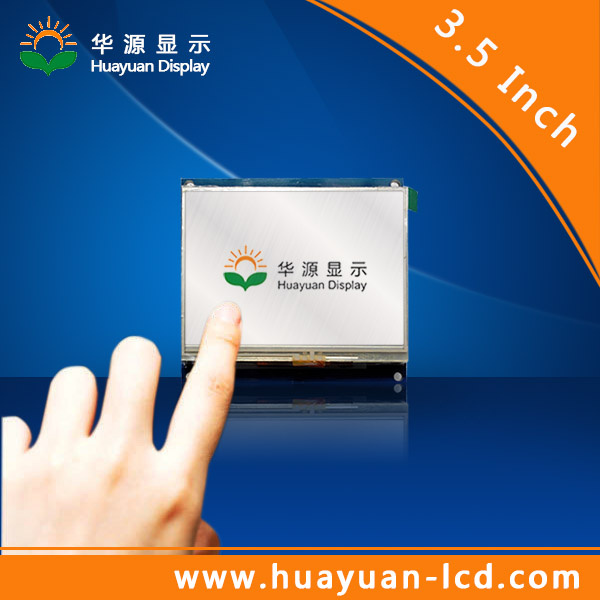

| Model NO. | TFT052A |
| lcd size | 3.5 inch |
| Size:Length*Width*Highth: | 76.9*63.9*4.25 |
| Interface | RGB |
| Resolution | 320*240 |
| (luminance)cd/m² | 350 cd/m² |
| with or without touch panel (TP) | 4&5Wire Resistive Touch(Optional) |
| LED light | 6LED |
| FPC PINs | 54 |
| Diver IC | HX8238D |
| Operating Voltage | VDD=3.3V |
| Work Temp | -20 To +70c |
| Storage Temp | -30 To +80c |
| Viewing Angle | 6 O' Clock |
| Related products | 2.8" 3.2" 3.5" 4.3" 5" 5.6" 7" 8" 9" 10.1" 17" |
| LCD Module application | Game Machine.Car Audio DVD.GPS.cash register.Industial Automation.Office Automation.MedicalEquipment.LCD Monitor.DVDPlayer.POS machine. etc. |
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
