| Prod Model: |
P7.62 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size/Panel Size: |
732mm*732mm*60mm |
| Refresh Rate: |
Over 2000Hz /S |
| Weight: |
12 Kg Per Cabinet |
| LED Control System: |
Linsn, Dbstar, Nova_Star, Colorlight, Zdec |
| Average Power Consumption: |
200W Per Square Meter |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
7.62mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
17,222 dots / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CCC |
| System Operating Platform: |
Windows XP, Windows 7 |
| IP Rating: |
IP31 |
Product Description

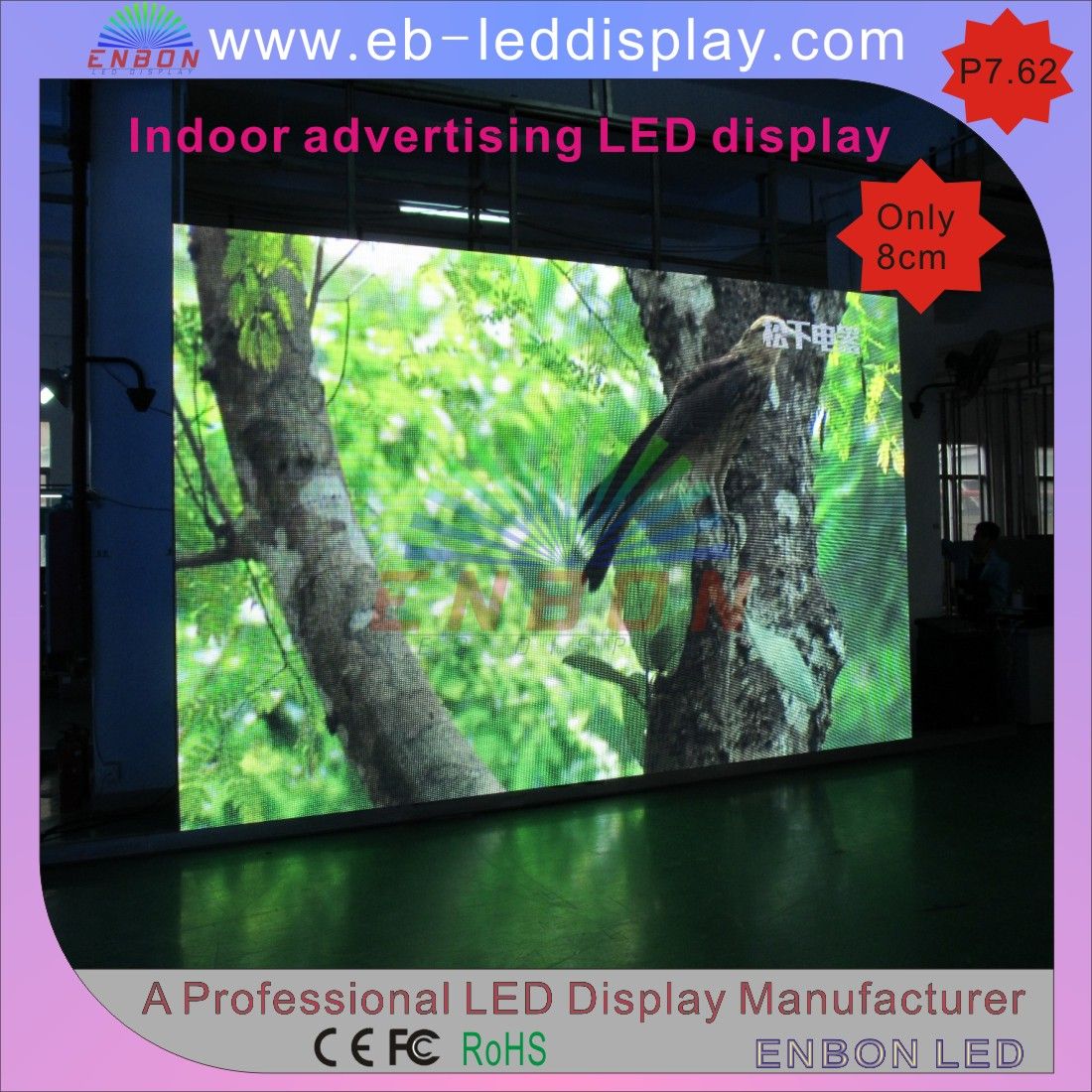

Ultra-thin, super-light Indoor full color LED display screen is very portable and is designed for rental use, such as stage, touring, conference, show etc. It can bring vivid video, images, texts as well as fantastic flashing lighting effect. Other features of this product are:
1) It never occupies too much room and never puts unnecessary weight to the mounting structures.
2) It lowers your transportation costs and save much labor costs to install and dismantle the LED screen.
3) Aluminum backcover is good for heat dissipation, no need a separate fan inside, it is very quiet for some events that requests very quiet environment.
4) The most importantly, the cabinet can be removed from the center of the LED display, easy to change the cabinet when it has problem while there is no time to change the module. It can also help you have different stage design.
5) With special rigging system, It is very convenient to hang the screen to truss. It is very safe.
6) Large viewing angle, 160 degree Horinzontally and 140 degree vertically by using our specially designed mask.
6) High contrast rate by using black body LED.
7) HIgh refresh rate, guarantee no scaning lines when taken photo or video.
8) Many pitches are available, from high cost to low cost. You can choose according to your budget and the project requirements.
We also call it: Slim LED display, Stage LED screen, LED video wall, Rental LED screen, SMD LED board etc.
| Model | P7.62 LED display for rental indoor |
| Pixel pitch | 7.62mm |
| Pixel density | 17,222 dots /sqm |
| Module size ( W * H ) | 244 mm(width)*244 mm(height) |
| Module pixels ( W * H ) | 32 dots *32 dots |
| Pixel configuration | 1 Red 1 Green 1 Blue |
| Drive mode | constant current driving 1/8 scan |
| LED lamp type | SMD3528 |
| Cabinet size ( W * H ) | 732mm*732mm |
| Net weight | 12Kg / cabinet |
| Color scale | 65,536 degree |
| View angle ( H / V ) | 140 / 120 degree |
| Brightness ( White balance ) | about 1,300 cd / SQM. |
| Power consumption ( one cabinet ) | Max : 300W / cabinet , Average : 100W / cabinet |
| Inputting Voltage | 90-264 VAC ; 47---63HZ |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m ( without repeater ) , single mode fiber : 20km ,
multi mode fiber : 500m |
| LED control system | LINSN , Dbstar , Nova-star , ZDEC ,Colorlight are selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 / 8.1 / windows 10 |
| Protection grade | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | HDMI , PAL , NTSC , HDMI , BNC , TV , SDI , VGA ,Media player etc . |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
