| Prod Model: |
SN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Useful: |
Water Heater |
| Material: |
Stainless Steel |
| Warranty: |
Whole Set 5 Years |
| Producing Time: |
1x20gp or 1x40gp Container Within 7-10days |
| Anti-Hail: |
25mm |
| Working Pressure: |
0mpa |
| Delivery: |
by Ship |
| Connection Type: |
Direct-Plug |
| Min.Order Quantity: |
1 Set |
| Insulation Layer: |
Polyurethane |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE |
Product Description

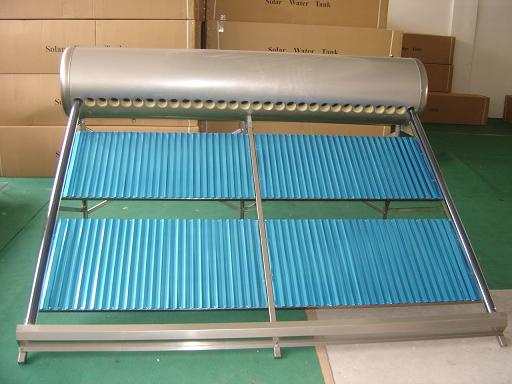

Highest Quality Solar Water Heater
Inner Tank: SUS304-2B Stainless steel
Vacuum tube: QB-AL-N/AL-47-1500/1800
Outer tank shell: Imported galvanized steel sheet/ Color steel
Insulation layer: Foaming Polyurethane- 55mm thickness
Support: Aluminum alloy/ galvanized steel plate with plastic spraying
Reflector: Diffuse reflection sheet
|
|
Stainless Steel System: 1. Material of Inner tank: SUS304-2B stainless steel with 0.4mm thickness 2. Material of Outer tank: SUS304-2B stainless steel with 0.31mm thickness 3. Magnetic-controlled Al-N-Al splash all glass evacuated heat-collecting tubes, fast heat absorbing and temperature risen 4. Heat Preservation Layer: 55mm polyurethane integral foaming, superior heat preservation 5. Material of support: Stainless Steel Profiled Bar with 1.2mm thickness
|
Model |
Absorbing Area (m2) |
Glass Vacuum Tube |
Tank Capability (L) |
Loading Qty(sets) 20" /40" |
|
Ø (mm) |
L(mm) |
NO. (PCS) |
|
420-1500/47-15-C |
0.75 |
47 |
1500 |
15 |
85 |
66/137 |
|
420-1500/47-18-C |
0.90 |
47 |
1500 |
18 |
100 |
56/115 |
|
420-1500/47-20-C |
1.00 |
47 |
1500 |
20 |
111 |
50/105 |
|
420-1500/47-24-C |
1.20 |
47 |
1500 |
24 |
135 |
44/92 |
|
420-1500/47-30-C |
1.50 |
47 |
1500 |
30 |
166 |
36/75 |
|
470-1500/47-15-C |
0.75 |
47 |
1500 |
15 |
113 |
51/102 |
|
470-1500/47-18-C |
0.90 |
47 |
1500 |
18 |
140 |
44/88 |
|
470-1500/47-20-C |
1.00 |
47 |
1500 |
20 |
150 |
42/84 |
|
470-1500/47-24-C |
1.20 |
47 |
1500 |
24 |
180 |
33/66 |
|
470-1500/47-30-C |
1.50 |
47 |
1500 |
30 |
230 |
30/60 |
|
470-1800/58-16-C |
1.28 |
58 |
1800 |
16 |
133 |
44/91 |
|
470-1800/58-18-C |
1.44 |
58 |
1800 |
18 |
150 |
39/81 |
|
470-1800/58-20-C |
1.60 |
58 |
1800 |
20 |
165 |
35/73 |
|
470-1800/58-24-C |
1.92 |
58 |
1800 |
24 |
200 |
30/62 |
|
470-1800/58-30-C |
2.40 |
58 |
1800 |
30 |
250 |
24/50 |
|
Changzhou Sunnergy Energy Technology Co., Ltd. is specially engaged in the research, development, production and sale of solar water heaters, solar collectors, solar light and wind generator, etc. Related energy products.
We closely follow the trends of the international market, relying on our superior talent and scientific research of our own. Our products have been upgraded continuously and we always carry out the ISO9001: 2000 international quality system in production. Moreover, our enterprise owns advanced production and inspection equipment, employs a top level and quality production team, and operates a perfect after-sales service system. All products have scientific structure, rational and exquisite technology. Because of our superior products and perfect after-sales service, our products are exported to overseas countries and regions such as Mexico, USA, Canada, Turkey, Australia, Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc. Over 50 countries, and have found favor in the eyes of customers.
Our enterprise will take quality as its base and customer satisfaction as its aim, continuously developing new products and styles, and making full use of internationally advanced solar production technology to increase the color of your life.
