| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Whole Set 5 Years |
| Producing Time: |
1x20gp or 1x40gp Container Within 7-10days |
| Anti-Hail: |
25mm |
| Insulation Layer: |
Polyurethane |
| Working Pressure: |
0mpa |
| Delivery: |
by Ship |
| Usage: |
Bathroom or Small Project |
| Installation: |
Freestanding |
| Connection Type: |
Direct-Plug |
| Min.Order Quantity: |
1 Set |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE |
Product Description

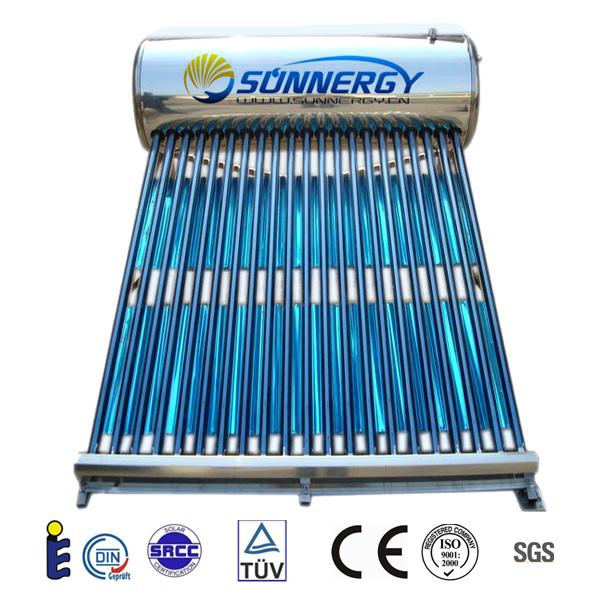

Solar Water Heater Calentadores solares Solar geyser
Product name: Stainless Steel Type
Product class: Unpressurized Type
1. High effeciency
2. Prompt delivery, delivery: 10 days
3. CE ISO9001-2000 SRCC CE SGS solar keymark
4.5 years quality warranty
5. Competitive price
6. OEM available
7. Easy installation, convenient operation
8. Design for you
9. Assured quality, fast delivery
10. Economical and environment-friendly
11. It is applied in various places
Stainless solar water heater, solar water heater, solar energy, renewable stainles vacuum tube solar water heaters
Stainless Steel System:
1. Material of Inner tank: SUS304-2B stainless steel with 0.4mm thickness
2. Material of Outer tank: SUS304-2B stainless steel with 0.31mm thickness
3. Magnetic-controlled Al-N-Al splash all glass evacuated heat-collecting tubes, fast heat absorbing and temperature risen
4. Heat Preservation Layer: 55mm polyurethane integral foaming, superior heat preservation
5. Material of support: Stainless Steel Profiled Bar with 1.2mm thickness
Model Absorbing Area
(m2) Glass Vacuum Tube Tank Capability
(L) Loading Qty(sets)20"/40"
OD(mm) L(mm) NO. (PCS)
420-1500/47-15-C 0.75 47 1500 15 85 66/137
420-1500/47-18-C 0.90 47 1500 18 100 56/115
420-1500/47-20-C 1.00 47 1500 20 111 50/105
420-1500/47-24-C 1.20 47 1500 24 135 44/92
420-1500/47-30-C 1.50 47 1500 30 166 36/75
470-1500/47-15-C 0.75 47 1500 15 113 51/102
470-1500/47-18-C 0.90 47 1500 18 140 44/88
470-1500/47-20-C 1.00 47 1500 20 150 42/84
470-1500/47-24-C 1.20 47 1500 24 180 33/66
470-1500/47-30-C 1.50 47 1500 30 230 30/60
470-1800/58-16-C 1.28 58 1800 16 133 44/91
470-1800/58-18-C 1.44 58 1800 18 150 39/81
470-1800/58-20-C 1.60 58 1800 20 165 35/73
470-1800/58-24-C 1.92 58 1800 24 200 30/62
470-1800/58-30-C 2.40 58 1800 30 250 24/50
Changzhou Sunnergy Energy Technology Co., Ltd. is specially engaged in the research, development, production and sale of solar water heaters, solar collectors, solar light and wind generator, etc. Related energy products.
We closely follow the trends of the international market, relying on our superior talent and scientific research of our own. Our products have been upgraded continuously and we always carry out the ISO9001: 2000 international quality system in production. Moreover, our enterprise owns advanced production and inspection equipment, employs a top level and quality production team, and operates a perfect after-sales service system. All products have scientific structure, rational and exquisite technology. Because of our superior products and perfect after-sales service, our products are exported to overseas countries and regions such as Mexico, USA, Canada, Turkey, Australia, Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc. Over 50 countries, and have found favor in the eyes of customers.
Our enterprise will take quality as its base and customer satisfaction as its aim, continuously developing new products and styles, and making full use of internationally advanced solar production technology to increase the color of your life.
