| Prod Model: |
JC-P10-FCO-RGB-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Display: |
High Stability P10 Full Color LED Display |
| Tube Chip: |
1 Red 1 Green 1 Blue |
| Brightness: |
>5500 CD Per Square Meter |
| Resolution: |
32* 16dots 10000 Dots/Sqm |
| Certifications: |
CE, RoHS, FC, 3c, ISO9001 |
| Function: |
Video, Animation, Graphics |
| Original: |
Southern Fujian China |
| Lifetime: |
Excellent with 10,000 Mtbf |
| Market: |
Asia, America, Europe etc |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
FCC, ISO9001:2008 |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350 |
Product Description
Advantages:
1. Select size 346 lamp beads with high quality LED chip. Strong anti-static, low brightness damping, high wavelength stability
2. Adapt advanced packaging equipment, guaranteeing quality and life-span
3. Standard processing technology to ensure tubes in each row and each column are at the same level, ensuring stability and clarity of the picture.
4. Higher density, higher resolution and more clear & stable picture displaying
5. Product has strong ability to anti-surge, anti-static and anti lightning stroke.
4) 1-year quality guarantee.
Features
1). Good price
Our price is 10% lower than the market because of the introduction of full
Automatic production line with the characteristics of reducing the cost of
Labor and management.
2). Lightweight
Aluminum cabinet greatly saving fright cost and conveniently installing.
3). Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction
Dot rate less than 0.0001. MTBF more than 1000 hours.
4). Best quality LED chip tube
The GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5). Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6). Quality insured by CPIC and 1-year QA.
Payment and shipment
1) 30% deposit before production and balance paid before shipment.
2) Carton package, wooden case, flight case and customized package.
3) Shipment by express, by sea or by air within 10 working days.
|

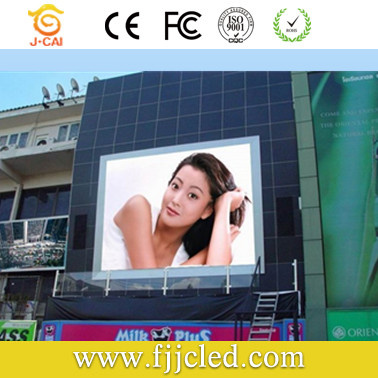

High Stability P10 Full Color LED Display |
|
Brand Name |
Jingcai |
|
Pixel Pitch |
10mm |
|
Module Resolution |
32*16 |
|
Module Dimension |
320mm*160mm |
|
Led Encapsulation |
DIP346 |
|
Driving IC |
JXI5020 |
|
Driving Mode |
4S Constant Current |
|
Gray Scale |
256 Level |
|
Display Function |
Text, Graphics, Animation |
|
Module Brightness |
>5500 cd/sqm |
|
Refresh Frequency |
>300Hz |
|
Max. Power Consumption |
Below 650W |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
