| Prod Model: |
LS-OC-P8.928-0.5mx1m(3535, 3000nit) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Certification: |
ETL |
| Pixel Configuration: |
3in1 SMD |
| Pixel Pitch: |
8.928 |
| Pixel Density: |
12,545 DOT Per Sq. Meter |
Product Description
LED Curtain Display Screen, LED Curtains, curtain LED display, LED stage background, stage LED display, LED screen, LED signs:
Features of the Curtain LED Display:
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios

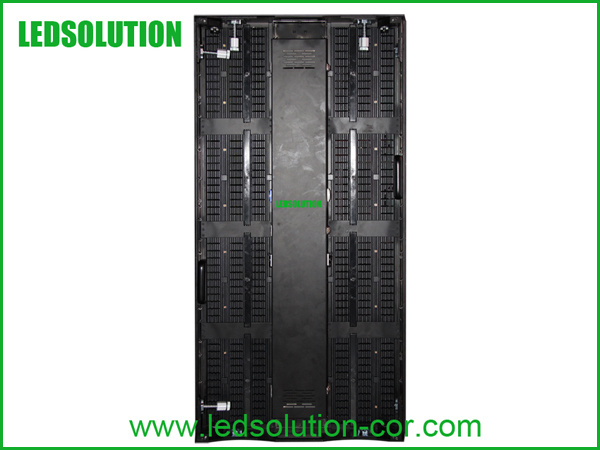

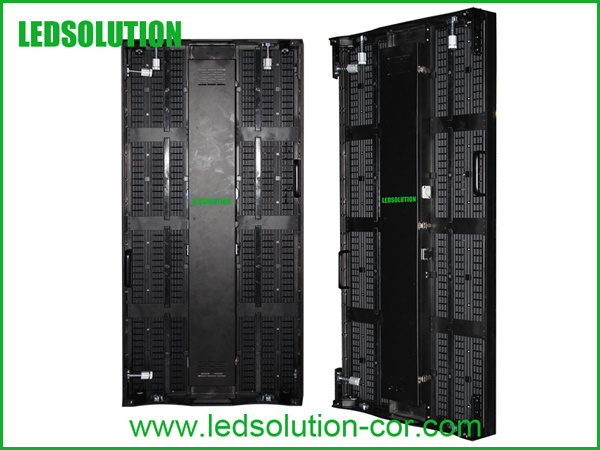

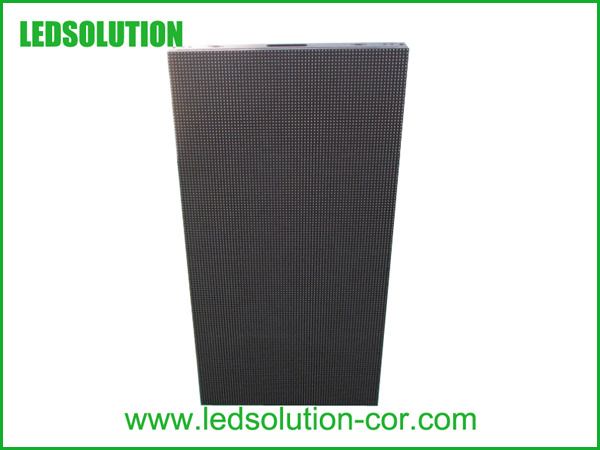

P8.928 LED Curtain Display
*Wide viewing angle
*high brightness
*good heat dissipation
*easy maintenance
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
Main Application: Stage and outdoor fixed installation
LEDSolution LED Display:
|
Parameter |
Unit |
Value |
|
Pitch |
mm |
8.928 |
|
Brightness |
nits |
3,000 |
|
Color temperature |
deg. K |
6,500 |
|
Viewing angle – Horizontal (50% brightness) |
deg. |
120(-60~ +60) |
|
Viewing angle – Vertical (50% brightness) |
deg. |
120(-60~ +60) |
|
Panel weight |
kg |
12 |
|
Panel width |
mm |
500 |
|
Panel height |
mm |
1,000 |
|
Panel depth |
mm |
80 |
|
Panel area |
sq. m. |
0.5 |
|
Panel material |
|
Epoxy paint coated Aluminum Strip |
|
Ingress protection (front/rear) |
IP65 |
IP65/43 |
|
Operating temperature range |
deg. C |
-30 to +60 |
|
Humidity operating |
RH |
10% ~ 90% |
|
Pixel type and configuration |
R/G/B |
3535 3in1 SMD |
|
Resolution per panel |
|
56x112 |
|
Dot per panel |
|
6,272 |
|
Dot per sq. meter |
|
12,545 |
|
LED per sq. meter |
|
12,545 |
|
Recommended minimum viewing distance |
m |
6.8 |
|
Drive Mode |
|
Constant current drive |
|
Colors |
|
281 Trillion |
|
Grey scale (linear) |
Levels |
65,536 levels per color |
|
Brightness control |
Levels |
100 |
|
Contrast ratio |
|
1,000:1 |
|
Processing depth |
bit |
12 |
|
Video frame rate |
Hertz |
60 |
|
Display refresh rate |
Hertz |
180~3,000 |
|
Input voltage (nominal) |
VAC |
110 to 240 |
|
Input power frequency |
Hertz |
50 to 60 |
|
Input power (max) |
Watts/ m2 |
200 |
|
Input power (typical) |
Watts/ m2 |
80 |
|
Lifetime (50% brightness) |
Hours |
≥100,000 |
|
Red wavelength (dominant) |
nm |
620~625 |
|
Green wavelength (dominant) |
nm |
525~530 |
|
Blue wavelength (dominant) |
nm |
470~475 |
|
Panel input format |
|
DVI,MPG,AVI,WMV,RM etc. |
|
Mounting System |
|
Hanging for rental |
