Prod Model: |
P20High Resolution Outdoor Advertising LED Display |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
320*320 |
Cabinet Size: |
1280*960 |
Cabinet Material: |
Iron or Aluminum |
Best Viewing Distance: |
10-150 M |
Packing Manner: |
Wooden Case/Flight Case |
The Way Of Fix Installation: |
Fix Installation |
Brightness: |
More Than 5500 CD/Sqm |
Warranty: |
Two Years |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Pitch: |
20mm |
Pixel Configuration: |
1R, 1G, 1B |
Display Function: |
Video Display |
Average Power Consumption: |
220W / m² |
Scanning Mode: |
Static Scan |
Display Type: |
LED Video Display |
Application: |
Advertising |
Certification: |
CCC |
Pixel Density: |
2500 DOT / Sqm |
Product Description
High Resolution Advertising LED Display Used Outdoor :

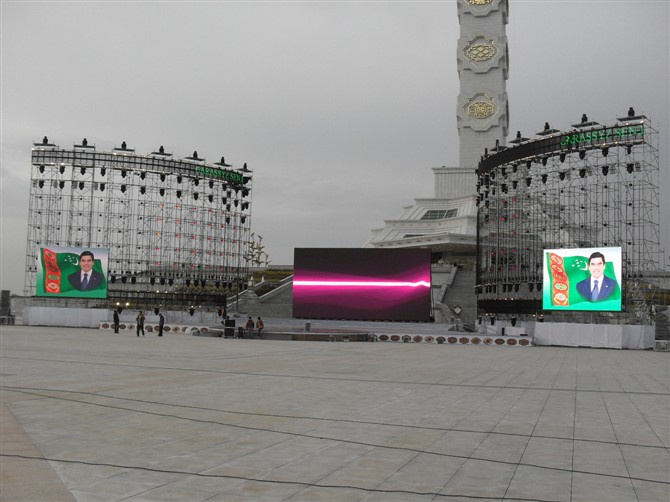

Full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
Application: Outdoor Rental LED Sign are widly used in culture square,hotel,airport,stadium,station,entertainment,party,wedding,wharf and so on.
Export markets: South America,North America,Africa,Eastern Asia,Mid East,Oceania,Wearern Europe,Southeast Aisa etc.
High Resolution Outdoor Advertising LED Display Series:
Item | Outdoor DIP LED display |
Pixel Pitch(mm) | 10mm | 12mm | 16mm | 20mm |
Pixel density(/m2) | 10000 | 6944 | 3906 | 2500 |
LED Type | DIP346 |
Viewing angle: | H:120°,V:60° |
Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
Drive Method | 1/4 | Static |
Color Depth(nits) | 16384 |
Refresh Rate(Hz) | 2200 | 2800 |
Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
Cabinet Size(mm) | 960×960x178.5 | 1024×1024x178.5 | 1280×960x178.5 |
Cabinet Material | Steel |
Cabinet weight(kg) | 50 | 55 | 68 |
Voltage | 110/220V |
Average.power(W / m2) | 250 | 170 | 250 | 220 |
Max.power(W / m2) | 750 | 500 | 750 | 650 |
IP Grade | IP65/IP54 |
Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
Lifetime(h) | ≥50000 |
Compliant Standard | CCC,CE,Rosh |
Description:LED Display /led display screen/LED sign/LED video wall
1). Model No.: P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm (DIP LED)
2). Display Color: 256*256*256
3). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
4). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
5). Package: Flight case, wooden case
6). Guarantee:2 year
Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightning accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
