| Prod Model: |
TC-777 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia |
| Product Name: |
High Quality Wireless Mobile Radio Microphone |
| Battery Pack: |
1500mAh (Li-ion) |
| Number Of Channels: |
199 |
| RF Power: |
Repeater 250MW Hand-Microphone 500MW |
| Frequency Stability: |
± 2.5ppm |
| Power Supply: |
DC 8.0V |
| Dimensions: |
133 * 88 * 27mm |
| Weight: |
Repeater:124G Hand-Microphone:10g |
| Frequency: |
Repeater:Tx: 221MHz Rx: 259MHz |
| Style: |
Handheld Microphone |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Sound Channel: |
Mono |
| Transducer Principle: |
Electromagnetic Microphone |
| Sound Field Force: |
Pressure Type |
| Wireless Technology: |
VHF |
| Output Impedance: |
50-1000Ω |
| Connector(',s): |
Mobile Radio Wireless Mic |
| Application: |
Mobile Radio |
Product Description

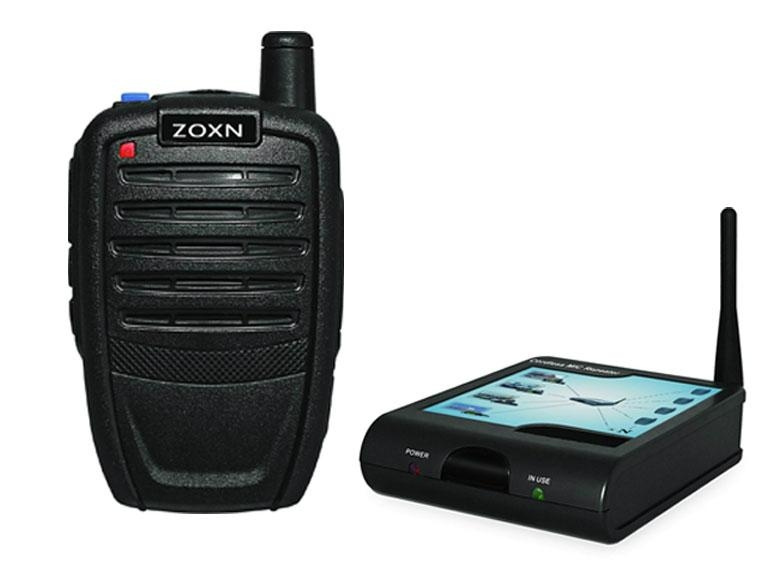

500M Wireless Mobile Radio Microphone
1:Freely move, easy communication
2:Compatible with different brands mobile radio, like Icom, Yaesu, Motorola, Kenwood and so on
3:Walkie talkie between hand-microphones
4:500 meters communication range between mobile radio and hand- microphone, between hand-microphones
5;Torch light function
Identification function
General specifications |
| Repeater | Hand-microphone |
| Frequency range | TX: 221MHz
RX: 259MHz | TX: 259MHz
RX: 221MHz |
| RF power | 80 |
| Number of channels | 199 |
| RF power | 250mW | 500mW |
| Battery pack | 1500mAh (Li-ion) |
| Frequency stability | ± 2.5PPM |
| Power supply | DC 8.0V |
| Operating temperatures | - 20°C -- + 60°C |
| Dimensions (W * H * D) | 133 * 88 * 27mm |
| Weight | 124g | 10 |
