| Prod Model: |
TC-SM118 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water-Resistant: |
IP54 |
| Speaker Size: |
45mm |
| Sound Pressure Level: |
94dB+/-3dB |
| Speaker Impedance: |
8ohm+/-15% |
| Audio Output: |
2W |
| Type: |
Electret Microphone |
| Microphone Sensitivity: |
-40dB+/-2dB |
| Impedance: |
2.2kohm |
| Microphone Size: |
2.7*6.0mm |
| Frequency Response: |
20-16000 Hz |
| Application: |
Voice |
| Signal Transmission: |
Wired |
| Directivity: |
Omni-direction |
| Output Impedance: |
2.2kohm |
| Style: |
Handheld Speaker&Microphone |
| Transducer Principle: |
Electret Microphone |
Product Description

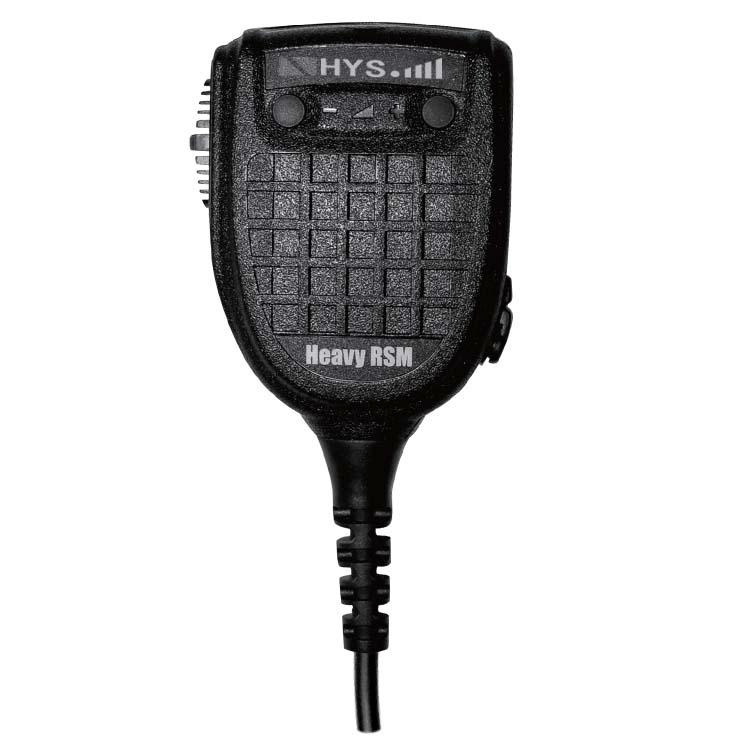

Speaker microphone for two way radio.
1.Water-resistant (IP 54)
2.The microphone may be secured to the users lapel or shoulder
3.With a stainless clip on the back and 3.5 jack.
4.With volume button on the face, it is easy for change RMS sound with the button.
5.Solid, strong, and durable cable with kalver.
6.Available for Icom, standard, Yaesu, Kenwood, Motorola, transceivers and others.
Speaker:
Speaker size: 45mm
Sound pressure level: 94dB ±3dB
Impedance: 8 Ω ± 15%
Audio output :2W.
Microphone:
Type: Electret microphone
Microphone size: 6.0*2.7mm
Frequency response: 20-16000 HZ
Sensitivity: -40dB± 2dB
Impedance: 2.2K Ω
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
