| Prod Model: |
SF20T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R404A |
| Power Supply: |
380V/50Hz/3p |
| Unit Weight: |
3500kg |
| Total Input: |
79kw |
| Thickness Of Flake Ice: |
1.5-2.2mm |
| Ice Shape: |
Flake Ice |
| Certification: |
CE |
| Condition: |
New |
Product Description
Product Description
Features for our Flake Ice Maker:
1. Reasonable design for the structure, save space, easy to install
2. Greatly save energy.
3. Ice dropping automatically, no ice dropping auxiliary equipment,
lower error rate.
4. water-cooled &air-cooled are supplied.
5. Install as the operation instruction, supply failure alarming syst
em, no need worker to monitor.
The machine is equiped with PLC central program control, which a
llows multuple functions such as automatic machine start and shutdown and stopping ice production when the ice bins are full.

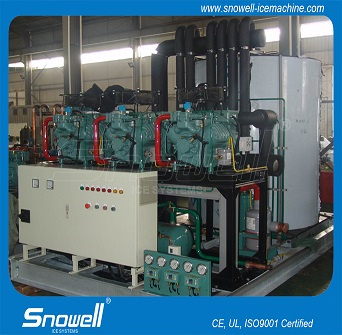

Parameters of Snowell Flake Ice Machine
| NO. | Description | Specs. |
| 1 | Design capacity | 1000kg-50000KG/24h |
| 2 | Refrigeration capacity | 6kW120KW |
| 3 | Refrigerant | R404A |
| 4 | Total input | 3.8kW-79KW |
| 10 | Power supply | 380V/50Hz/3P or else |
| 11 | Nominal current | 10A-138A |
| 12 | Cooling mode | Air cooling |
| 13 | Evaporator structure | Spiral groove |
| 14 | Evaporating temp. | -20°C |
| 15 | Condensing temp. | 45°C |
| 16 | Flake ice temp. | -5°C |
| 17 | Thickness of flake ice | 1.5-2.2mm |
| 18 | Water feeding pressure | 0.1Mpa-0.5Mpa |
| 20 | Design ambient temp. | 25°C |
| 21 | Design water inlet temp. | 18°C |
| 23 | Unit weight | 230 kg-3500KG |
| 24 | Unit dimension (mm) | 1300*970*900-3400*2080*2050 |
Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice cube machine, ice block machine, ice plate machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms.
Headquartered in Shenzhen, Snowell has 3 Industrial Parks. Marketing network has been extended to many domestic cities, such as Beijing, Shanghai, Guangzhou, Qingdao, Dalian and Wuhan, and abroad, such as Middle East, Southeast Asia, Europe, Australia, America, Africa and so on.
Snowell attracts numbers of excellent and professional talents and has scientific and research and talents cooperation with many Chinese famous colleges and universities. We have achieved several national patents and get the pressure vessel manufacture license. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.
After almost 10 years of development, Snowell has become the most competitive manufacturer of ice making system and other refrigeration equipments.
