| Prod Model: |
GWF-3S5T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
FCC, CE, RoHS |
| OS: |
Windows 2000/XP/Vista/CE, Linux |
| Main Chipset: |
Ralink Rt5370 |
| Color: |
White, Black |
| Peak Rate: |
150Mbps |
| Size: |
39X16X13.3mm |
| Antenna: |
Detachable 2dBi/3dBi/5dBi Antenna |
| Type: |
Wireless |
| Interface: |
USB |
| Transmission Rate: |
150Mbps |
| Application: |
Desktop, Laptop, STB, IP TV, IP Camera |

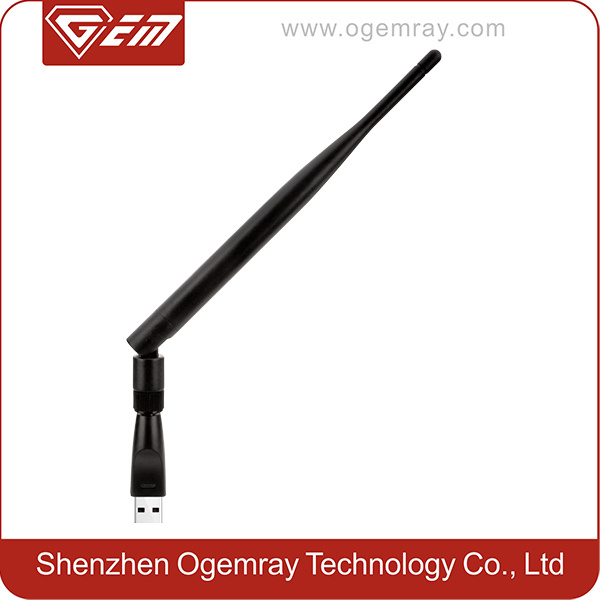

Product Description
This modle: GWF-3S5T WLAN adapter support IEEE802.1B/G/N standards with type A USB connector supporting USB 2.0 Interface.
External Wi-Fi USB dongle support Soft AP function, special for IP TV ,Set Top Box, IP camera, Multimedia Player, PC, Desktop etc.
High Quality MIMO WLAN Wi-Fi USB Dongle
Two years quality warranty
1. MINI size WiFi adapter
2. 802.11N 150Mbps wireless USB adaptor
3. Ralink RT5370 chipset
4. High peak rate WiFi adapter
5. Software AP function.
Model: GWF-3S5T
Ralink RT5370 (DC/DC) MAC/BBP
Main Features:
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
Peak rate 54Mbps, Peak throughput 27Mbps
Power management
Certification
Wi-Fi Certification: 802.11 b/g, WPA, WPA2, WMM, WMM-PS
WHQL, Cisco CCX, USB-IF
Hardware
Chipset: Ralink RT5370
Host interface: USB2.0/1.1 type A (4 pin header)
LEDs; Link/Acticity
RF
Antenna: Detachable RP-SMA 2dBi or 5dBi antenna
Frequency: 2412~2483.5 MHz, ISM band
Transmit Power: 802.11b: 17+/-1.5dBm; 802.11g: 14+/-1.5dBm;
Receive Sensitivity: 802.11b: -84dBm@11Mbps; 802.11g: -68dBm@54Mbps
Software
Operation System: Windows CE/2000/XP/Vista/7; Linux; Mac OS X
Security: WEP 64/128, WPA, WPA2, 802.1x, Cisco CCS V1.0, 2.0 and V3.0 Compliant
Operation Conditions
Voltage Range: DC 5.0V ± 5%
Operating Temperature: 0° C - 50° C
Storage Temperature: -20° C - 70° C
Operating Humility: RH 95% (Non-Condensing)
Storage Humidity: RH 95% (Non-Condensing)
