| Prod Model: |

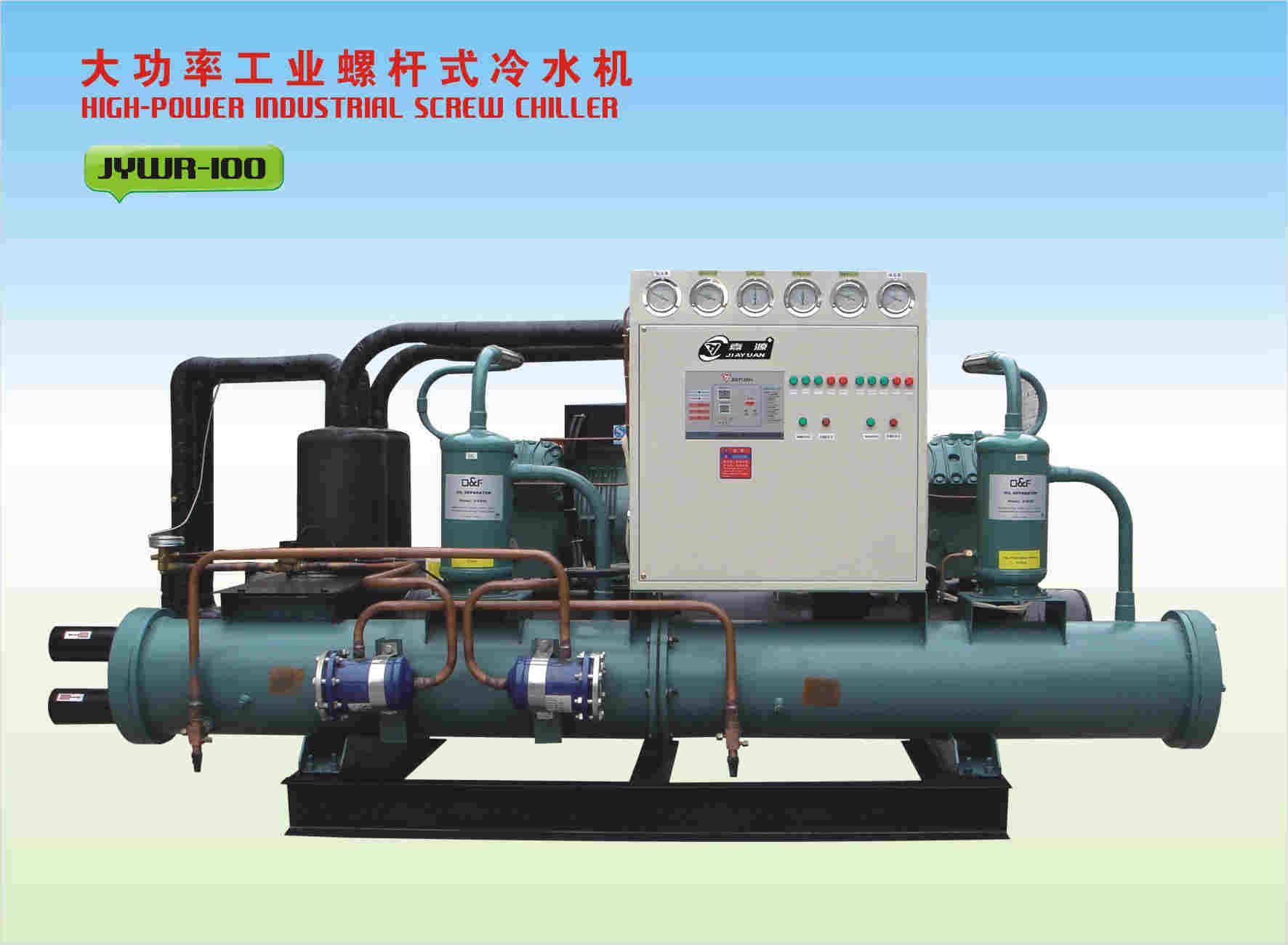

JYWR-100 |
| Type: |
Water-Cooled |
| Certification: |
CE |
| Condition: |
New |
Product Description
Features
1.Micro--processing control ,easy for operation.
2.Unique open reservoir tank made of stainless steel,easy cleaning & maintenance.
3.Pipeline well -arranged to save energy.
4.Installed with pricise electronic thermostat ,accurately maintains temperature within 3 ºC-5ºC.
5.Installed with current overload protector,high & low - pressure switch,electronic timer delay,fault display system.
6.Screen liquid crystal display of chill water outlet & inlet with temperatures setting(Options avaliable)
7.Industrial designed ,elegant and ergonomic.
Specification
| Model | Unit | JYWR-30 | JYWR-40 | JYWR-50 | JYWR-60 | JYWR-80 | JYWR-100 | JYWR-120 | JYWR-160 |
| Refrigeration capacity | Kw | 88 | 118 | 152 | 172 | 230 | 300 | 350 | 480 |
| Compressor input power | Kw | 22 | 30 | 37.5 | 45 | 58 | 75 | 90 | 120 |
| Compressor rated power | Hp | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 160 |
| Evaporator Type | pipe coil evaporator | shell evaporator | pipe coil evaporator | shell evaporator | shell evaporator | shell evaporator | shell evaporator | shell evaporator | shell evaporator |
| Evaporator pipe diameter | Inch | 2-1/2 | 3 | 3 | 3 | 3 | 4 | 4 | 5 |
| Condenser type | shell evaporator | shell evaporator | shell evaporator | shell evaporator | shell evaporator | shell evaporator | shell evaporator | shell evaporator | shell evaporator |
| Condenser pipe diameter | Inch | 2-1/2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Condenser Chill water flow rate | L/min | 330 | 480 | 600 | 700 | 1000 | 1200 | 1400 | 2000 |
| Dimensions | mm | 1700x850x1350 | 1700x850x1350 | 2200x850x1400 | 2200x850x1400 | 2200x850x1400 | 2500x950x1500 | 3500x1150x1700 | 3600x1160x1800 |
