| Prod Model: |
EYDFA-55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| EDFA: |
1u Housing |
| Dual Auto Cooling Fan: |
Support |
| Working Wavelength: |
1545~1555nm |
| Total Output Power: |
13-26dBm |
| Output Port: |
1, 2, 4 Option |
| Pump Lase: |
Made by Jdsu or Fitel |
| Optical Input Power(dBm): |
-5~+10 |
| Typical Optical Input Power: |
+3dBm |
| Pump Laser: |
Jdsu or Fitel or Customer's Request |
| 19inch: |
Support |
| Type: |
Fiber Amplifier |
| Wiring Devices: |
DDF |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

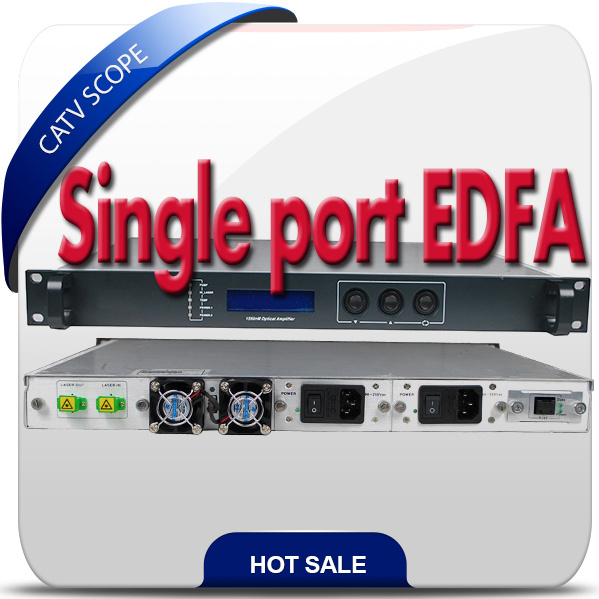

High Power Optic Signal Booster/Amplifier
Summary
EA55 Series 1550nm Optic signal booster is embedded in 19inch 1U standard high stable platform. The Platform can accommodate 2-Plug in Power supplies (Option) and 1-SNMP Network management card (Option). Employing the high performance Pump laser (JDSU, Fitel Etc.),Erbium-doped fiber, and high stabile WDM and isolation ensure that produces high stabile and reliable Optic signal. Built-in Dual automatically cooling fans make it works in the Extreme environment.
Feature
1.Working wavelength: 1545~1555nm
2.Total output power: 13-26dBm
3.Typical optical input power: +3dBm
4.Output Port: 1, 2, 4 Option
5.In/out Optic interface: SC/APC, FC/APC or specified
6.Pump laser Made by JDSU or Fitel
Specification
Wavelength(nm) |
1545~1555 |
Optical input power(dBm) |
-5~+10 |
Nominal Opitcal input power(dBm) |
3 |
NF(dB)(+3dBm,@1550nm) |
3.8~5.5 |
Gain Flatness(dB) |
<±0.3 |
Optical output power stability(dB) |
<±0.5 |
Polarization Sensitivity(dB) |
<0.2 |
Polarization mode dispersion(ps) |
<0.5 |
Optical connector(IN/OUT) |
FC/APC |
Working pump quantity(N) |
1 to 3 |
Outputs |
1,2,3,4 |
Saturated total output power(dBm) |
13 to 26 |
Power source(Vac) |
115~265 |
Power source(Vdc) |
48 |
Working temperature(°C) |
0~50 |
Size(mm) |
482.6*387*44 |
