Product Description

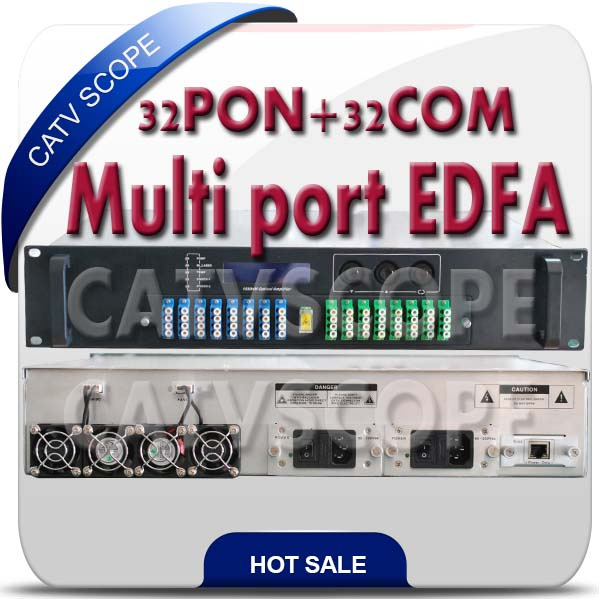

High Power Multiport Optic Amplifier EDFA/
MultiPort Erbium Doped Amplifiers
The High Power Multiport Optic Amplifier mEA series adopt EDFA and YDFA Technologies, Gain:13-26dB employs the EDFA technology, Gain more than 26dB uses the YDFA. This series' Max.high power is up to +37dBm (Total Power) and up to 64-Output ports, Gain: 19dBm output Per Ports (32 Ports). This series are able to conveniently be deployed in Xpon network to deliver the Video (Analog, QAM) business to achieve the tri-play network, because inside of this Housing equipped WDM multiplexers for each output Ports, they redirect the 1310/1490nm wavelengths, which carry the Data package from OLT, and then add the 1550nm wavelength together output through each output ports.
This Multiport High Power Optic Amplifier mEAemploys Multimode Pump laser, high Performance WDM, Isolator, Er/Eb double-clad, large-core fiber technologies to achieve the high output power in conjunction with low cost. The automatically cooling system offers a best working environment; ensure this whole unit breezily operates without interrupt.
Features
Built-in WDM for Xpon
Up to +38dBm Total Output Power
NF of 4.5dB
Supports SNMP
1RU and 2RU
Applications
Video+XPON
RFoG
CMTS
Deep Fiber HFC
For RUS/USDA PROJECTS
Specificaitons
Electrical specifications |
|
Number of Ports |
4,8,10,12,14,16 and 32 |
Type of output interfaces |
SC/A PC (6,8,10,12,14,16,32) |
Output Power Per Ports, dBm |
16 to 21 (Non-CWDM) @ 32Ports
15 to 20 (Built-in CWDM) @ 32Ports |
Port to Port Variation, dB |
0.5 |
Operating Wavelength range, nm |
1540 to 1560 |
Composite Input Power Range, dBm |
-5 minimum, 10 maximum |
Noise Figure (Pin=0dBm), dB |
4.5 to 5 |
PDL, dB |
0.3 |
PMD, ps/nm |
0.3 |
PDG, dB |
0.4 |
Isolation between Input and Output, dB |
30 |
PPL(Pump Power Leakage), dBm |
-30 |
Return Loss, dB |
55 |
Power supply |
90 to 265 (220VAC)
30 to 72 (-48VDC) |
Power Consumption, W |
50 to 150 |
|
|
|
|
Mechanical Specifications |
|
Dimensions, inch |
19x15x1.75
19x20x3.5 |
|
|
Environmental Specifications |
|
Working temp,°C |
0 to 65 |
Relative Humidity, % |
5-95 |
Storage temp,°C |
-40 to 80 |
